RX400h · Service Manual BODY

Home › BODY › SEAT › FRONT POWER SEAT CONTROL SYSTEM

PARTS LOCATION

Parts location

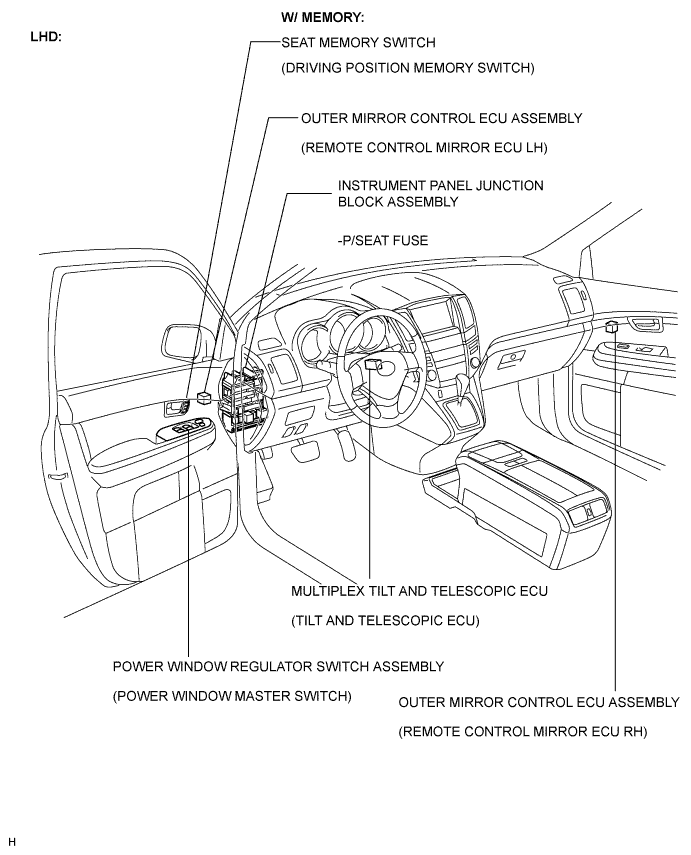

B113024E01

1 / 3

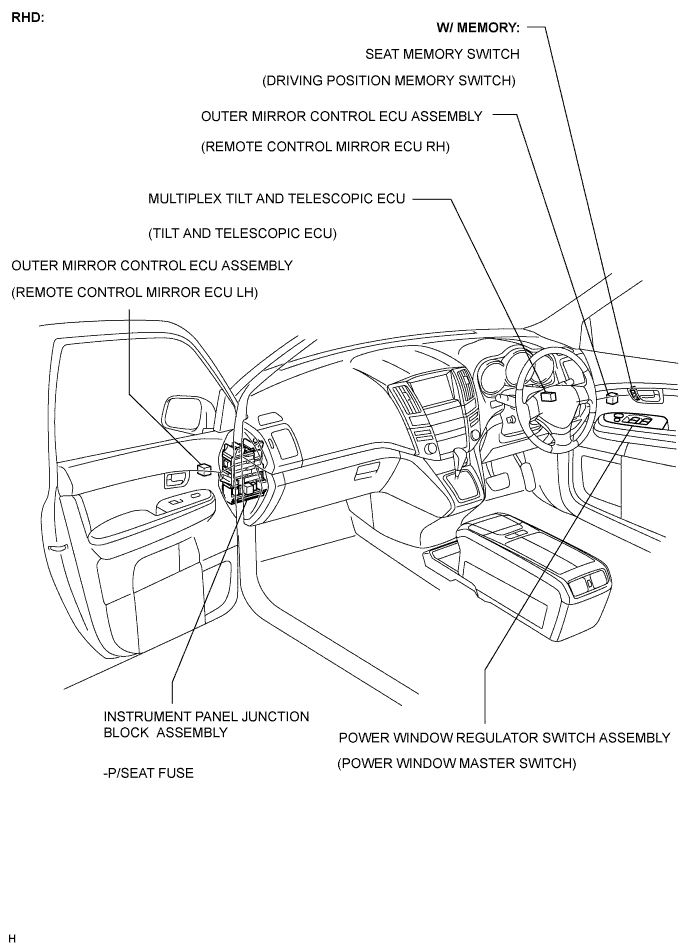

B111889E01

2 / 3

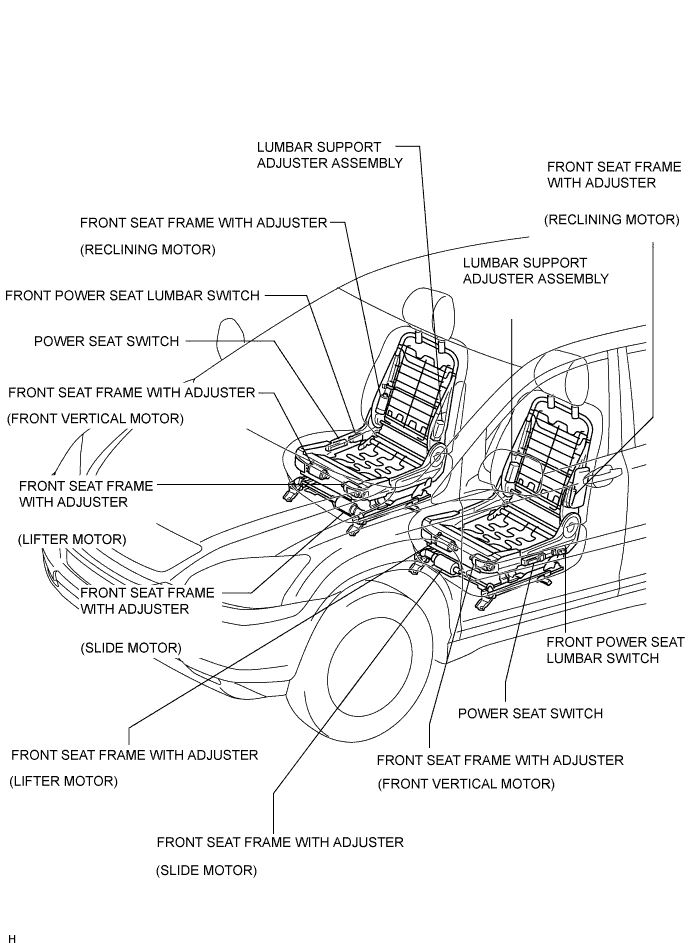

B112269E02

3 / 3

← PRECAUTION SYSTEM DIAGRAM →
