RX400h · Service Manual BODY

Home › BODY › SEAT › SEAT HEATER SYSTEM

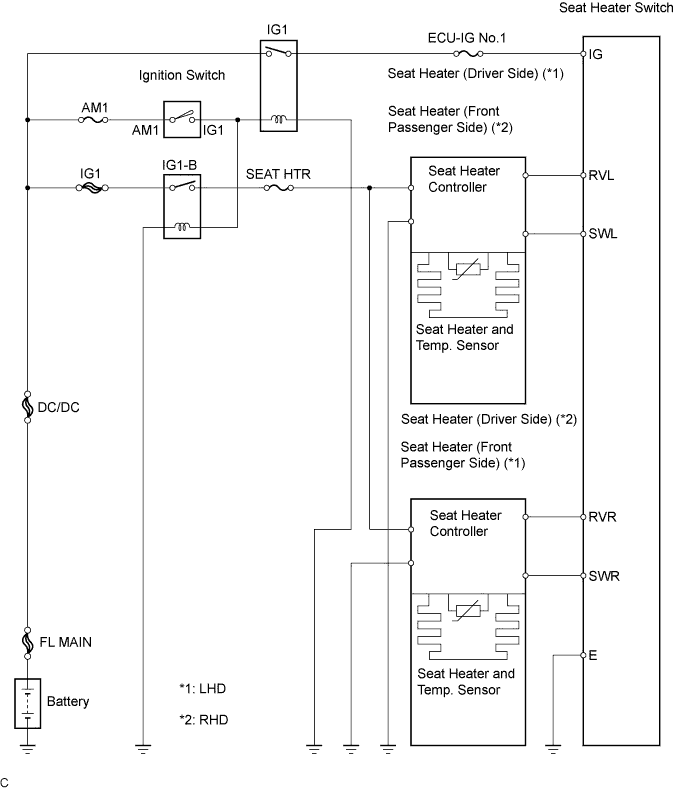

SYSTEM DIAGRAM

System information

B111875E02
