RX400h · Service Manual BODY ELECTRICAL

REMOVAL

Removal / installation


1. REMOVE FRONT BUMPER STAY CENTER

  1. B115757
    Remove the 5 clips and front bumper stay center.


2. REMOVE FRONT BUMPER ASSEMBLY

  1. B110043
    Using a hexagon 4 mm wrench, remove the hexagon screw.

  1. B115758E01
    Put protective tape under the front fender.

  1. Remove the 6 screws and 2 bolts.

  1. Release the 6 claws and front bumper assembly.

  1. w/ headlight washer:

    1. Remove the washer hose clip.

  1. Disconnect the fog light connectors.


3. REMOVE FOG LIGHT PROTECTOR

  1. B110042E01
    Release the 2 claws and fog light protector LH.


4. REMOVE FOG LIGHT ASSEMBLY

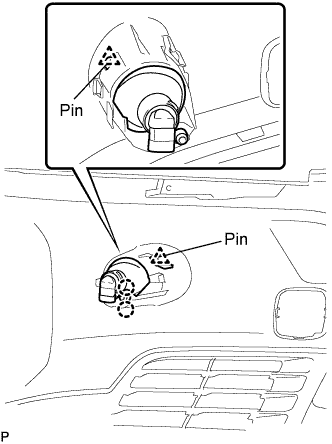

  1. E108649E01
    Disengage the 2 claws and 2 pins and remove the fog light assembly.
