Mirror Motor Circuit
Circuit diagnosis
DESCRIPTION
Mirror control switch and memorized mirror position signals (from the position control ECU & switch (seat ECU)) are sent to the mirror control ECU. The mirror control ECU moves the selected mirror UP, DOWN, LEFT and RIGHT in response to the input.- HINT:
- The power mirror control system is a part of the multiplex communication system. This system features shared communication wiring that reduces the wiring complexity of the communication lines. The first step in any repair is to confirm the proper operation of the communication system. Proceed with troubleshooting after the communication has been verified (See the Multiplex Communication System).

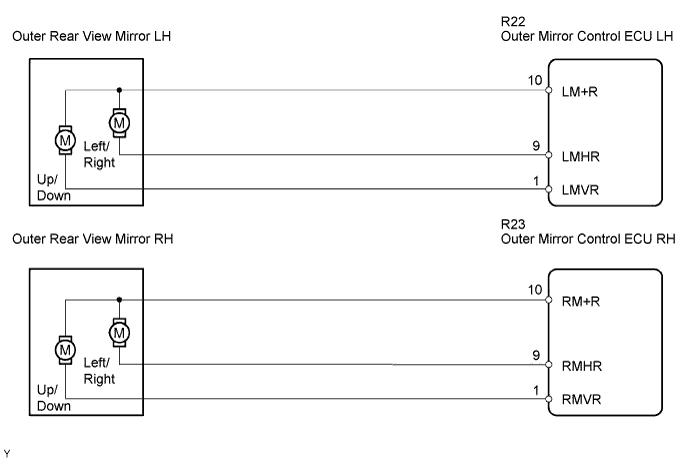

WIRING DIAGRAM
INSPECTION PROCEDURE
| 1. INSPECT OUTER REAR VIEW MIRROR |
Outer rear view mirror LH:Disconnect the R22 connector.
Apply battery voltage and check operation of the mirror face.
- Standard:
Measurement Condition
Mirror Operation
Battery positive (+) → R22-1 (LMVR)
Battery negative (-) → R22-10 (LM+R)
Turns upward (A)
Battery positive (+) → R22-10 (LM+R)
Battery negative (-) → R22-1 (LMVR)
Turns downward (B)
Battery positive (+) → R22-9 (LMHR)
Battery negative (-) → R22-10 (LM+R)
Turns left (C)
Battery positive (+) → R22-10 (LM+R)
Battery negative (-) → R22-9 (LMHR)
Turns right (D)
Outer rear view mirror RH:Disconnect the R23 connector.
Apply battery voltage and check operation of the mirror face.
- Standard:
Measurement Condition
Mirror Operation
Battery positive (+) → R23-1 (RMVR)
Battery negative (-) → R23-10 (RM+R)
Turns upward (A)
Battery positive (+) → R23-10 (RM+R)
Battery negative (-) → R23-1 (RMVR)
Turns downward (B)
Battery positive (+) → R23-9 (RMHR)
Battery negative (-) → R23-10 (RM+R)
Turns left (C)
Battery positive (+) → R23-10 (RM+R)
Battery negative (-) → R23-9 (RMHR)
Turns right (D)
|
|
||||
| OK | ||
 |
||
| ||
