B1209 Outer mirror control ECU LH Communication stops

DESCRIPTION

1. This DTC is detected when communication between the outer mirror control ECU LH (Driver Side Outer Mirror) and multiplex network gateway ECU stops for more than 10 seconds.


DTC No.	DTC Detection Condition	Trouble Area
B1209	Outer mirror control ECU LH Communication stops	Outer mirror control ECU LH Wire harness

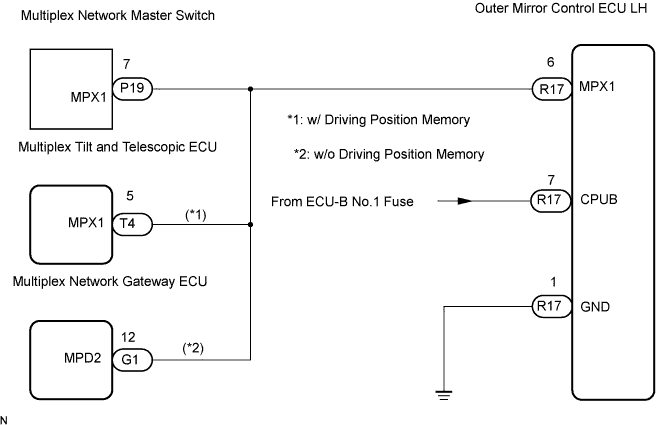

WIRING DIAGRAM

INSPECTION PROCEDURE

HINT:

When "+B of GND short malfunction of communication bus" DTCs (B1214 and B1215) are detected at the same time as "communication stop" DTC B1209, repair the "+B or GND short malfunction of communication bus" DTCs first.

1. INSPECT FUSE (ECU-B No.1)

1. Remove the ECU-B No.1 fuse from the fusible link block.

2. Measure the resistance of the fuse.

   Standard resistance:

   Below 1 Ω


OK	REPLACE FUSE

NG

2. CHECK HARNESS AND CONNECTOR (OUTER MIRROR CONTROL ECU - BATTERY AND BODY GROUND)

1. Disconnect the R17 ECU connector.

2. Measure the voltage of the wire harness side connector.

   Standard voltage:

   Tester Connection	Specified Connection
   R17-7 (CPUB) - Body ground	10 to 14 V

3. Measure the resistance of the wire harness side connector.

   Standard resistance:

   Tester Connection	Specified Connection
   R17-1 (GND) - Body ground	Below 1 Ω

NG	REPAIR OR REPLACE HARNESS OR CONNECTOR

OK

3. CHECK RESISTANCE OF COMMUNICATION LINE

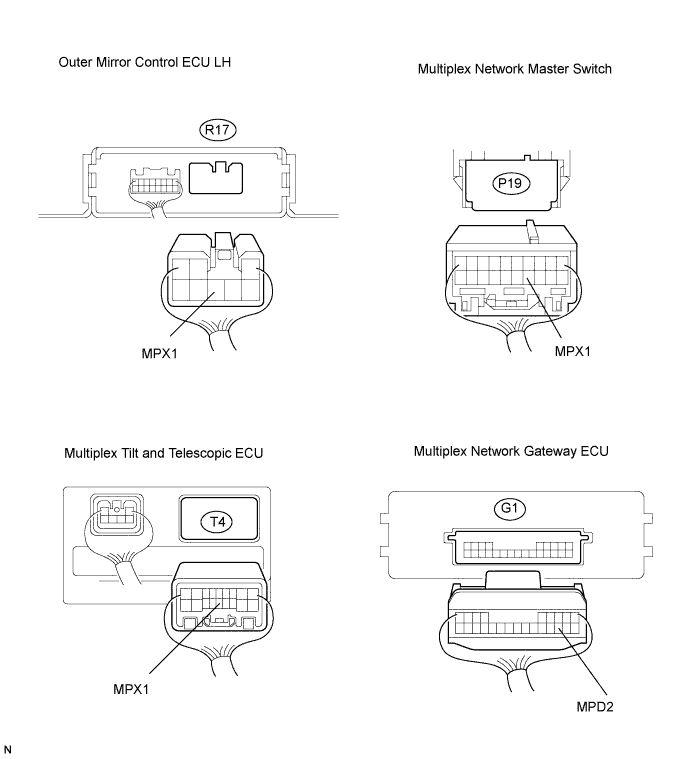

1. Disconnect the P19 and T4 ECU connectors (w/ Driving position memory).

2. Disconnect the P19 and G1 ECU connectors (w/o Driving position memory).


3. Measure the resistance of the wire harness side connectors.


   Standard resistance:

   Tester Connection	Specified Condition
   R17-6 (MPX1) - P19-7 (MPX1)	Below 1 Ω
   R17-6 (MPX1) - T4-5 (MPX1) (*1)	Below 1 Ω
   R17-6 (MPX1) - G1-12 (MPD2) (*2)	Below 1 Ω

   *1: w/ Driving Position Memory*2: w/o Driving Position Memory

NG	REPAIR OR REPLACE HARNESS OR CONNECTOR

OK
REPLACE OUTER MIRROR CONTROL ECU
