RX400h · Service Manual BODY ELECTRICAL

Home › BODY ELECTRICAL › AUDIO / VISUAL › AUDIO AND VISUAL SYSTEM

PARTS LOCATION

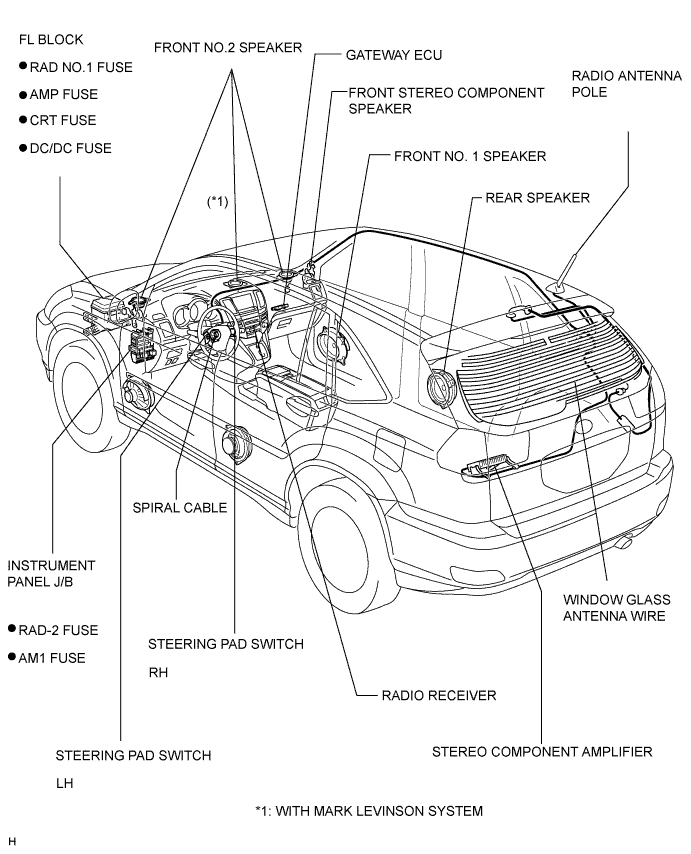

Parts location

E110924E01

1 / 1
