REPLACEMENT
Removal / installation
| 1. REMOVE FRONT WHEEL |
| 2. SEPARATE FRONT DISC BRAKE CALIPER ASSEMBLY |
Remove the 2 bolts, and separate the brake caliper assembly.
- NOTICE:
- Use a wire or an equivalent to keep the brake caliper from hanging down by the flexible hose.
| 3. REMOVE FRONT DISC |
 |
- HINT:
- Put matchmarks on the disc and the axle hub.
| 4. REMOVE FRONT AXLE HUB BOLT |
Temporarily install the 2 nuts and washers to the front axle hub bolt as shown in the illustration.

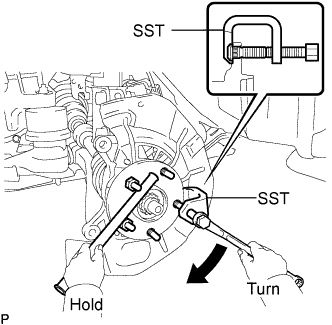

Using SST and a brass bar or an equivalent to hold the front axle, remove the front axle hub bolt.
- SST
- 09628-10011
| 5. INSTALL FRONT AXLE HUB BOLT |
Install a washer and nut to a new front axle hub bolt as shown in the illustration.
Using a brass bar to hold the front axle, install the hub bolt by torquing the nut.
| 6. INSTALL FRONT DISC |
Align the matchmarks and install the front disc.
- NOTICE:
- When replacing the disc with a new one, select the installation position where the front disc has the minimum runout.
| 7. INSTALL FRONT DISC BRAKE CALIPER ASSEMBLY |
Install the front disc brake caliper assembly with the 2 bolts to the steering knuckle.
- Torque:
- 104 N*m{ 1,060 kgf*cm , 77 ft.*lbf }
| 8. INSTALL FRONT WHEEL |
- Torque:
- 103 N*m{ 1,050 kgf*cm , 76 ft.*lbf }
