RX400h · Service Manual ENGINE

Home › ENGINE › 3MZ-FE IGNITION › IGNITION SYSTEM

SYSTEM DIAGRAM

System information

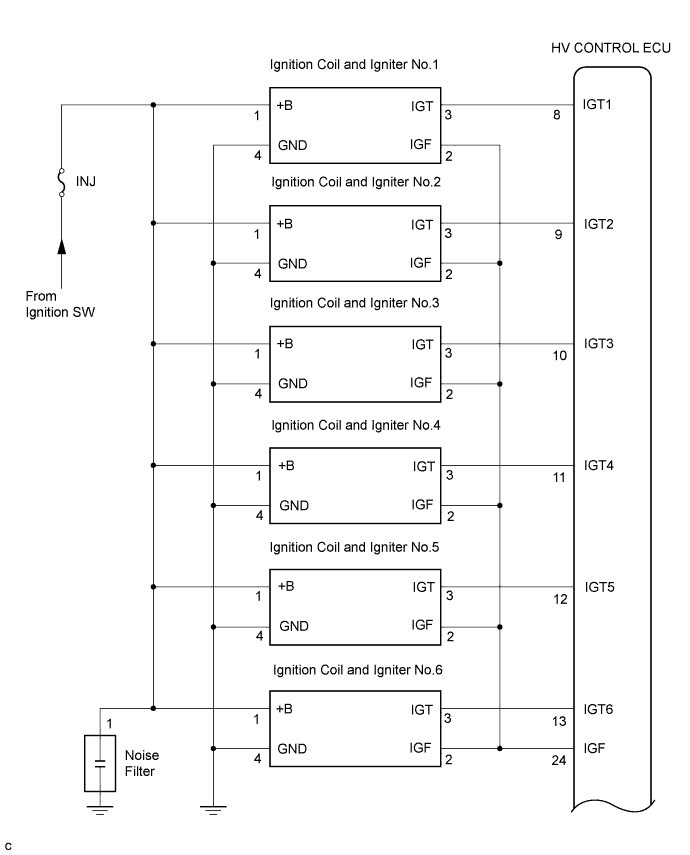

A111970E02

A111971E01

← PARTS LOCATION ON-VEHICLE INSPECTION →
