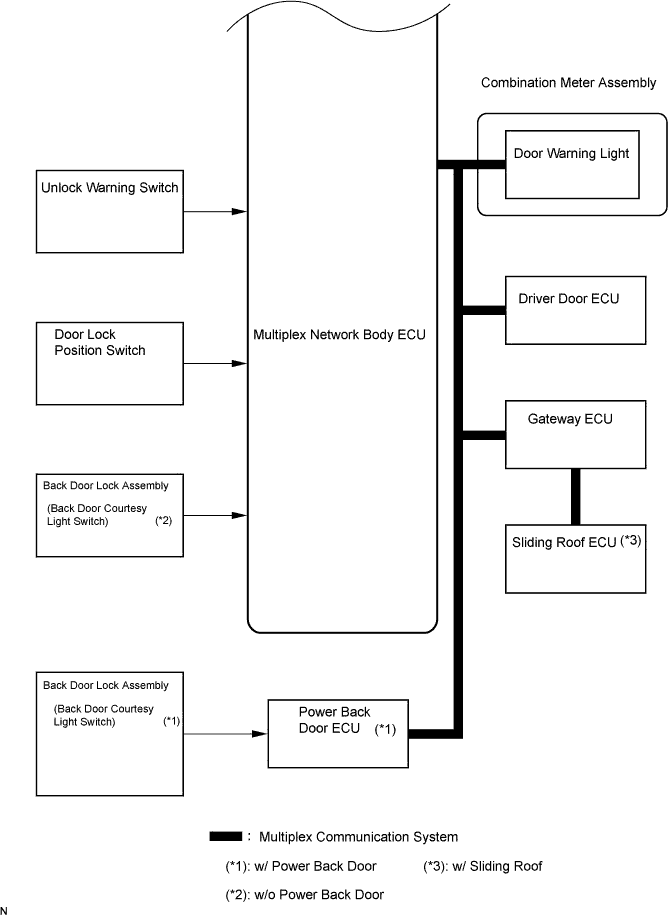

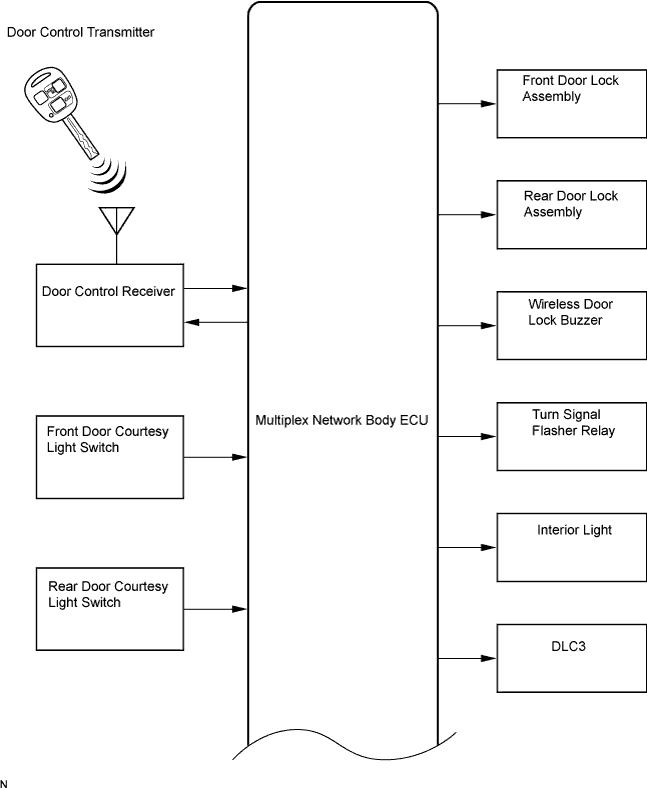

SYSTEM DIAGRAM
System information
| Transmitting ECU (Transmitter) |
Receiving ECU |
Signals |
Communication Method |
| Multiplex network body ECU |
Driver door ECU |
Power window open/close signal |
Multiplex communication system |
| Multiplex network body ECU |
Sliding roof ECU |
Sliding roof open/close signal |
Multiplex communication system |
| Multiplex network body ECU |
Power back door ECU |
Power back door open/close signal |
Multiplex communication system |
| Multiplex network body ECU |
Combination meter |
Door warning light ON signal |
Multiplex communication system |
