RX400h · Service Manual ENGINE

Home › ENGINE › 3MZ-FE EMISSION CONTROL › EMISSION CONTROL SYSTEM

SYSTEM DIAGRAM

System information

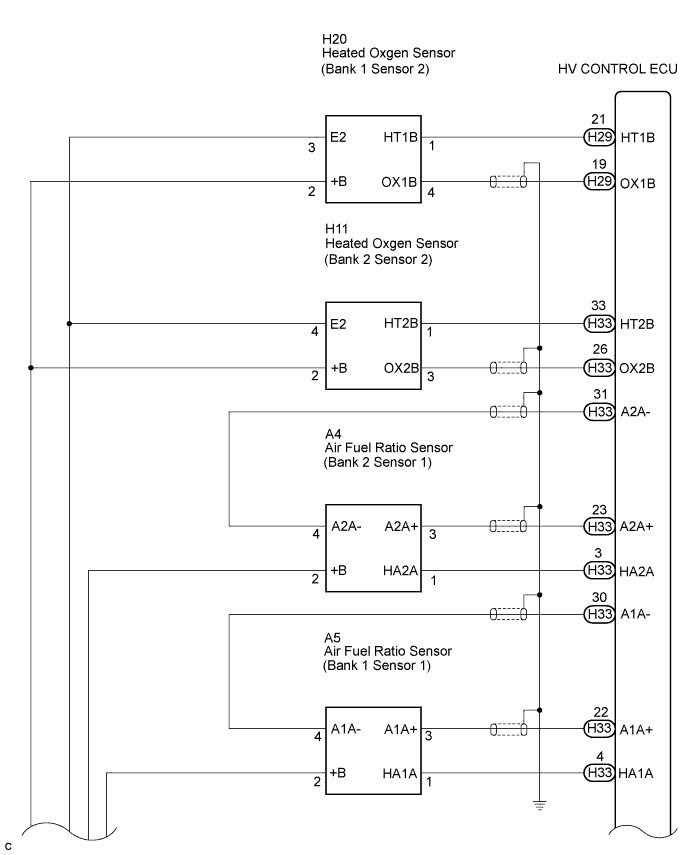

A112878E02

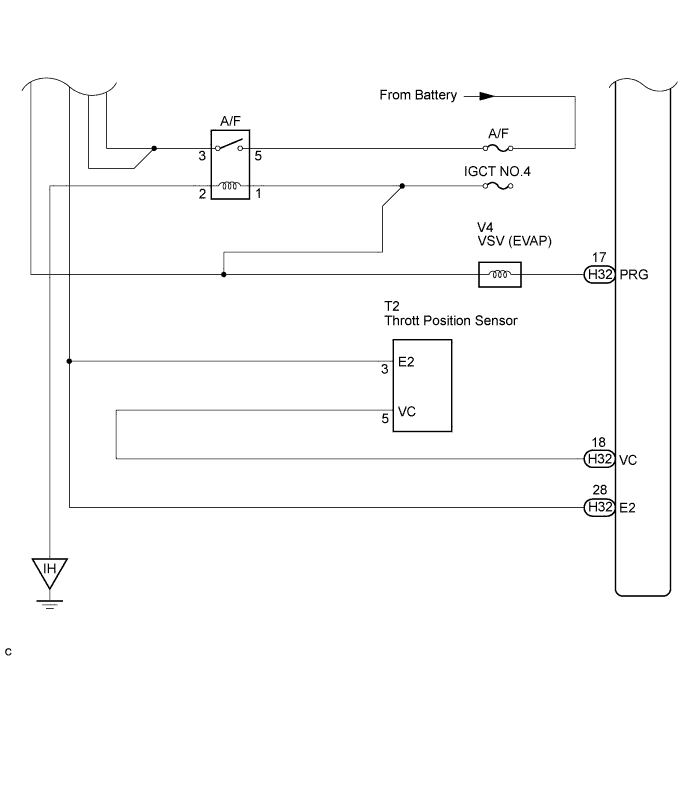

A116107E01

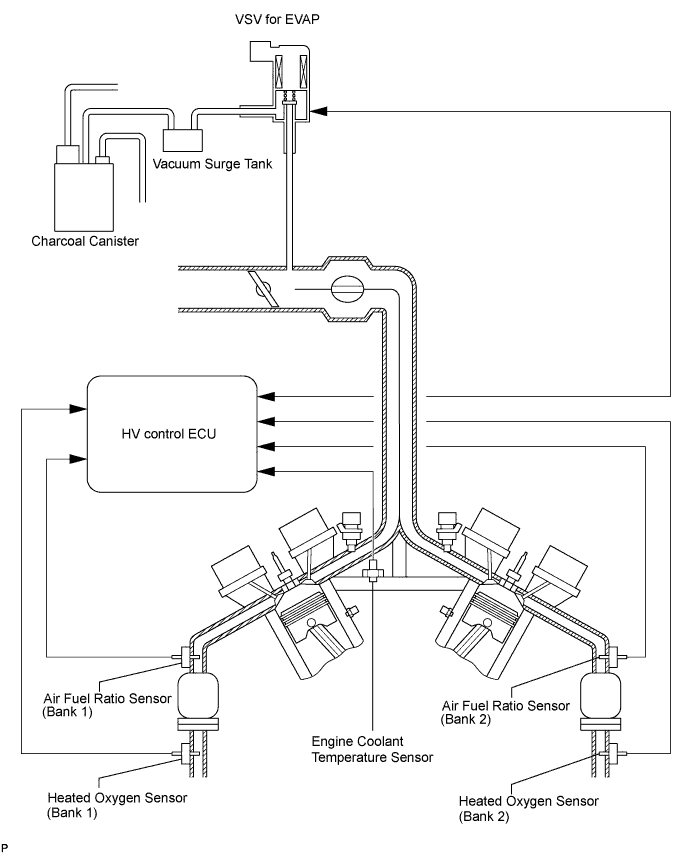

A115752E01
