INSTALLATION
Removal / installation

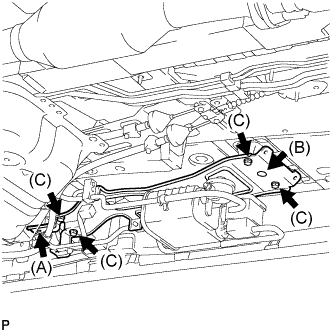

| 1. INSTALL CHARCOAL CANISTER ASSEMBLY |
Connect the clamp to the charcoal canister bracket (A).
Install the bracket clip (B).
Install the charcoal canister assembly with the 4 bolts (C).
- Torque:
- 7.8 N*m{ 80 kgf*cm , 69 in.*lbf }
Install the tube to the tube clamp (D).
Connect the charcoal canister outlet hose No.1 to the charcoal canister assembly (E).
Connect the charcoal canister hose (F).
| 2. CONNECT FUEL TANK TO CANISTER TUBE SUB-ASSEMBLY |
Install the fuel tank to canister tube sub-assembly to the clamp.
Connect the fuel tank to canister tube sub-assembly.
Push the fuel tube connector into the pipe until the fuel tube connector makes a "click" sound.
- NOTICE:
- Check for any damage or foreign objects on the connected part.
- After connecting, check that the fuel tube connector and the pipe are securely connected by trying to pull them apart.
- Check for any damage or foreign objects on the connected part.
| 3. INSTALL CHARCOAL CANISTER PROTECTOR |
Install the charcoal canister protector with the 3 bolts.
- Torque:
- 5.4 N*m{ 55 kgf*cm , 48 in.*lbf }
