RX400h · Service Manual ENGINE

REMOVAL

Removal / installation


1. REMOVE CHARCOAL CANISTER PROTECTOR

  1. A112347
    Remove the 3 bolts and charcoal canister protector.


2. DISCONNECT FUEL TANK TO CANISTER TUBE SUB-ASSEMBLY

  1. A108183E01
    Disconnect the fuel tank to canister tube sub-assembly from the charcoal canister assembly.

    1. Pinch the tube connector and then pull out the fuel tank to canister tube sub-assembly.

      NOTICE:
      1. Check for dirt or other foreign objects around the connector before this operation. Clean the connector as necessary.
      2. Be careful not to allow mud or foreign matter to scratch or come into contact with the pipe and connector that are sealed by an O-ring.
      3. Do not use any tools for this operation.
      4. Do not damage the disconnected pipe and connector. Prevent intrusion of foreign objects by covering the pipe and connector with a plastic bag.
      5. When the pipe and connector are stuck, push and pull the connector to release. Pull out the connector carefully.

  1. A112348
    Separate the fuel tank to canister tube from the clamp.


3. REMOVE CHARCOAL CANISTER ASSEMBLY

  1. A115531E01
    Disconnect the charcoal canister hose (A).

  1. Disconnect the charcoal canister outlet hose No.1 from the charcoal canister assembly (B).

  1. Separate the tube from the tube clamp (C).

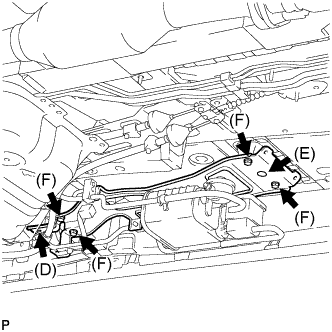

  1. A115532E01
    Disconnect the clamp from the charcoal canister bracket (D).

  1. Remove the bracket clip (E).

  1. Remove the 4 bolts and charcoal canister assembly (F).
