RX400h · Service Manual BODY

REMOVAL

Removal / installation


1. REMOVE BACK DOOR TRIM PANEL ASSEMBLY UPPER

  1. B109548E01
    Disengage the 10 clips and remove the back door trim panel assembly upper.


2. REMOVE BACK DOOR GARNISH

  1. Disengage the back door opener switch connector.

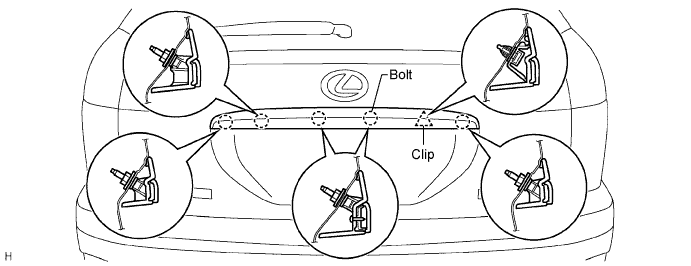

  1. Remove the 5 bolts, clip and garnish.

    B068610E01


3. REMOVE BACK DOOR OPENER SWITCH ASSEMBLY

  1. B112801
    Remove the 2 screws and back door opener switch assembly.
