RX400h · Service Manual BODY

REMOVAL

Removal / installation


1. REMOVE DECK FLOOR BOX REAR

  1. B110023
    Using a clip remover, remove the 2 clips and deck floor box rear.


2. REMOVE BACK DOOR WEATHERSTRIP

3. REMOVE REAR FLOOR FINISH PLATE

  1. B111780
    Using a clip remover, remove the 2 clips.

  1. Disengage the 2 claws and 6 clips, and remove the rear floor finish plate.


4. REMOVE REAR BUMPER STOPPER UPPER

  1. B109338
    Remove the 2 screws.

  1. Using a screwdriver, remove the rear bumper stopper upper.


5. REMOVE REAR BUMPER ASSEMBLY

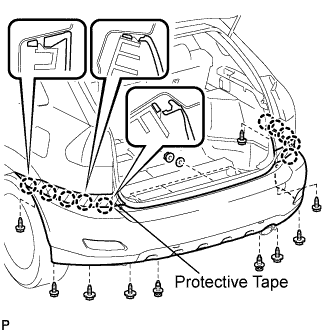

  1. B109327E01
    Put protective tape under the quarter panel.

  1. Remove the 2 clips and 4 nuts.

  1. Remove the 8 screws.

  1. Release the 10 claws and the rear bumper assembly.

  1. Disconnect the rear reflector connectors.
