RX400h · Service Manual BODY ELECTRICAL

INSTALLATION

Removal / installation


1. INSTALL FRONT NO.1 SPEAKER

  1. E111303
    Install the front No.1 speaker with the 4 bolts.

  1. Connect the connector.


2. INSTALL FRONT DOOR TRIM BOARD SUB-ASSEMBLY

  1. Connect each connector and the cables.

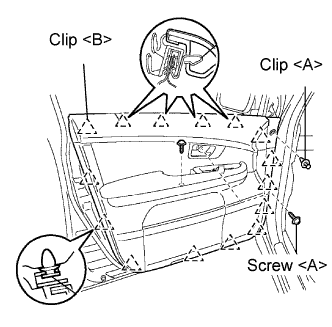

  1. B112314E02
    Install the front door trim board sub-assembly with the 15 clips <B>.

  1. Install the 2 screws and the clip <A>.

    Torque:
    screw <A>:
    3.5 N*m{ 36 kgf*cm , 31 in.*lbf }


3. INSTALL FRONT DOOR LOWER FRAME BRACKET GARNISH

4. INSTALL DOOR ARMREST COVER

5. INSTALL POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY

6. INSTALL FRONT DOOR INSIDE HANDLE BEZEL PLUG
