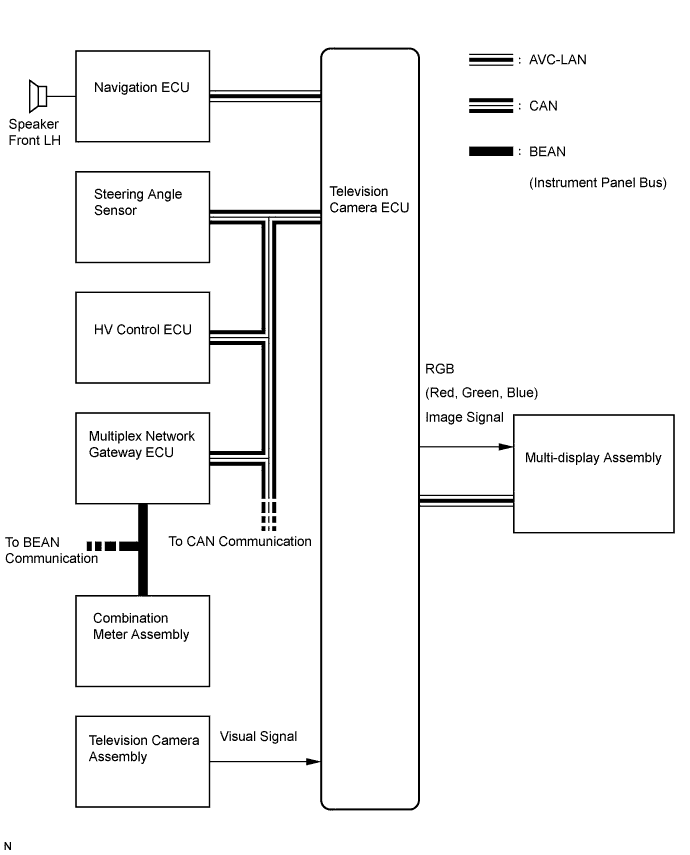

SYSTEM DIAGRAM
System information
| Transmitting ECU (transmitter) |
Receiving ECU |
Signals |
Communication method |
| Navigation ECU |
Television Camera ECU |
Vehicle posture signal |
AVC-LAN |
| Steering angle sensor |
Television Camera ECU |
Steering angle signal |
CAN |
| Combination meter |
Television Camera ECU |
Vehicle speed signal |
BEAN/CAN |
