ECU Power Source Circuit
Circuit diagnosis
DESCRIPTION
This circuit provides power for multiplex network body ECU operation.WIRING DIAGRAM


INSPECTION PROCEDURE
| 1. INSPECT FUSE (ECU-B NO.1) |
Remove the ECU-B NO.1 fuse from the fusible link block.
Measure the resistance.
- Resistance:
- Below 1 Ω
|
|
||||
| OK | |
| 2. CHECK INSTRUMENT PANEL J/B ASSEMBLY (MULTIPLEX NETWORK BODY ECU) (POWER SOURCE) |
Install the ECU-B NO.1 fuse to the fusible link block.
Disconnect the 1D J/B connector.

Measure the voltage according to the value(s) in the table below.
- Voltage:
Symbol (Tester Connection)
Specified Condition
BECU (1D-10) - Body ground
10 to 14 V
|
|
||||
| OK | |
| 3. CHECK HARNESS AND CONNECTOR (INSTRUMENT PANEL J/B - BODY GROUND) |

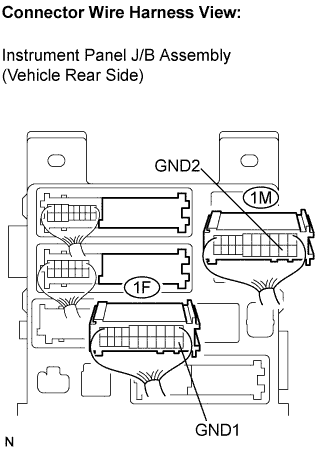

Disconnect the 1F and 1M J/B connectors.

Measure the resistance according to the value(s) in the table below.
- Resistance:
Symbol (Tester Connection)
Specified Condition
GND1 (1F-10) - Body ground
Below 1 Ω
GND2 (1M-9) - Body ground
|
|
||||
| OK | ||
| ||
