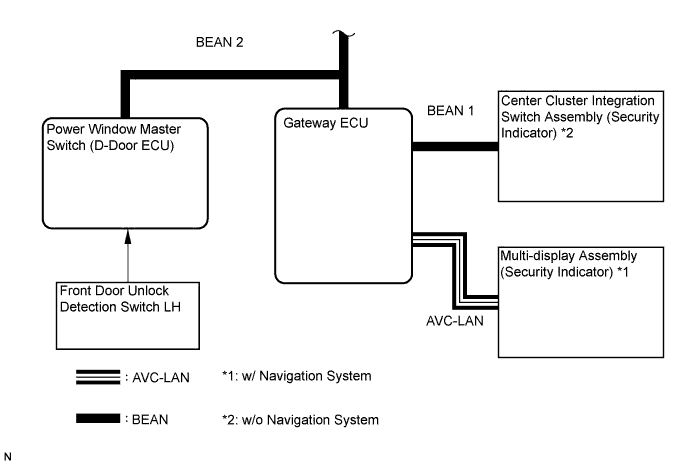

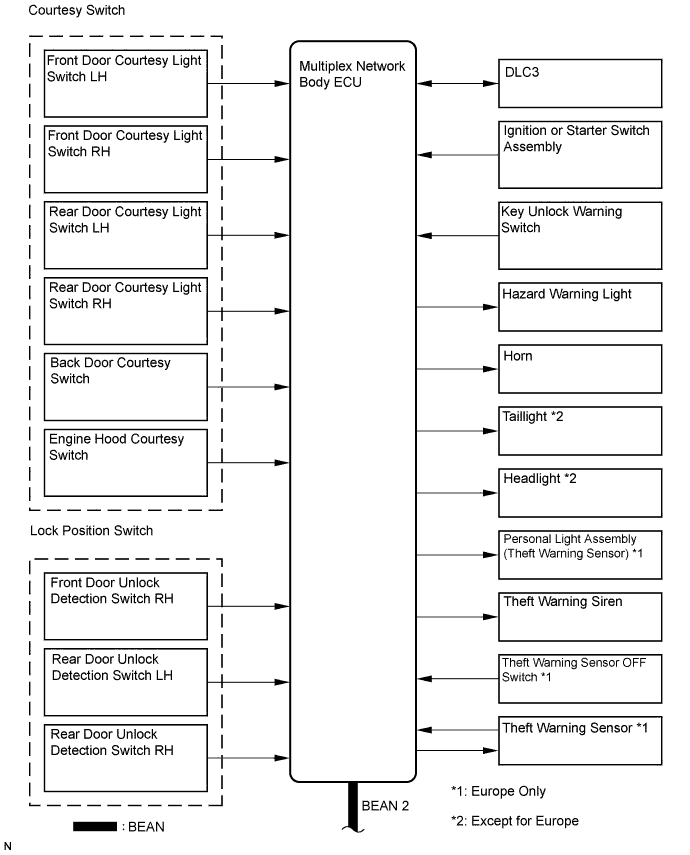

SYSTEM DIAGRAM
System information
| Receiver |
Transmitter (ECU) |
Signal |
Line |
| Center Cluster Integration Switch Assembly |
Multiplex Network Body ECU |
Security indicator operation signal |
BEAN 1 |
| Multi-display Assembly |
Multiplex Network Body ECU |
Security indicator operation signal |
AVC-LAN |
| Multiplex Network Body ECU |
Power Window Master Switch (D-Door ECU) |
Front door lock signal |
BEAN 2 |
