ON-VEHICLE INSPECTION
Inspection
| INSPECT OIL PRESSURE IN OIL PUMP |
- NOTICE:
- Do the test at normal operating oil temperature 50 to 80°C (122 to 176°F).
Lift up the vehicle.

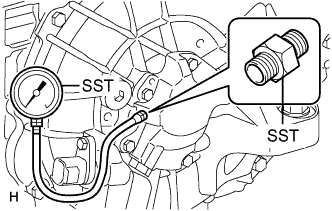

Remove the fluid pump cover plug and install SST.
- SST
- 09992-00095
(09992-00112, 09992-00271)
Connect the intelligent tester to the DLC3.
Turn the ignition switch to the ON position.
Select the inspection mode. (Click here)
On the tester, enter the following menus: Powertrain / Hybrid Control / Active Test / Inspection Mod 1.
Turn the ignition switch to the ON position with the brake pedal depressed to start the engine (start the hybrid system).
Measure the oil pressure.
- Oil pressure:
- 9.8 kPa (0.1 kgf/cm2, 1.4 psi) or more
- NOTICE:
- Be sure to cancel the inspection mode immediately after the oil pressure check is completed. (Click here)
Install a new O-ring and fluid pump cover plug.
- Torque:
- 8.0 N*m{ 82 kgf*cm , 71 in.*lbf }
