RX400h · Service Manual BODY ELECTRICAL

INSPECTION

Inspection


INSPECT STEERING PAD SWITCH LH

  1. Measure the resistance according to the values in the table below.

    I035645E02

    Standard resistance:
    Tester connection
    		 Condition
    		 Specified condition
    AU1 - EAU
    		 No switch is pushed
    		 Approx. 100 kΩ
    AU1 - EAU
    		 SEEK+ switch: push
    		 Approx. 0 Ω
    AU1 - EAU
    		 SEEK- switch: push
    		 Approx. 0.3 kΩ
    AU1 - EAU
    		 VOL+ switch: push
    		 Approx. 1 kΩ
    AU1 - EAU
    		 VOL- switch: push
    		 Approx. 3.2 kΩ
    AU2 - EAU
    		 No switch is pushed
    		 Approx. 100 kΩ
    AU2 - EAU
    		 MODE switch: push
    		 Approx. 0 Ω

    If the result is not as specified, replace the steering pad switch LH.


INSPECT STEERING PAD SWITCH CABLE SUB-ASSEMBLY

  1. Measure the resistance according to the values in the table below.

    I046006E01

    Standard resistance:
    Tester connection
    		 Condition
    		 Specified condition
    A-1 - B-1
    		 Always
    		 Below 1 Ω
    A-2 - B-2
    		 Always
    		 Below 1 Ω
    A-3 - B-3
    		 Always
    		 Below 1 Ω
    A-4 - B-4
    		 Always
    		 Below 1 Ω
    A-5 - B-5
    		 Always
    		 Below 1 Ω
    A-6 - B-6
    		 Always
    		 Below 1 Ω
    A-7 - B-7
    		 Always
    		 Below 1 Ω
    A-8 - B-8
    		 Always
    		 Below 1 Ω

    If the result is not as specified, replace the steering pad switch cable sub-assembly.

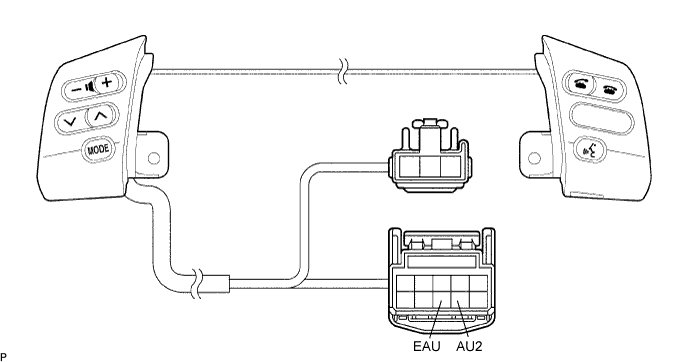

INSPECT STEERING PAD SWITCH RH

  1. Measure the resistance according to the values in the table below.

    I045245E02

    Standard resistance:
    Tester connection
    		 Condition
    		 Specified condition
    AU2 - EAU
    		 No switch is pushed
    		 Approx. 100 kΩ
    AU2 - EAU
    		 VOICE switch: push
    		 Approx. 3.2 kΩ
    AU2 - EAU
    		 ON HOOK switch: push
    		 Approx. 0.3 kΩ
    AU2 - EAU
    		 OFF HOOK switch: push
    		 Approx. 1.0 kΩ

    If the result is not as specified, replace the steering pad switch RH.
