RX400h · Service Manual
HEATER & AIR CONDITIONING SYSTEM
Home
›
HEATER & AIR CONDITIONING SYSTEM
› AIR CONDITIONING › AIR CONDITIONING SYSTEM
PARTS LOCATION

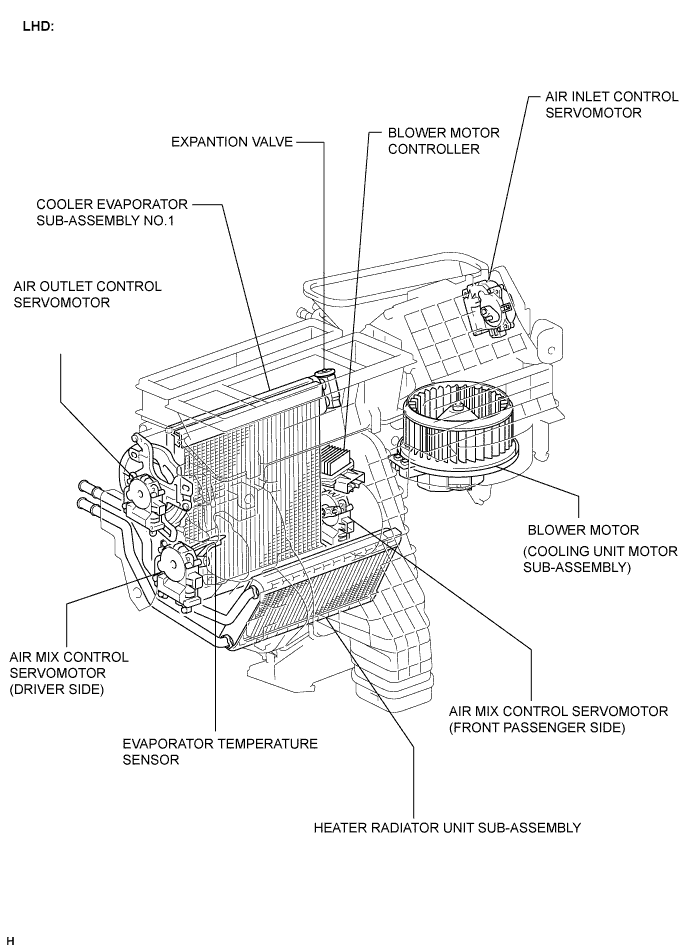

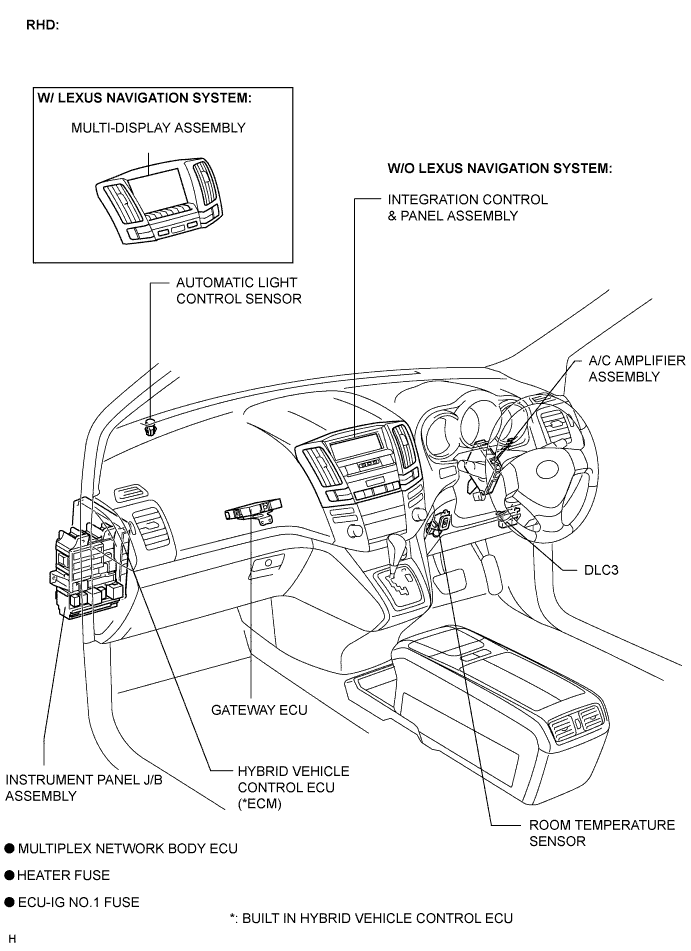

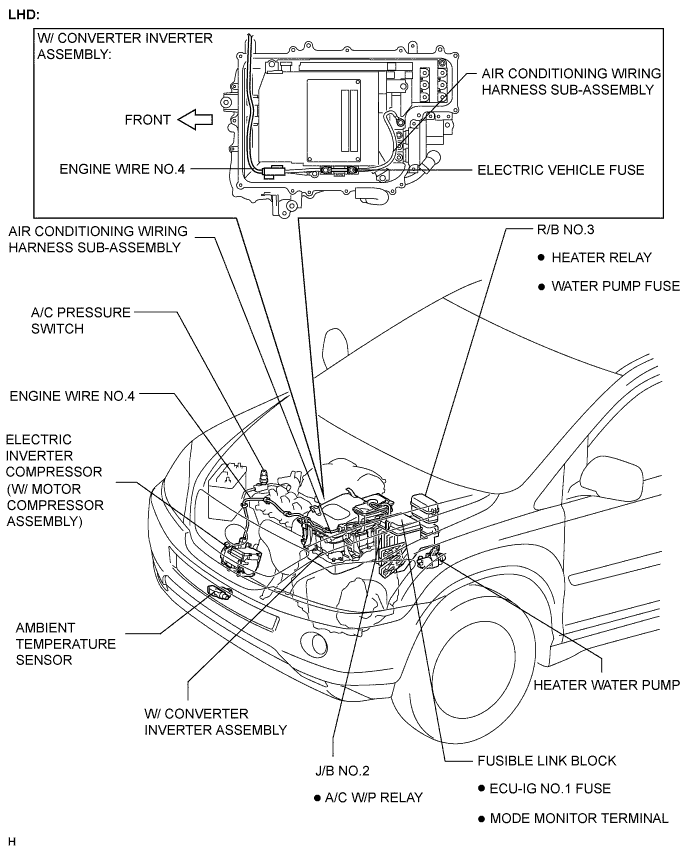

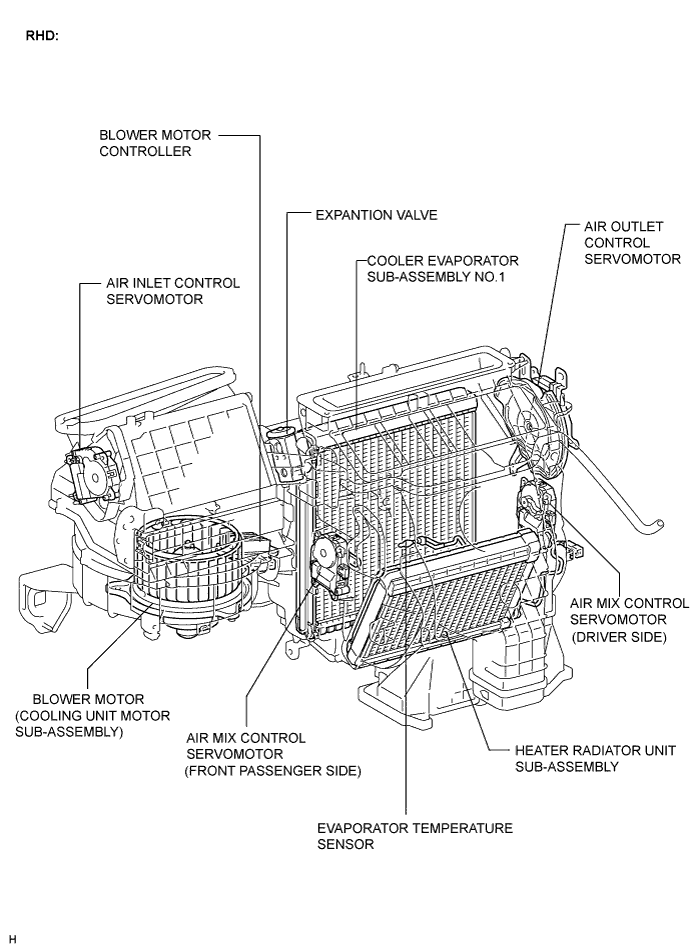

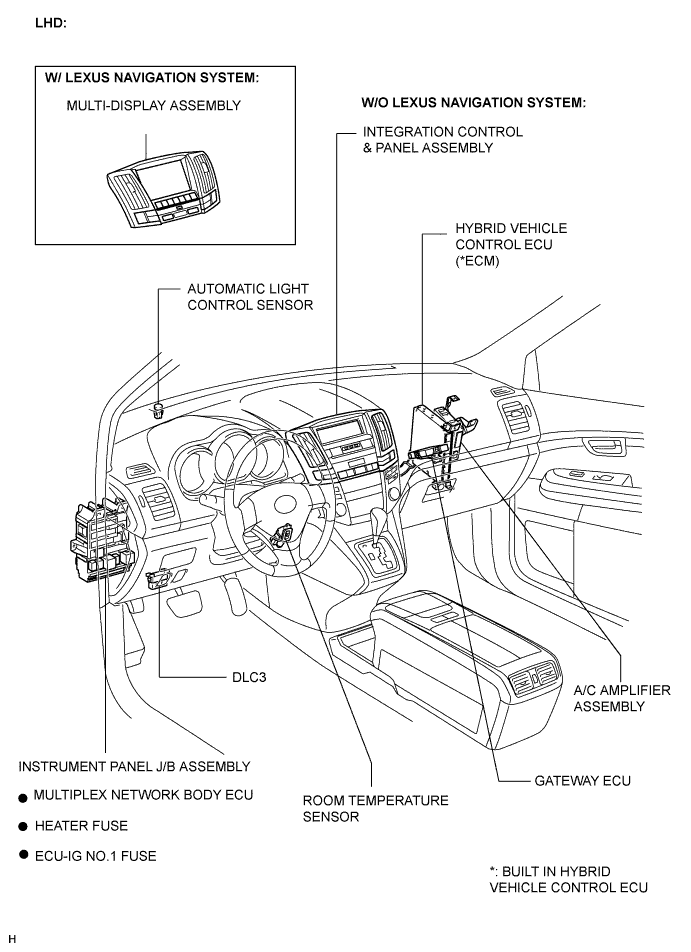

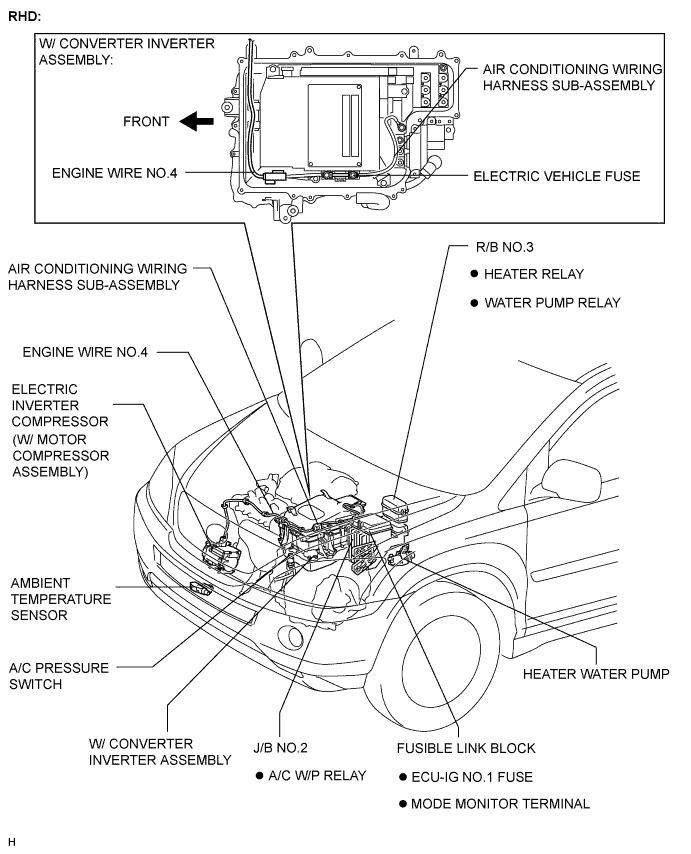

Parts location
1 / 6
2 / 6
3 / 6
4 / 6
5 / 6
6 / 6
← PRECAUTION
SYSTEM DIAGRAM →
