Door Glass and Regulator

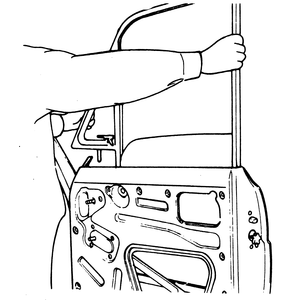

Fig. 1: Removing the window frame

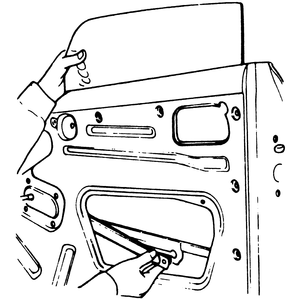

Fig. 2: Disengaging the regulator roller and arm

Remove the trim panel from the door.
Remove the window frame assembly from the door by removing the seven attaching screws.
Lower the door glass.
Disengage the regulator roller and arm from the glass.
Tilt the glass slightly and slide it up and out of the door.
Remove and discard the tape from the door glass channel.
Unbolt and remove the regulator.
Installation is the reverse of removal. Use new tape in the channel. Use waterproof sealer on the window frame screws.

Fig. 3: Door glass mounting screw (left) and door glass guide bolt (right)

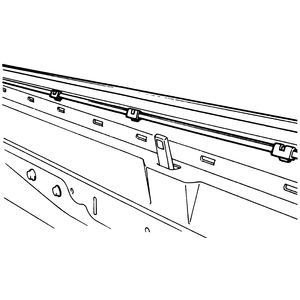

Fig. 4: View of the weatherstripping clips

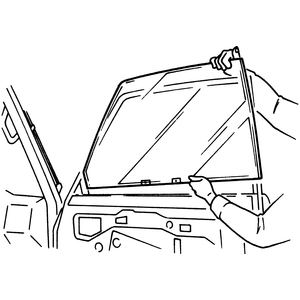

Fig. 5: Removing the door glass

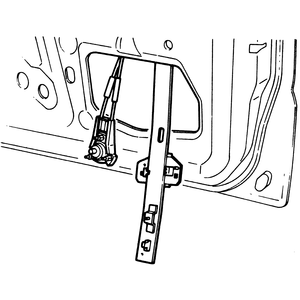

Fig. 6: Removing the regulator assembly through the access hole

Remove the door panel.
Remove the weatherscreening carefully, so that it can be reused.
Position the glass so that the mounting screws can be accessed through one of the holes in the door frame. Remove the door glass mounting screws.
Remove the inner and outer weatherstripping around the frame.
Remove the glass guide mounting bolt.
Pull the glass up and out of the door.
Remove the mounting bolts and pull the regulator assembly from the access hole.
Installation is the reverse of removal. Adjust the door glass so that it closes properly.
