Outside Mirrors

REMOVAL & INSTALLATION

1. Disconnect the negative battery cable.
2. Remove the trim panel from inside the mirror.
3. Remove the mirror mounting screws and pull the mirror away from the door. On power mirrors, unplug the connector. Remove the mirror from the vehicle.
4. Installation is the reverse of the removal procedure.

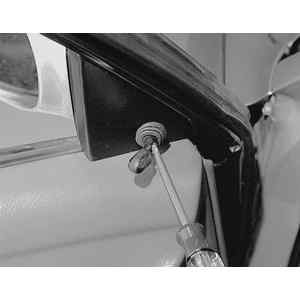

   Fig. 1: Remove the cap covering the lever screw

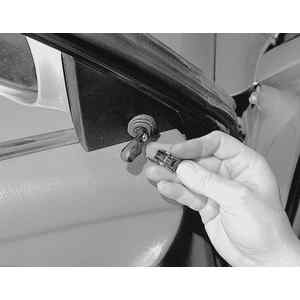

   Fig. 2: Remove the screw securing the lever then remove the lever

   Fig. 3: Remove the trim cover

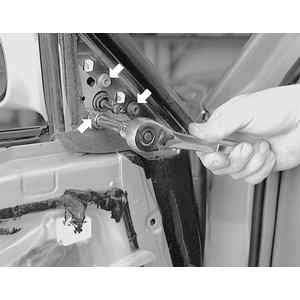

   Fig. 4: The mirror attaching screws can now be accessed

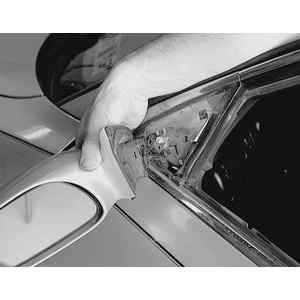

   Fig. 5: Pull the mirror from the door once the screws are removed
