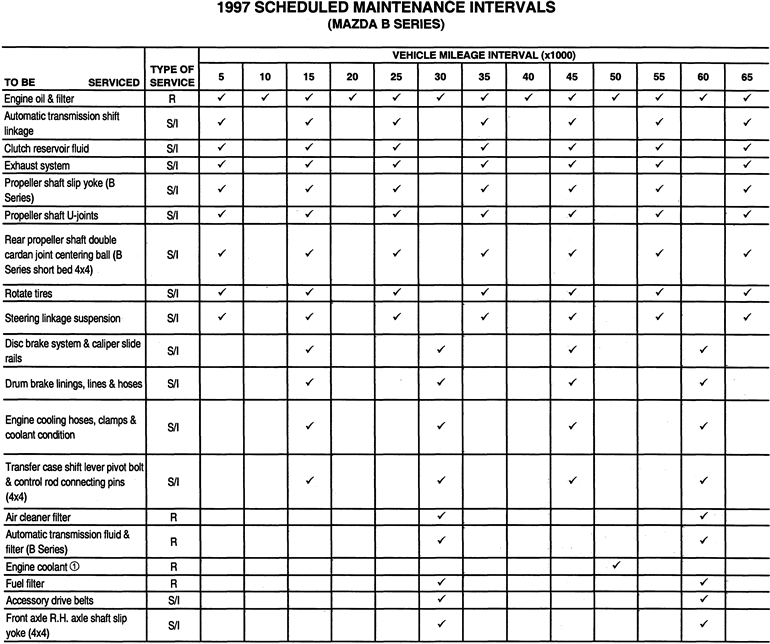

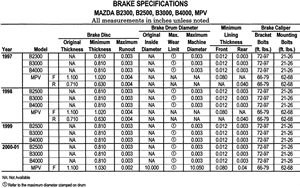

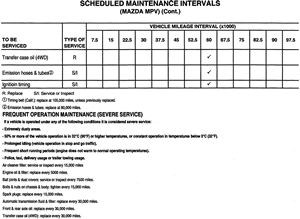

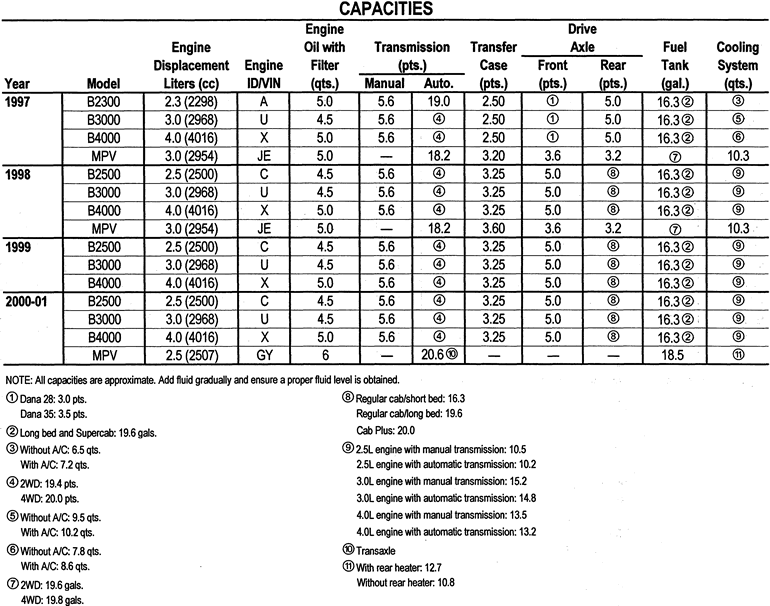

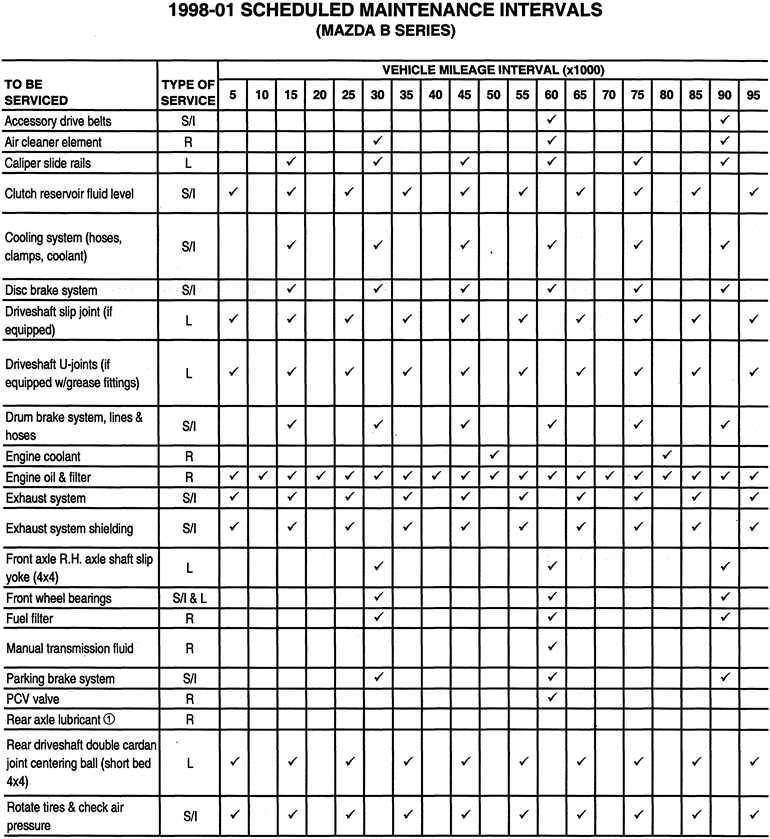

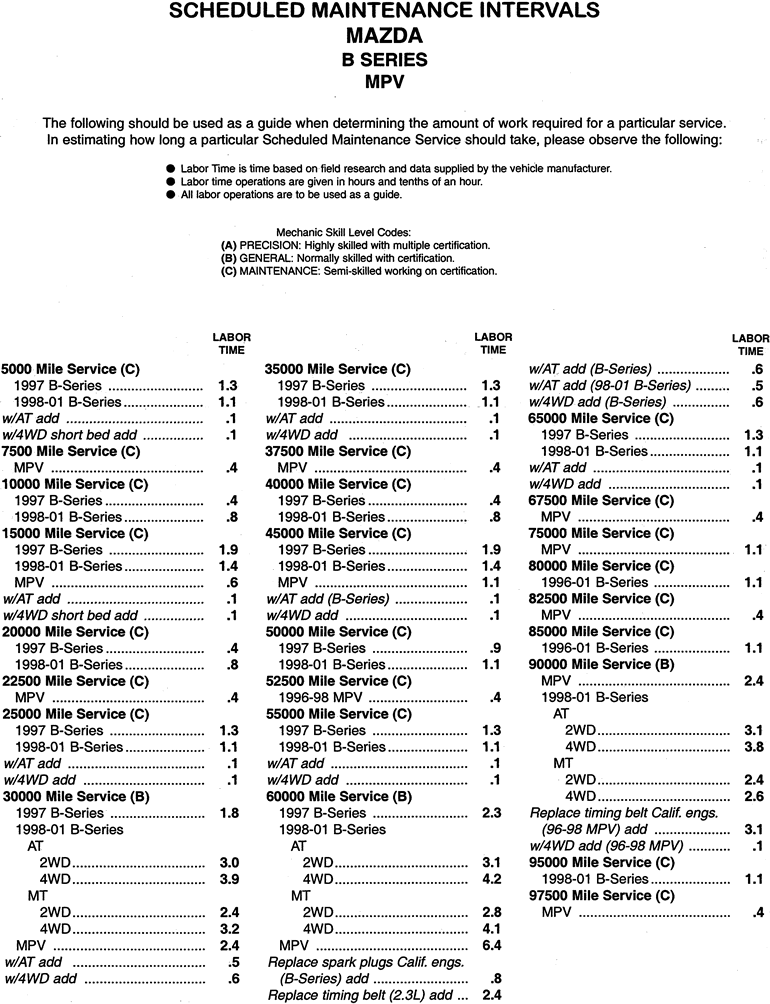

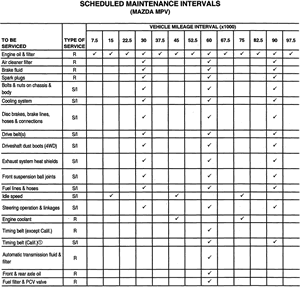

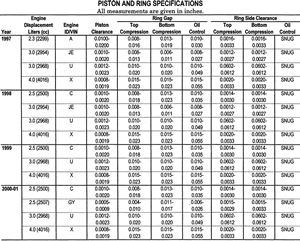

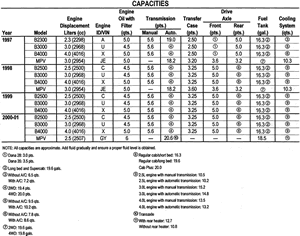

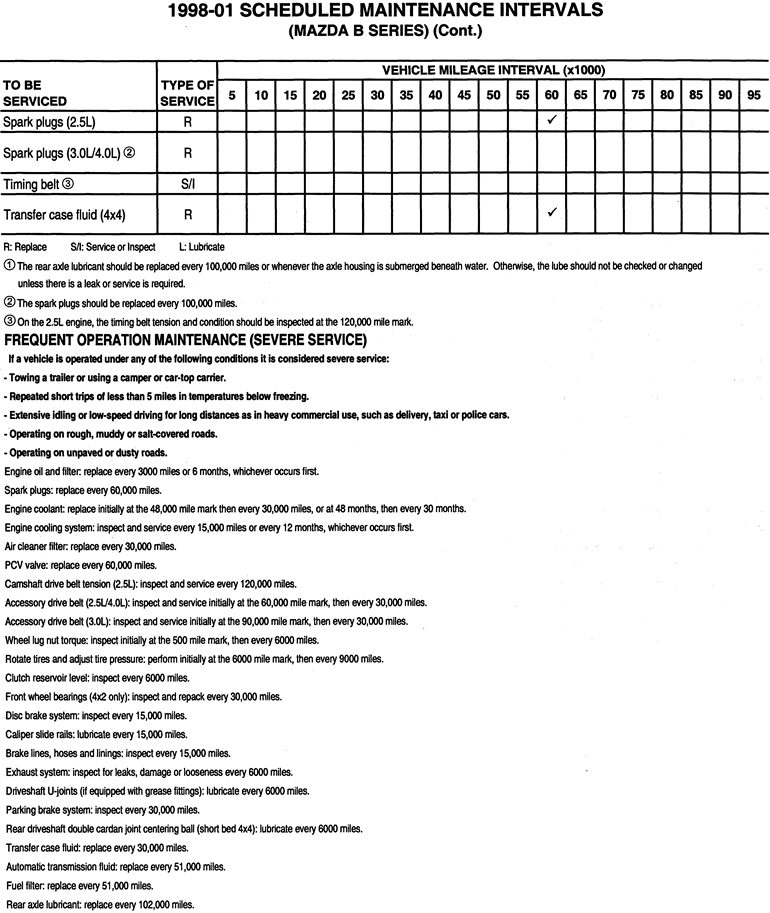

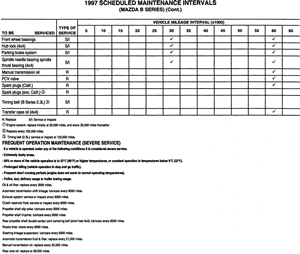

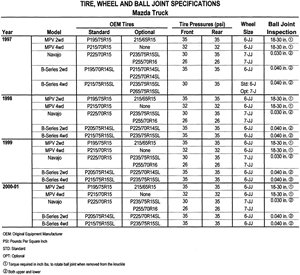

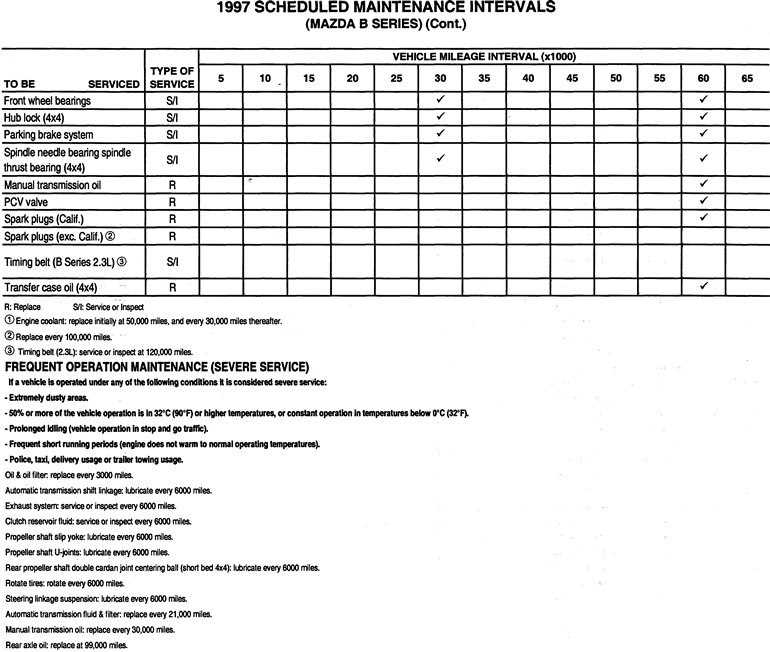

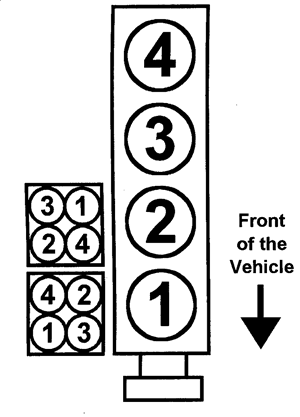

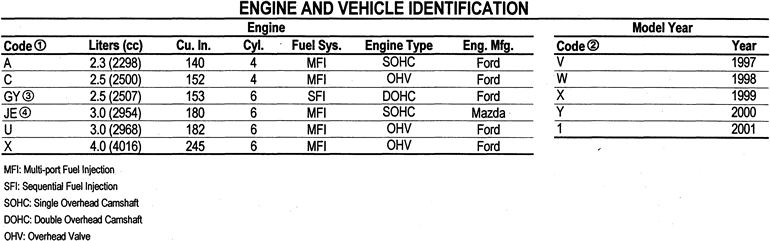

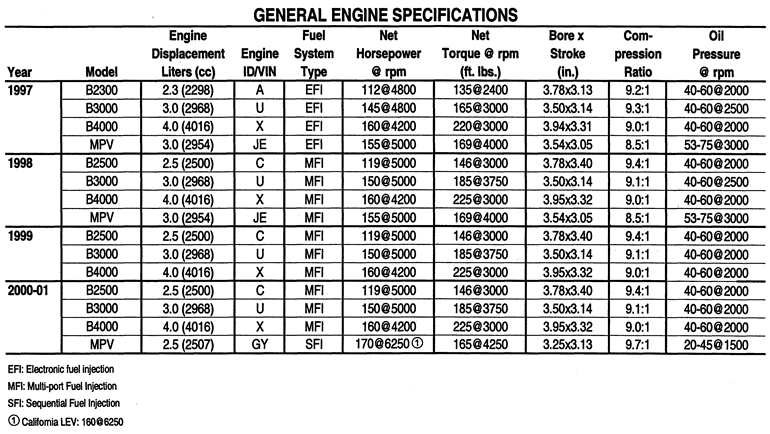

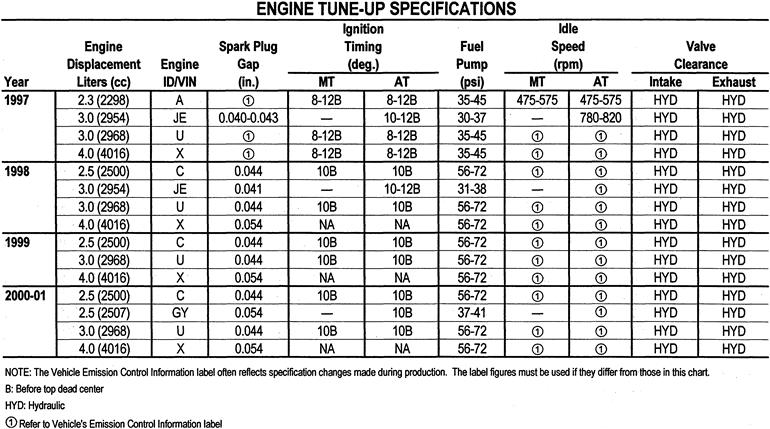

| Fig. 1: 2.3L (VIN A) Engine Firing order: 1–3–4–2 Distributorless
ignition system
|
| Fig. 2: 2.5L Engine Firing order: 1–3–4–2 Distributorless
ignition system
|

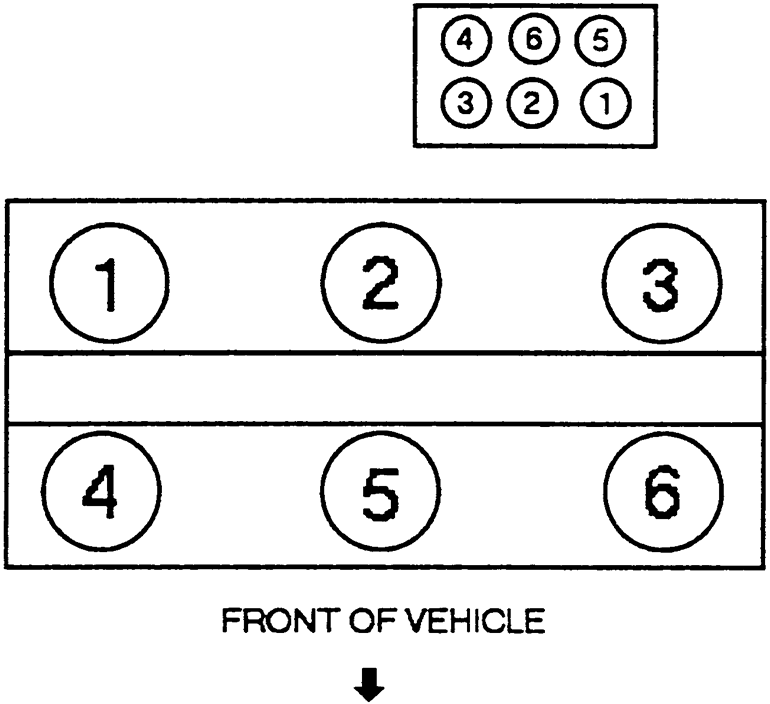

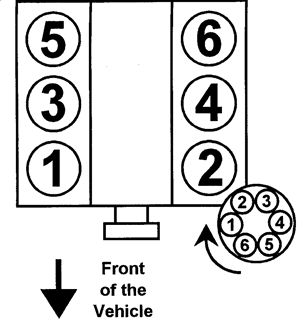

| Fig. 3: 1997–98 3.0L engine Firing order: 1–2–3–4–5–6
Distributor rotation: Clockwise
|
| Fig. 4: 2000–01 2.5L engine Firing order: 1–4–2–5–3–6
Distributorless ignition system
|
|
|
|
|
|
|
|
|
|
|
|
|

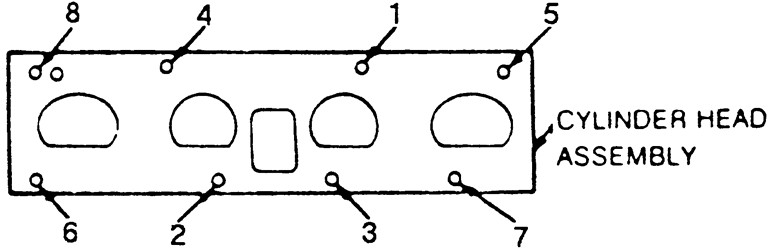

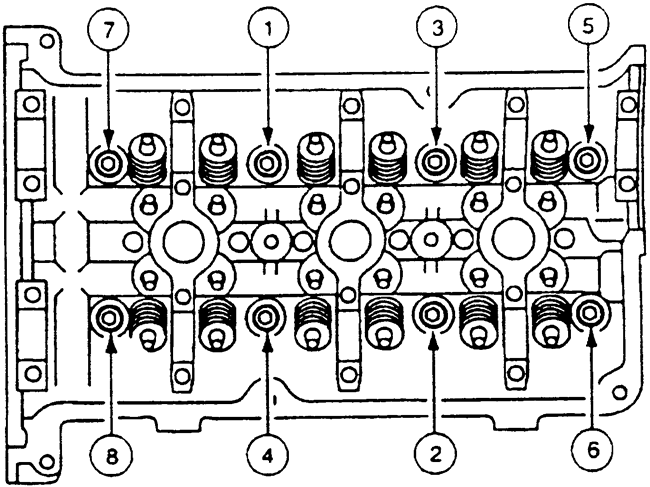

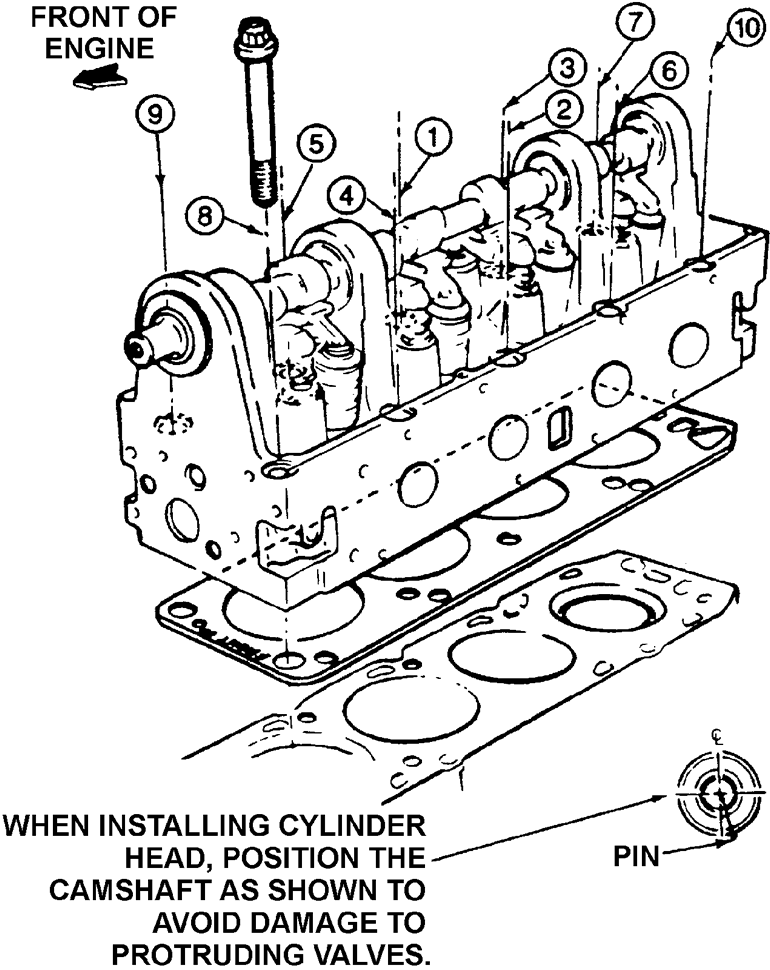

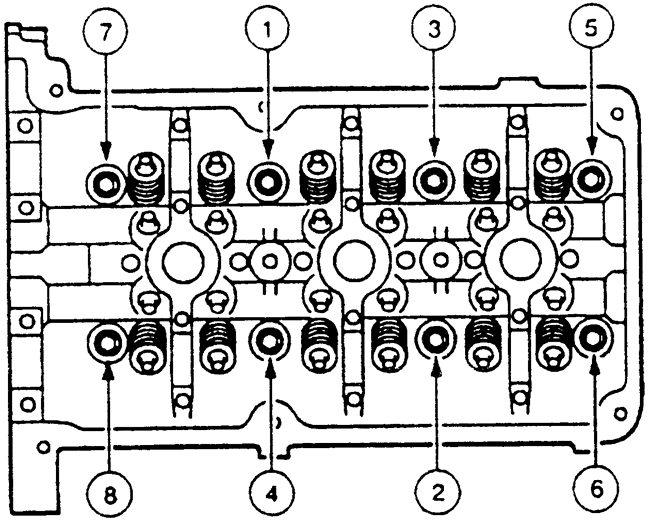

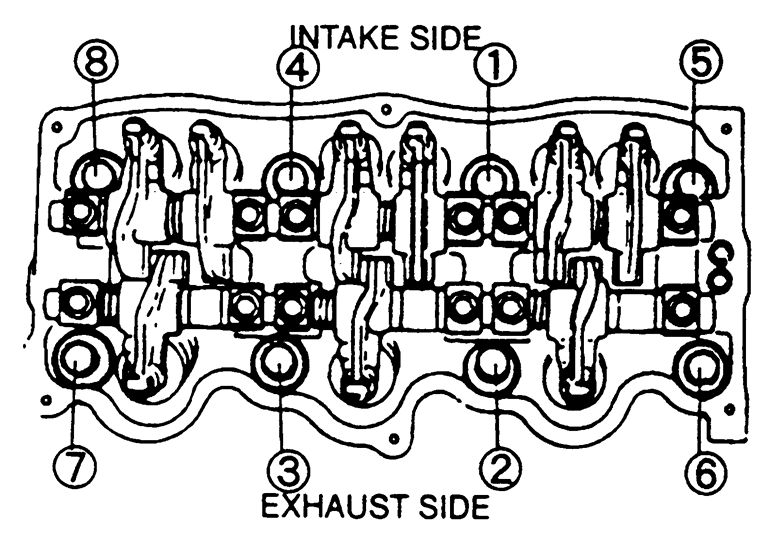

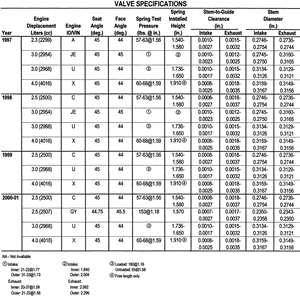

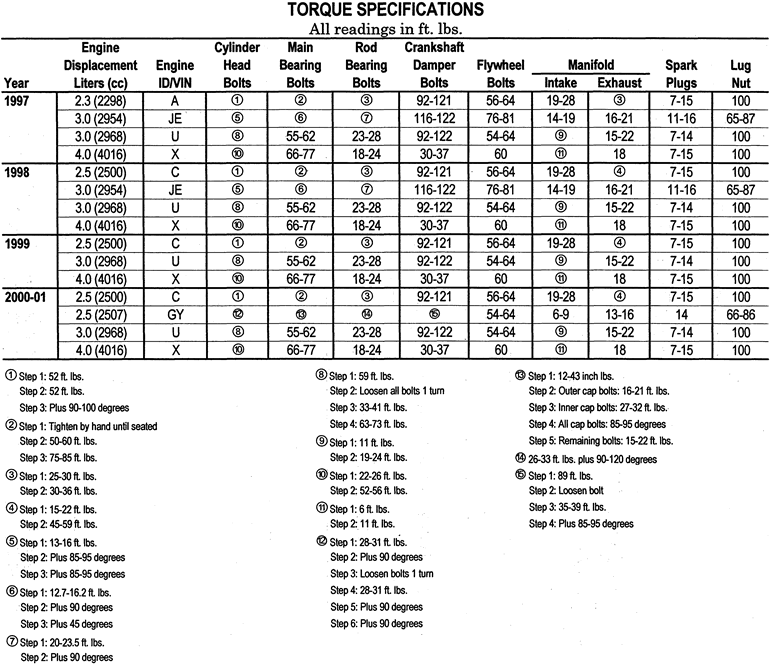

| Fig. 5: Cylinder head bolt torque sequence 2.3L engine
|
| Fig. 6: Left cylinder head torque sequence — 2.5L
engine
|
| Fig. 7: Right cylinder head loosening sequence —
2.5L engine
|

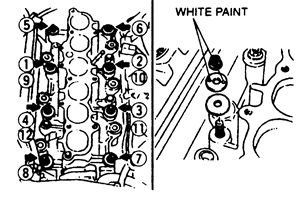

| Fig. 8: Cylinder head bolt tightening sequence —
3.0L engine
|

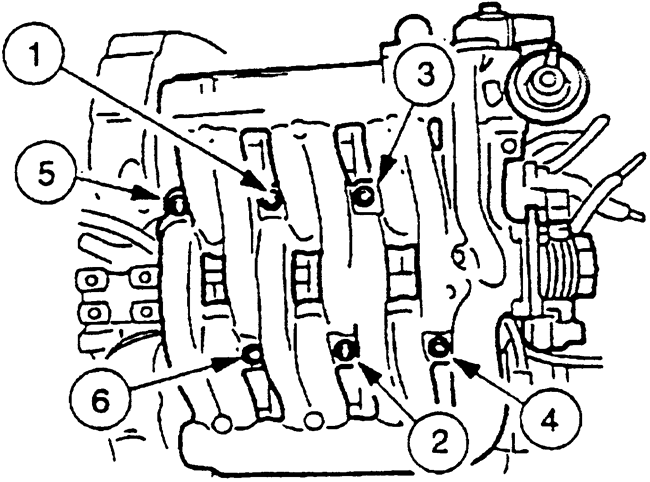

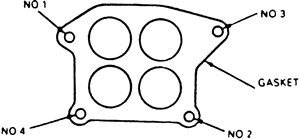

| Fig. 9: Tighten the lower manifold bolts in the sequence
shown — 2.3L engine
|
| Fig. 10: Tighten the upper manifold bolts in the sequence
shown — 2.3L engine
|

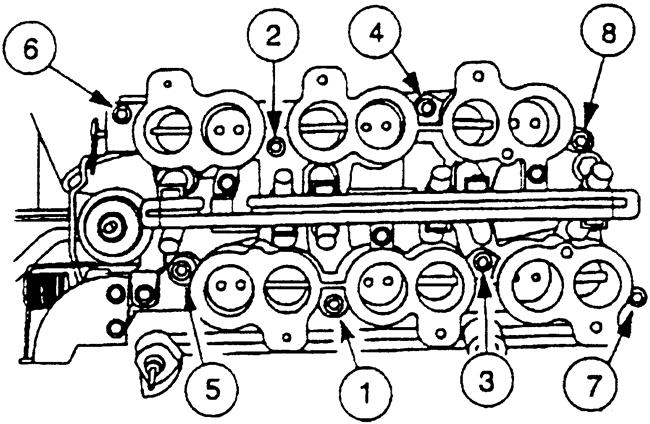

| Fig. 11: Intake Manifold Runner Control (IMRC) housing
torque sequence — 2.5L engine
|
| Fig. 12: Intake manifold torque sequence — 2.5L engine
|
| Fig. 13: Intake manifold tightening sequence and mounting
washers — 3.0L engine
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
