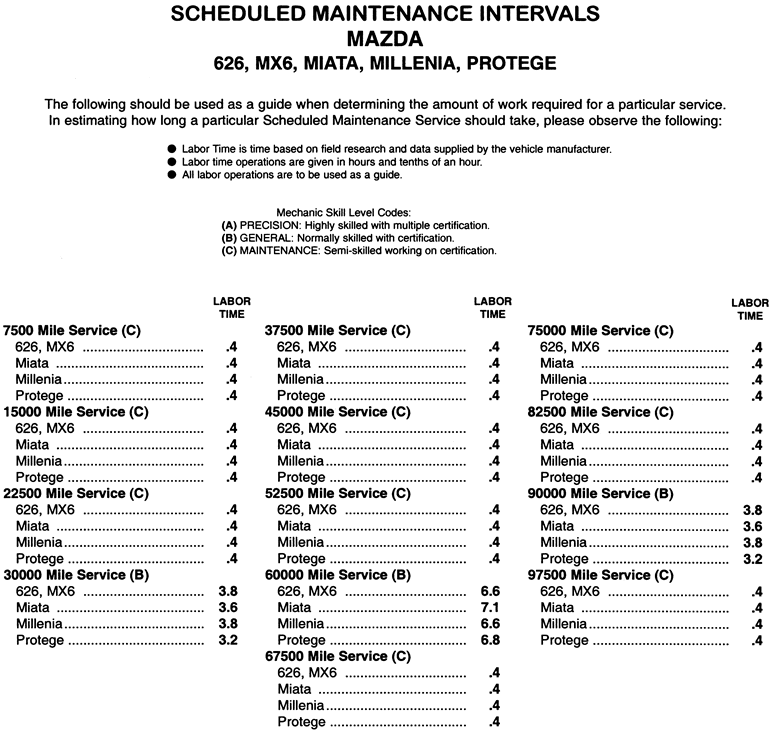

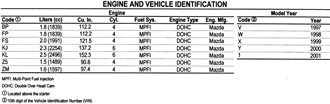

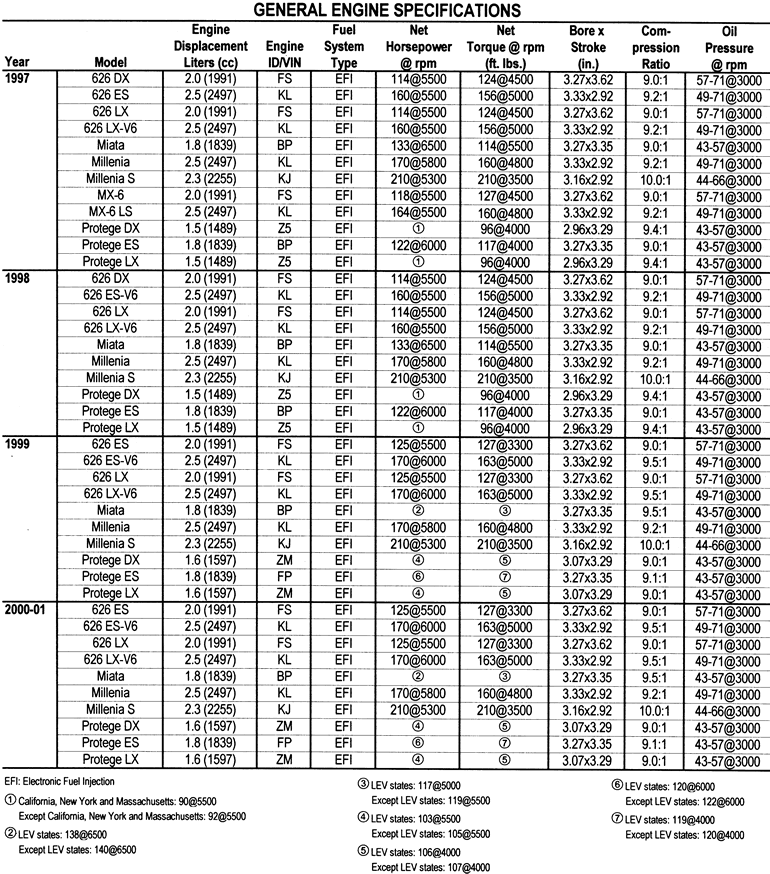

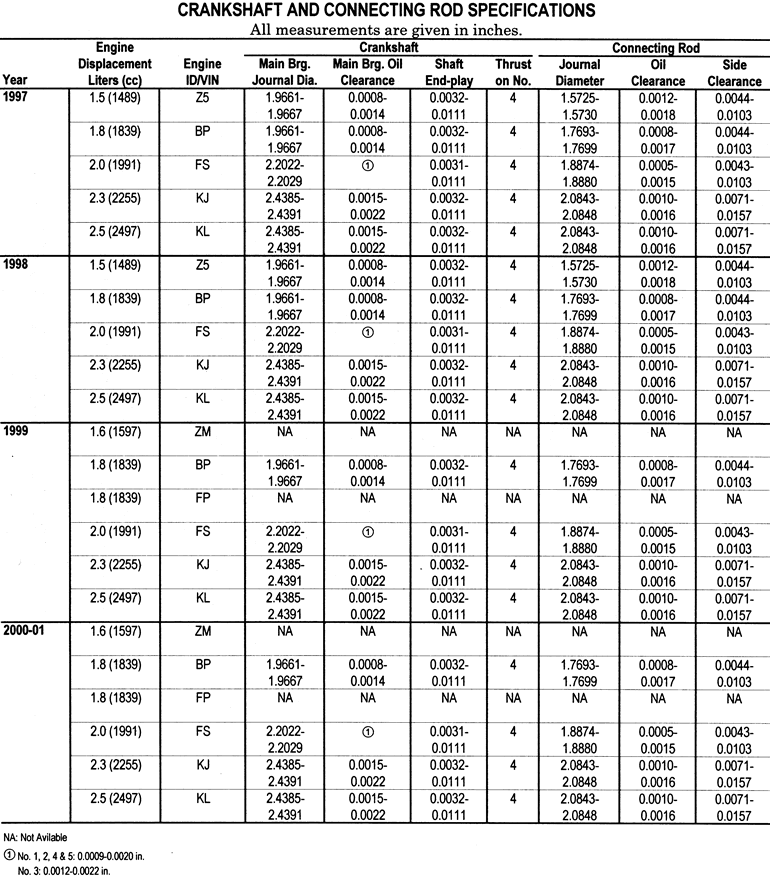

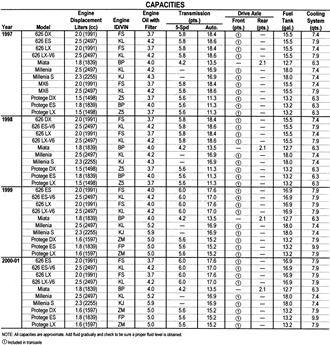

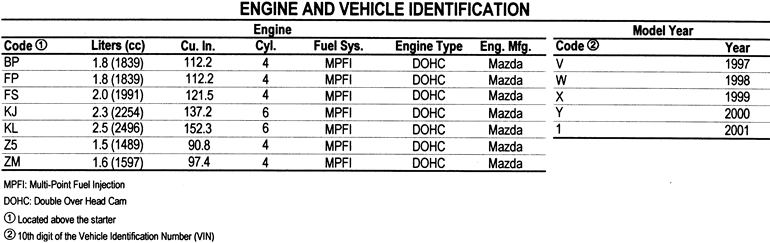

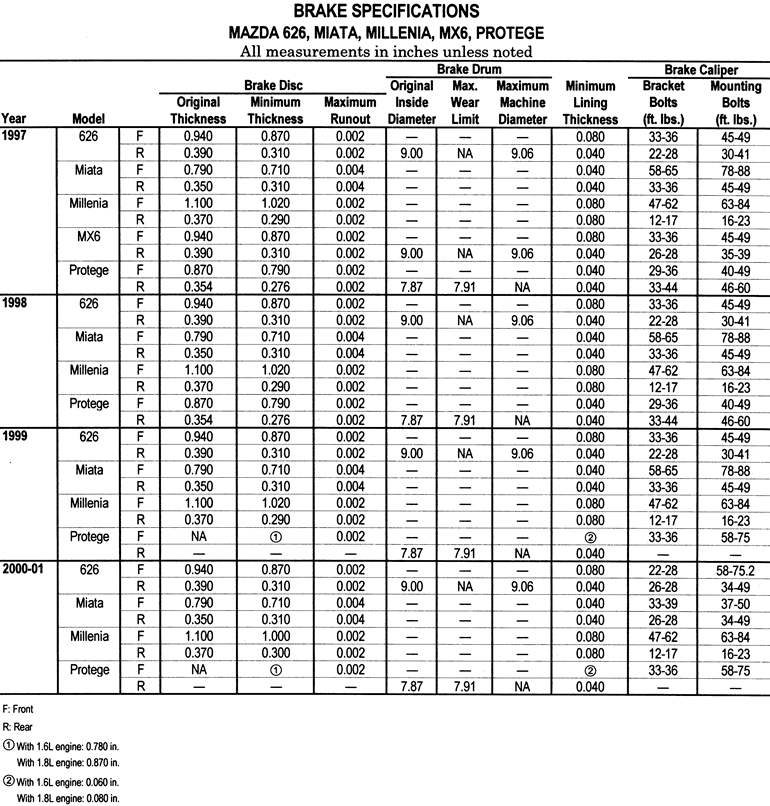

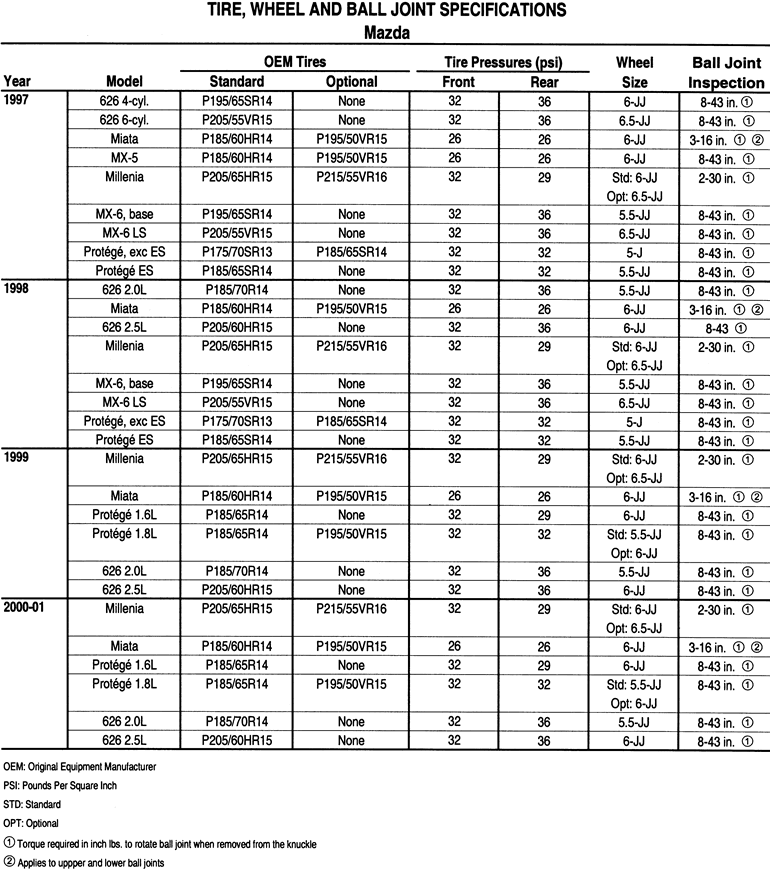

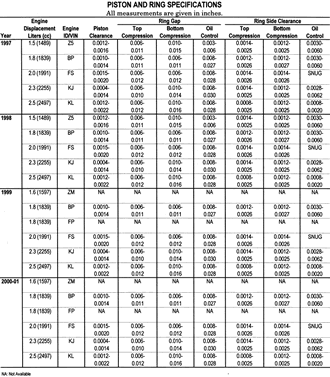

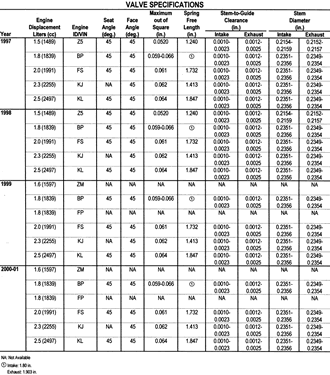

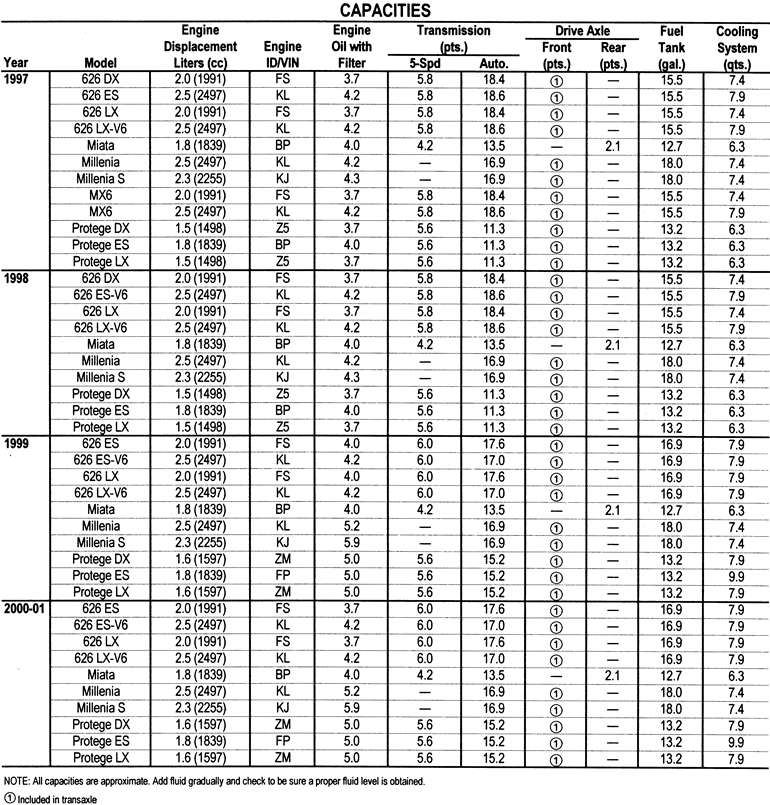

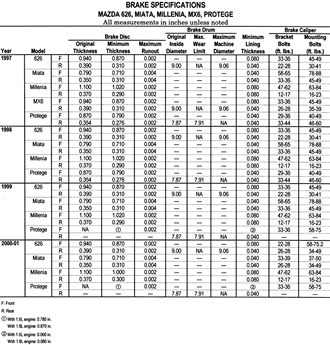

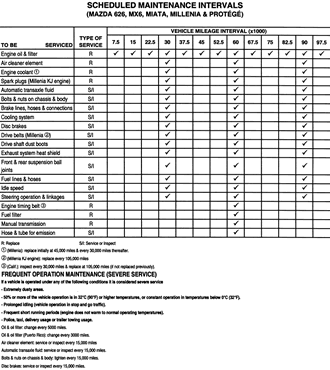

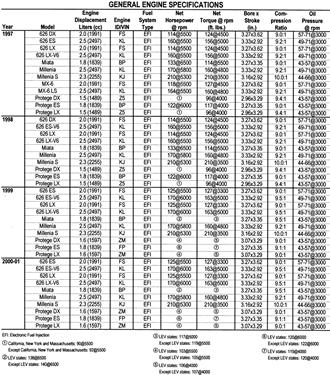

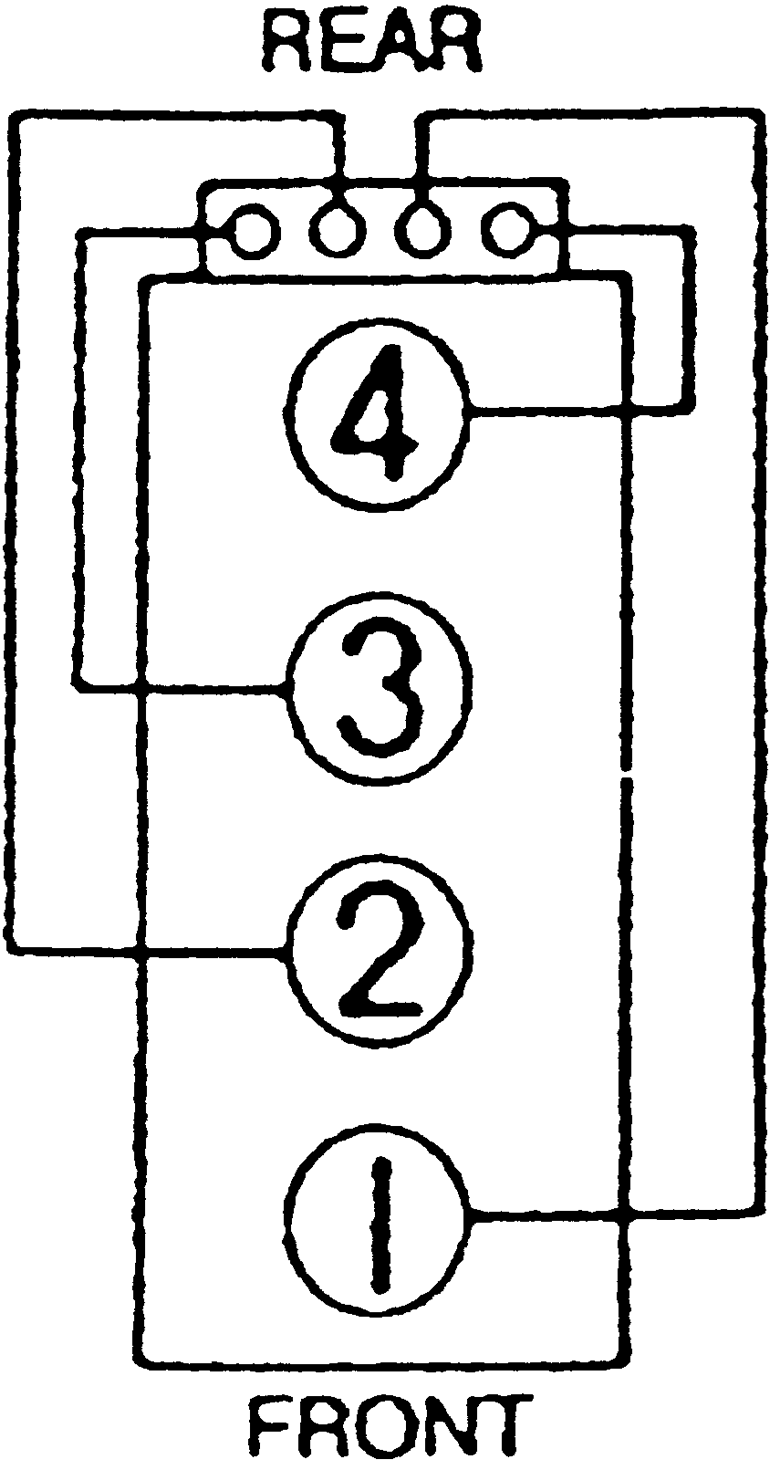

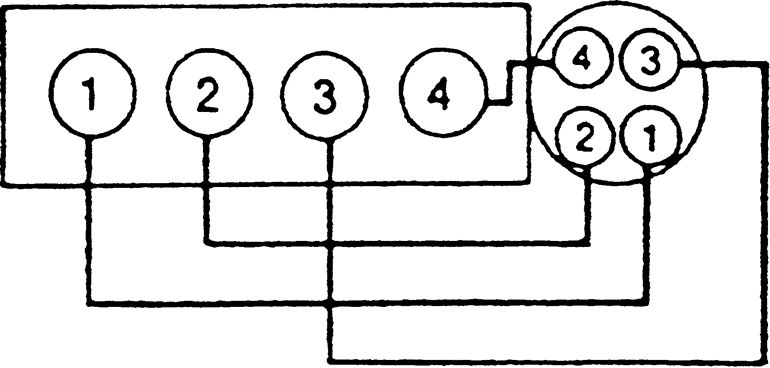

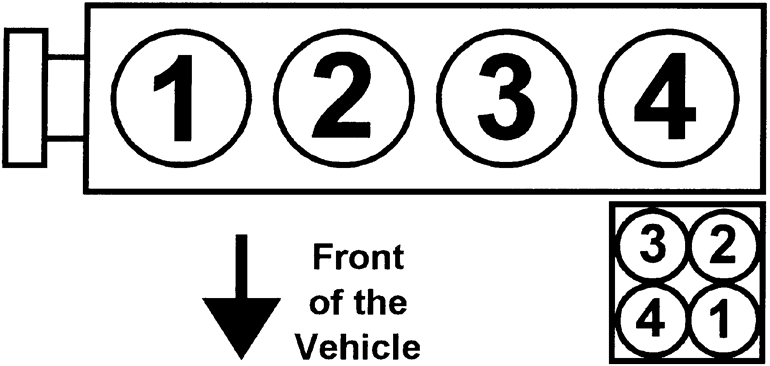

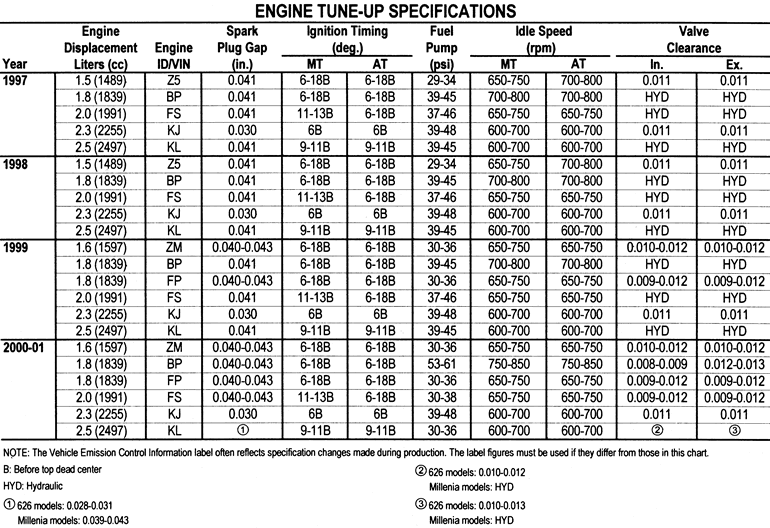

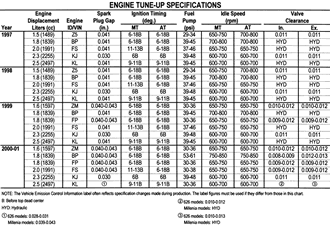

| Fig. 1: 1.8L (BP) Miata Engine Firing order: 1–3–4–2 Distributorless
ignition system
|

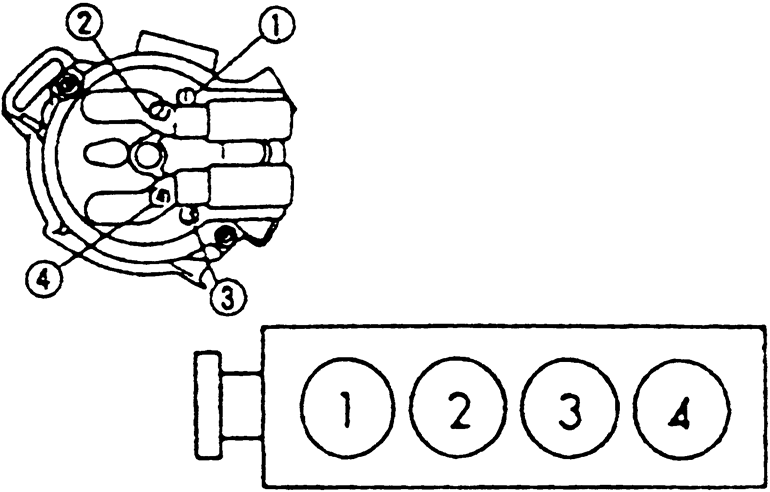

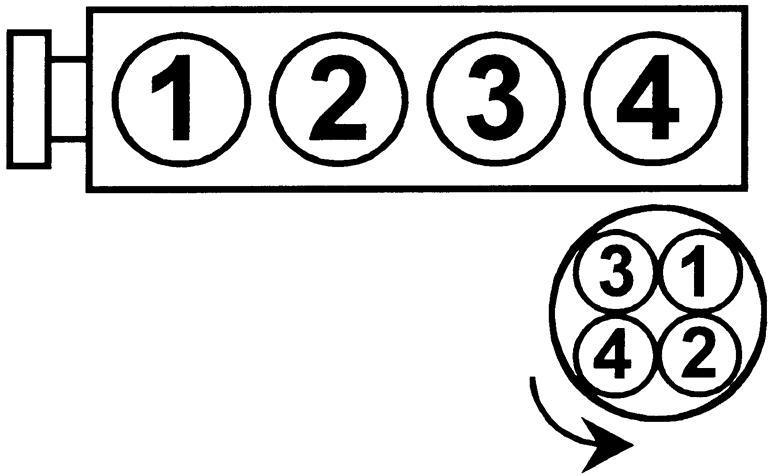

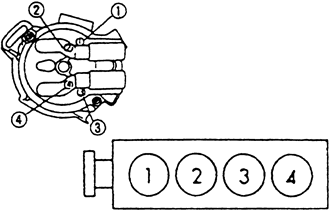

| Fig. 2: 1997 1.5L (Z5) and 1.8L (BP) Non-Miata Engines
Firing order: 1–3–4–2 Distributor rotation: Counterclockwise
|
| Fig. 3: 1998–01 1.5L and 1.8L Non-Miata Engines Firing
order: 1–3–4–2 Distributor rotation: Counterclockwise
|
| Fig. 4: 1997 2.0L (FS) Engines Firing order: 1–3–4–2 Distributor
rotation: Clockwise
|
| Fig. 5: 1998–01 2.0L (FS) Engines Firing order: 1–3–4–2
Distributorless ignition system
|

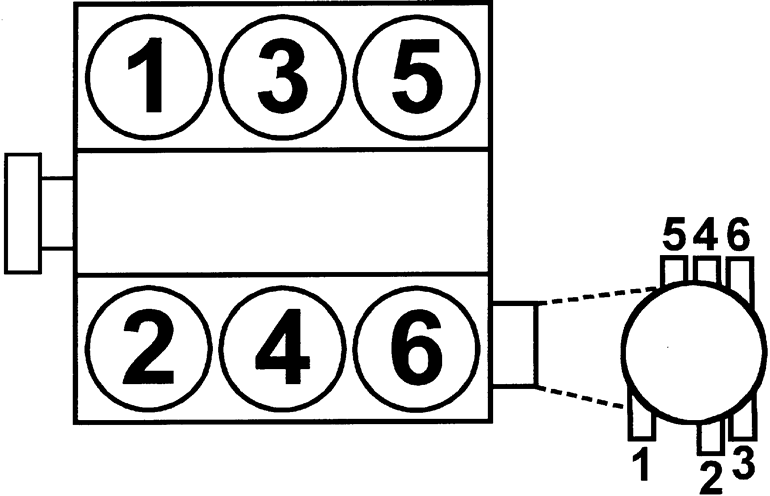

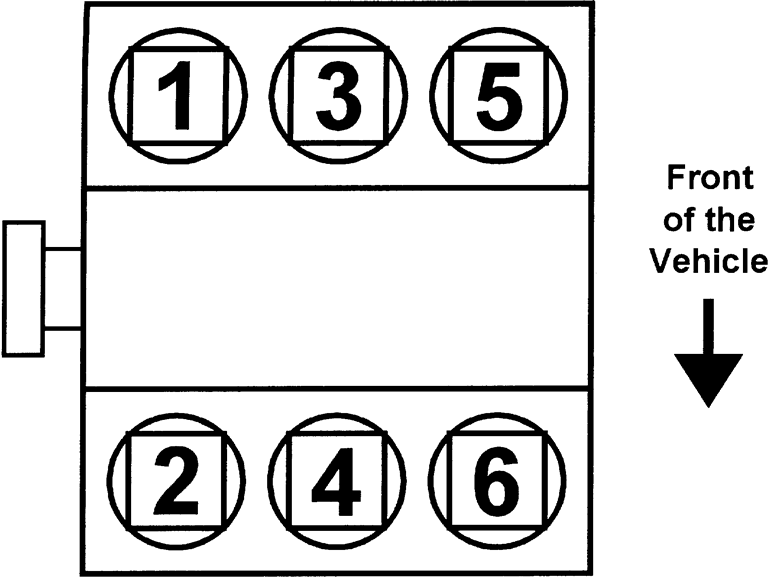

| Fig. 6: 2.3L (KJ) Engine Firing order: 1–2–3–4–5–6 Distributorless
ignition system (one coil over each cylinder)
|

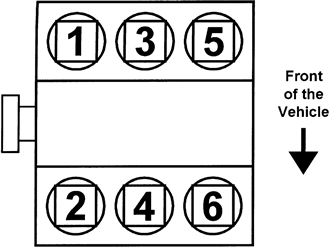

| Fig. 7: 1997 2.5L Engine Firing order: 1–2–3–4–5–6 Distributor
rotation: Counterclockwise
|

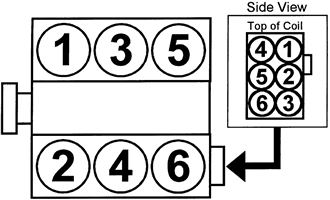

| Fig. 8: 1998–01 2.5L Engines Firing order: 1–2–3–4–5–6
Distributorless ignition system
|
|
|
|
|
|
|
|
|
|
|

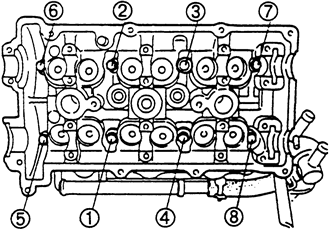

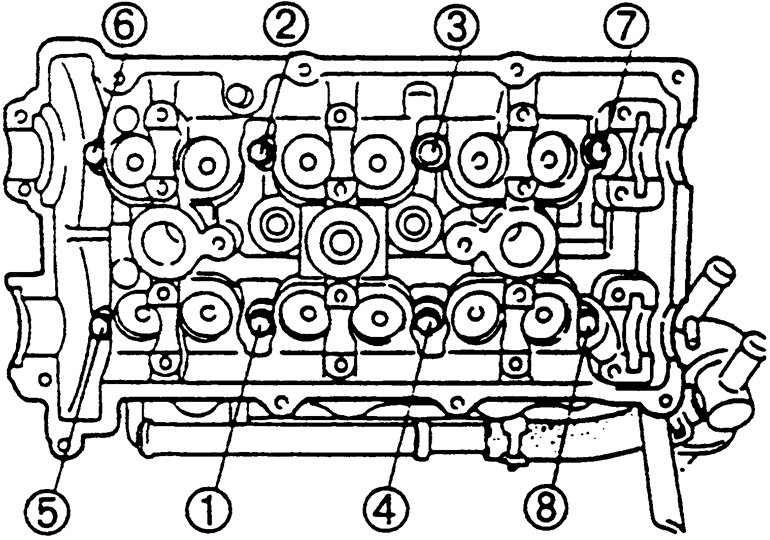

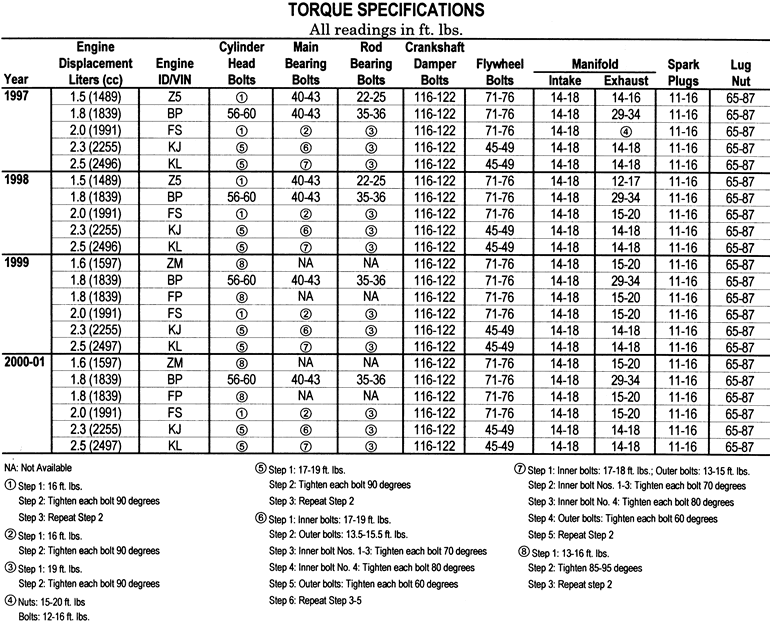

| Fig. 9: Cylinder head bolt tightening sequence —
4-cylinder engines
|

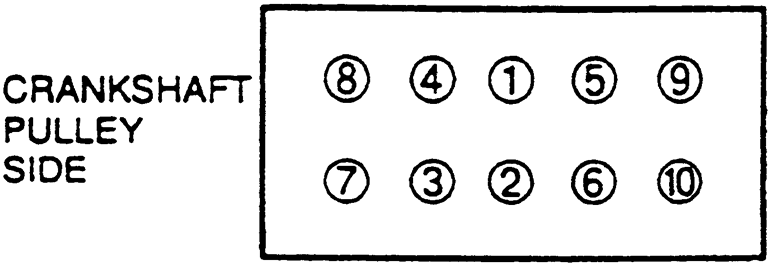

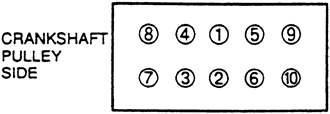

| Fig. 10: Cylinder head bolt tightening sequence —
6-cylinder engines
|

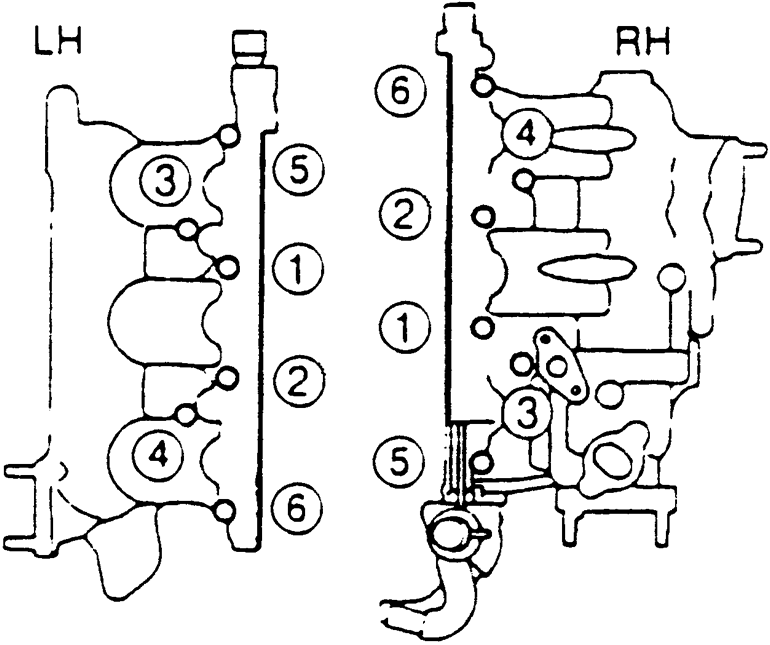

| Fig. 11: Be sure to tighten the intake manifold bolts
in the sequence shown — 2.3L engine
|
|
|
|
|
|
|
|
|
