Check the coolant level every 3,000 miles or once a month. In hot weather operation, it may be a good idea to check the level once a week. Check for loose connections and signs of deterioration of the coolant hoses. Check the coolant level in the reservoir when the engine is cold, making sure the level is at the FULL or MAX mark. If the bottle is empty, check the level in the radiator and refill as necessary. Then fill the bottle up to the FULL or MAX level.

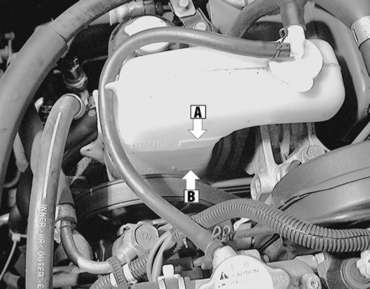

| Fig. 1: The coolant reservoir has FULL (A) and LOW
(B) marks located on the tank
|

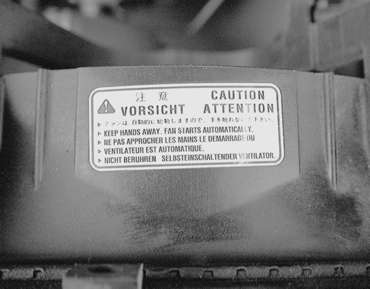

| Fig. 2: Be EXTREMELY careful when working around the
electric cooling fan
|
CAUTION
Never remove the radiator cap when the vehicle is hot or overheated. Wait
until it has cooled. Place a thick cloth over the radiator cap to shield yourself
from the heat and turn the radiator cap, SLIGHTLY, until the sound of escaping
pressure can be heard. DO NOT turn any more; allow the pressure to release
gradually. When no more pressure can be heard escaping, remove the cap with
the heavy cloth, CAUTIOUSLY.
NOTE: Never add cold water to an overheated engine.
After filling the radiator, run the engine until it reaches normal operating temperature, to make sure that the thermostat has opened and all the air is bled from the system.

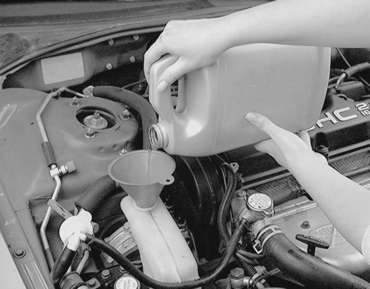

| Fig. 3: Add the proper water/coolant mixture to the
reservoir until the fluid reaches the proper level
|
