REMOVAL & INSTALLATION

1. Disconnect the negative battery cable.
2. For 2.0L non-turbo engines, remove the engine under cover.

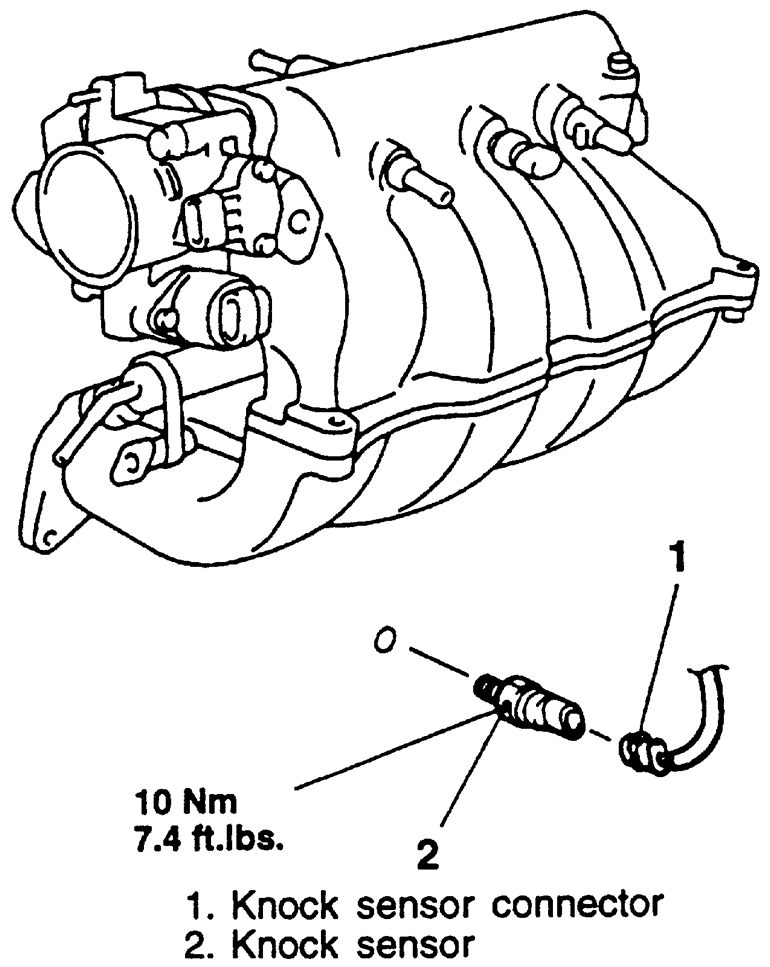

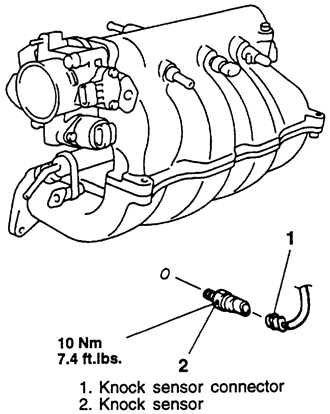

   Fig. 1: Exploded view of the knock sensor mounting — 1997 2.0L non-turbo engine shown

3. Detach the electrical connector at the sensor.
4. For 2.0L turbo engines, remove the intake manifold stay.

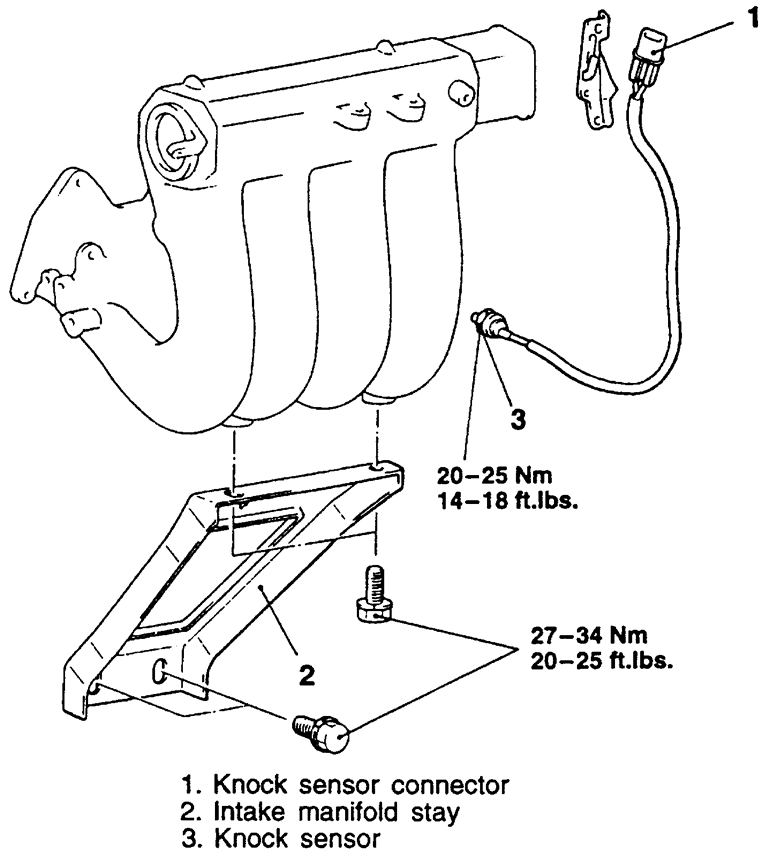

   Fig. 2: Exploded view of the knock sensor — 1995–98 2.0L turbo engines

5. Remove the sensor from the engine block.

   To install:

6. Install the knock sensor in the opening in the engine block and tighten the sensor retainer.
7. Attach the electrical connector to the sensor.
8. Connect the negative battery cable.
