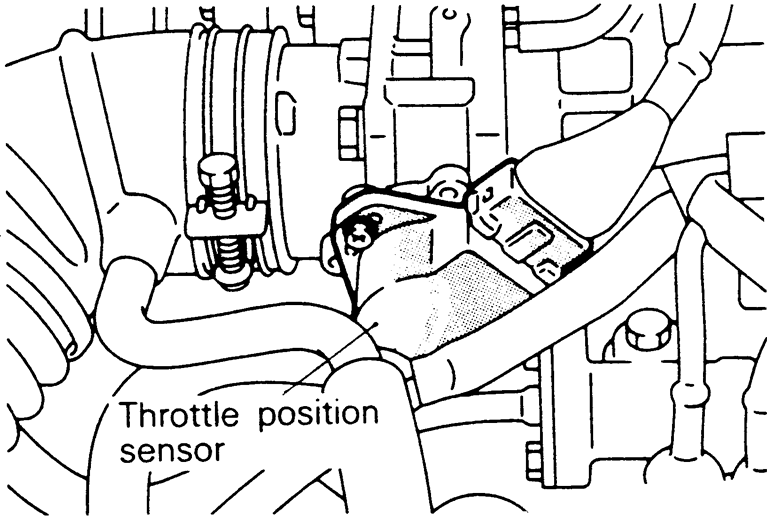

Fig. 1: Location of the throttle position — 1.8L
engine shown, others similar
Detach the electrical connector from the throttle position sensor.
Remove the mounting screws from the sensor, being careful not to round the
Phillips screw head.
Remove the sensor from the throttle body.
To install:
Install the throttle position sensor onto the throttle body and rotate the
sensor counterclockwise on the throttle shaft and temporarily tighten the
screws.
Connect the electrical harness to the sensor.
Tighten the retainer screws to 1.8 ft. lbs. (2.5 Nm).
