Rear Window Wiper Switch

REMOVAL & INSTALLATION

1990–94 Vehicles

1. Disconnect the negative battery cable.

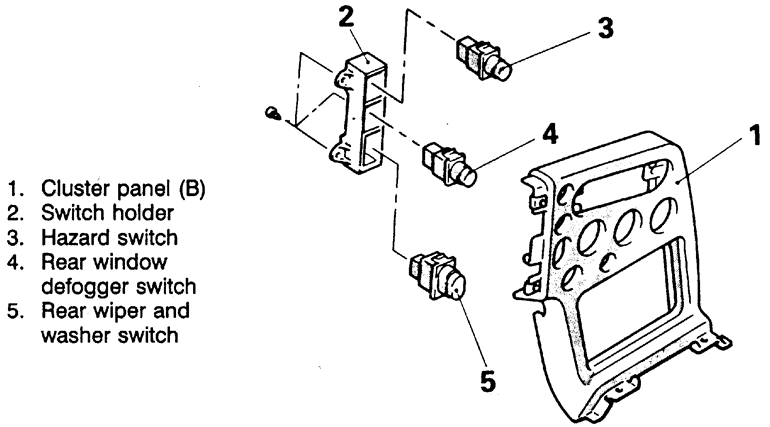

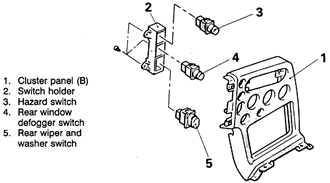

   Fig. 1: Exploded view of the rear wiper and washer switch and related switches — 1990–94 vehicles

2. Remove the cluster panel containing the hazard switch, rear window defogger switch and rear wiper switch.
3. Unfasten the retaining screw, then remove the switch holder from the back of the panel. Remove the rear wiper switch and replace as required.
4. Installation is the reverse of the removal procedure.

1995–98 Vehicles

1. Disconnect the negative battery cable.
2. Remove the center air outlet assembly by removing the retainers, or carefully prying it away from the instrument panel.
3. Remove the rear wiper and washer switch from the outlet assembly.

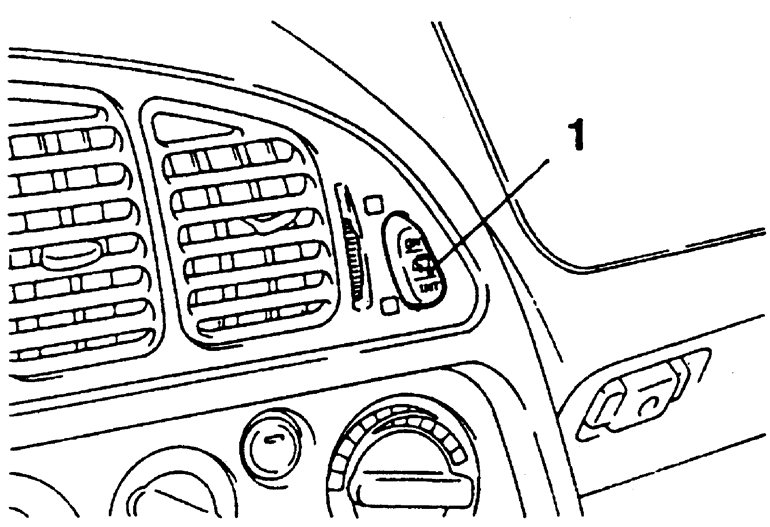

   Fig. 2: The rear wiper switch is mounted in the center air outlet assembly — 1995–98 vehicles

4. Installation is the reverse of the removal procedure.
5. Connect the negative battery cable.
