Outside Mirror

REMOVAL & INSTALLATION

1. Disconnect the negative battery cable. Remove the door interior trim panel and water proof film.
2. On directly controlled mirror (manual mirror), remove the set screw and the adjustment knob.
3. Remove the inner mirror cover.
4. If the mirror is electric, disconnect the wire harness.
5. Remove the mounting nuts and the door trim bracket. Lift the mirror from the vehicle.

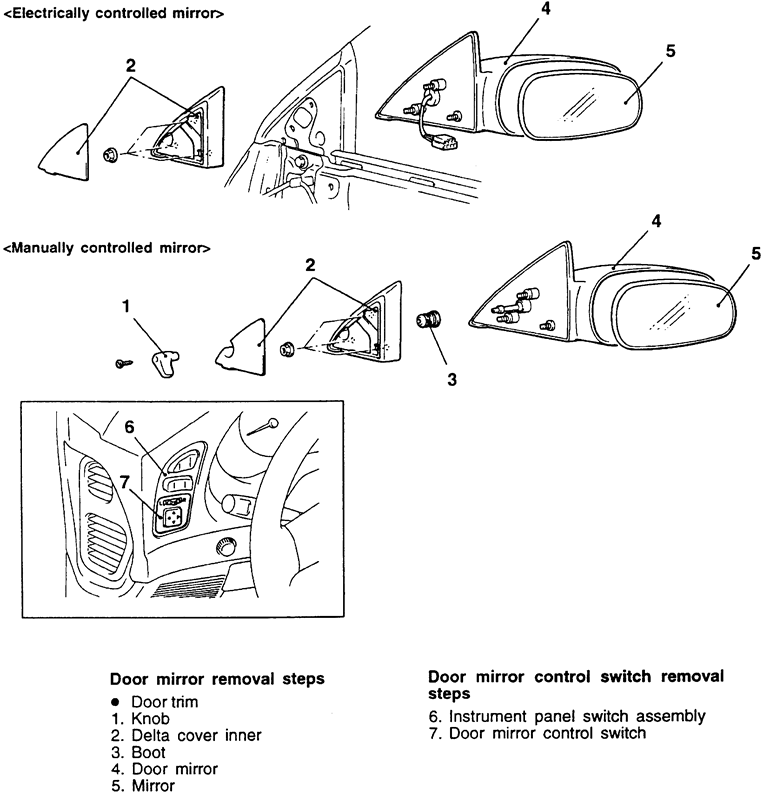

   Fig. 1: Door mirror and related components — 1995–98 vehicles shown, earlier models similar

   To install:

6. Position the mirror on the vehicle. Install the door trim bracket and the mounting nuts.
7. If the mirror is electric, reconnect the wire harness.
8. Install the inner cover.
9. On manual mirrors, install the knob and set screw.
10. Install the water proof film and the door interior trim panel.
11. Connect the negative battery cable.
12. If electric, cycle the mirror several times to make sure that it works properly.
