LEVEL CHECK

1. Wipe the clutch master cylinder reservoir cap and the surrounding area clean with a shop towel.

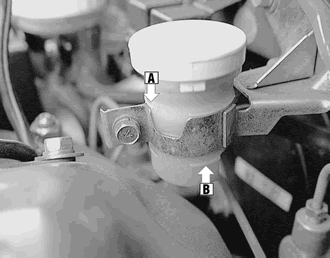

   Fig. 1: The clutch master cylinder has MAX (A) and MIN (B) fill lines on the reservoir

2. Inspect the fluid in the reservoir, making sure fluid is between the MAX and the MIN marks.
3. If required, remove the clutch master cylinder reservoir lid, then add fresh fluid to fill to the top full mark on the reservoir.

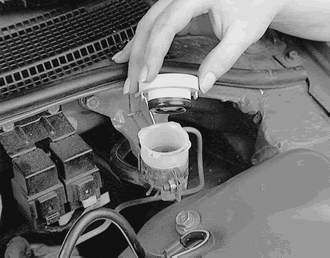

   Fig. 2: Remove the clutch master cylinder lid by pulling it straight up and off the reservoir

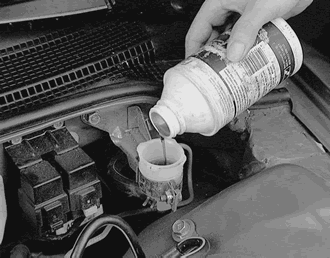

   Fig. 3: If the fluid is low, add until it reaches the proper level on the side of the reservoir

   WARNING
   Be careful to avoid spilling any brake fluid on painted surfaces, because the paint coat will become discolored or damaged.

4. Reinstall the lid onto the clutch master cylinder.
5. If removed, install the air cleaner assembly.
