LEVEL CHECK

Inspect each component for leaking. Check the oil level by removing the filler plug. If the oil is contaminated, it is necessary to replace it with new oil. Check the oil level as follows:

1. Make sure the vehicle is parked on a level surface.

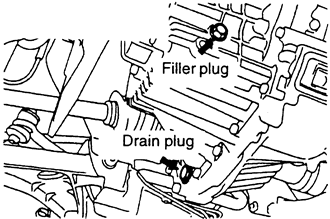

   Fig. 1: Typical manual transaxle drain and filler plug location

2. Remove the filler plug and make sure the oil level is up to the lower edge of the filler plug hole.

   Fig. 2: Oil, when at the proper level, will reach the lower edge of the filler hole opening

3. Check to be sure that the transaxle oil is not noticeably dirty and that it has a suitable viscosity.
