PCV Valve

REMOVAL & INSTALLATION

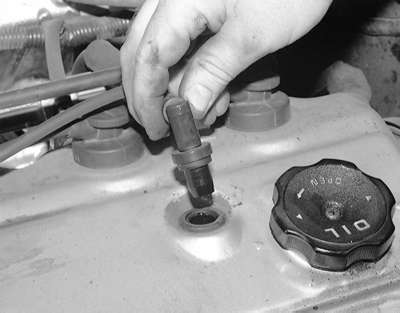

Fig. 1: Grasp the valve and gently remove it from the valve cover

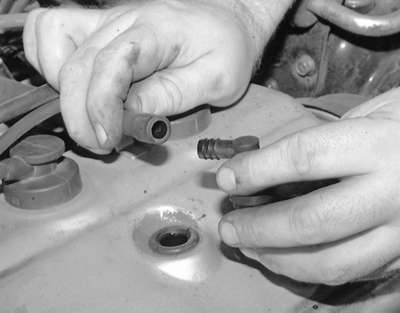

Fig. 2: Twist and pull on the valve to remove it from the hose

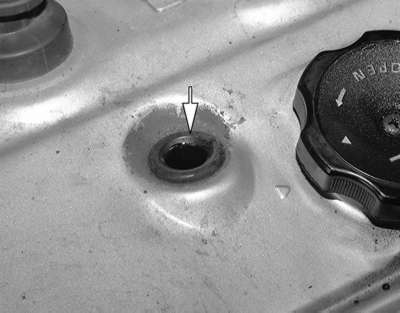

Fig. 3: Inspect the grommet and replace if cracked or leaking oil

  1. Disconnect the negative battery cable.
  2. If necessary for access, remove the air intake hose and air cleaner assembly.
  3. If necessary, unfasten the retaining clamp, then disconnect the ventilation hose from the PCV valve.
  4. Remove the PCV valve from the camshaft (rocker) cover.

    To install:

  5. Install the PCV valve into the rocker cover. If the valve is threaded, tighten the valve until snug.
  6. Reconnect the ventilation hose to the valve.
  7. If removed, install the air intake hose and the air cleaner assembly.
  8. Connect the negative battery cable.
