NOTE: To avoid confusion, remove and tag the spark plug wires one at a time, for replacement.
If a distributor is not keyed for installation with only one orientation, it could have been removed previously and rewired. The resultant wiring would hold the correct firing order, but could change the relative placement of the plug towers in relation to the engine. For this reason it is imperative that you label all wires before disconnecting any of them. Also, before removal, compare the current wiring with the accompanying illustrations. If the current wiring does not match, make notes in your book to reflect how your engine is wired.

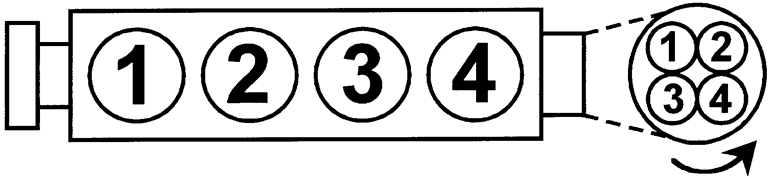

| Fig. 1: 1.5L (4G15) and 1993–96 1.8L (4G93) engines
Firing order: 1–3–4–2 Distributor rotation: Counterclockwise
|

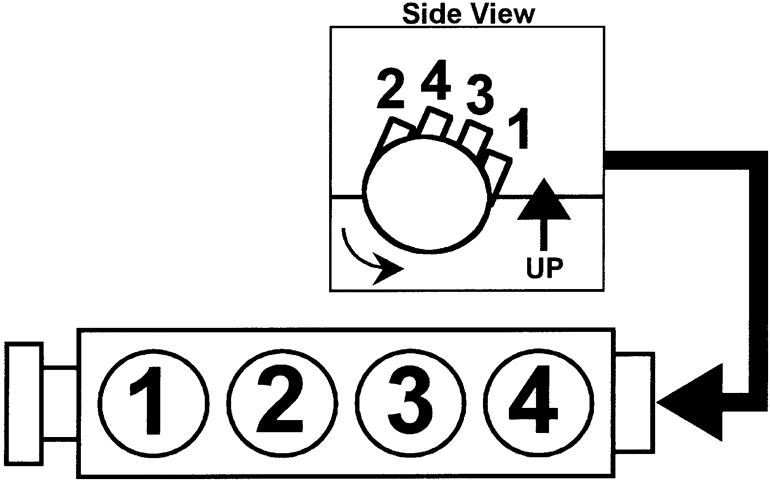

| Fig. 2: 2.0L (4G63) SOHC engine Firing order: 1–3–4–2
Distributor rotation: Clockwise
|

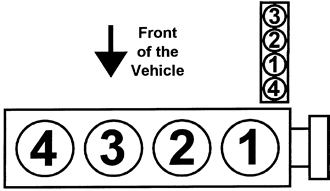

| Fig. 3: 1.6L (4G61) and 2.0L (4G63) DOHC engines Firing
order: 1–3–4–2 Distributorless ignition system
|

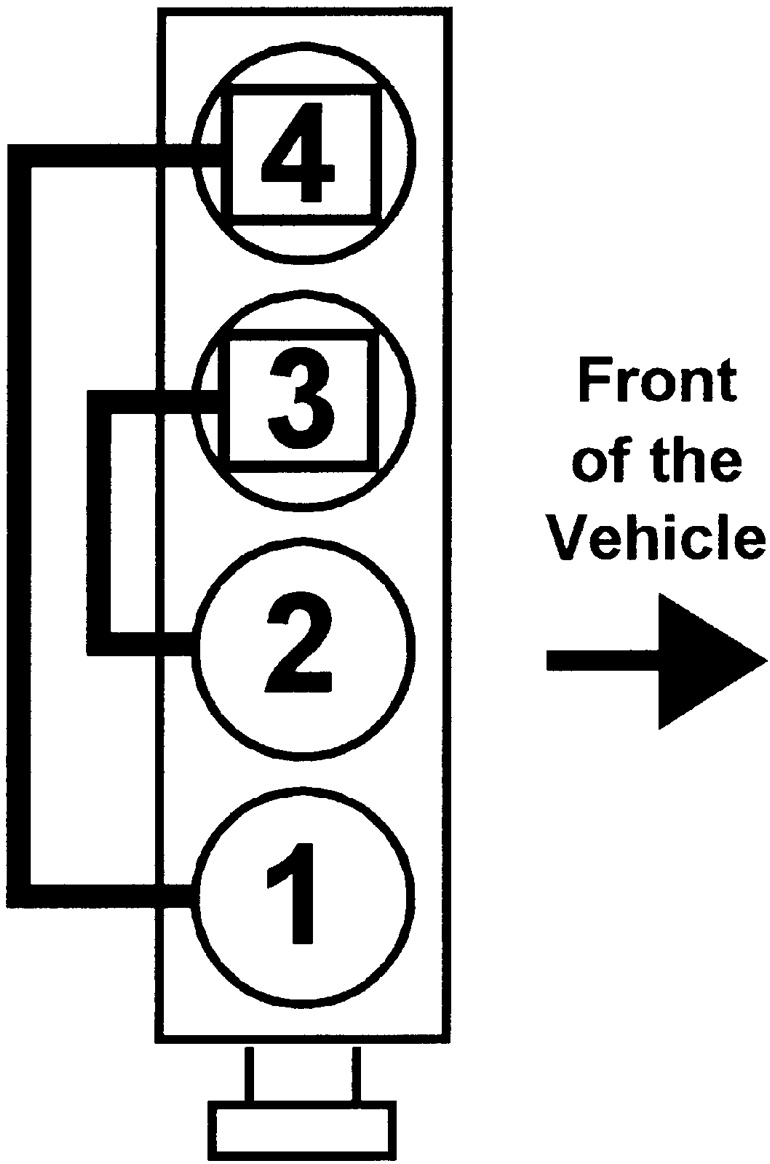

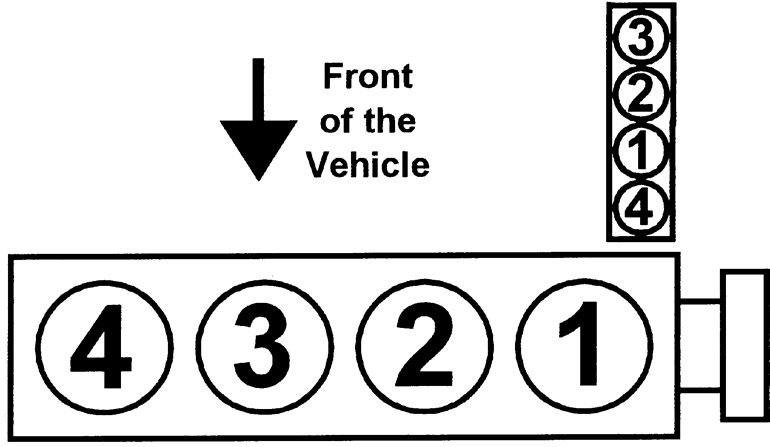

| Fig. 4: 1997–00 1.8L (4G93) and 1999–00 2.4L
(4G64) Engines with distributorless ignition Firing order: 1–3–4–2
Distributorless ignition system
|

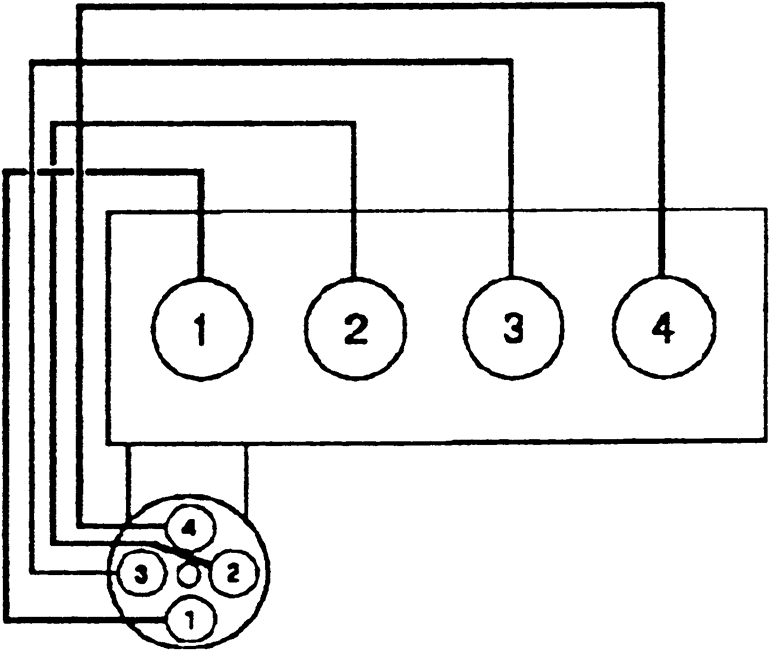

| Fig. 5: 2.4L (4G64) engine with distributor ignition
Firing order: 1–3–4–2 Distributor rotation: Counterclockwise
|

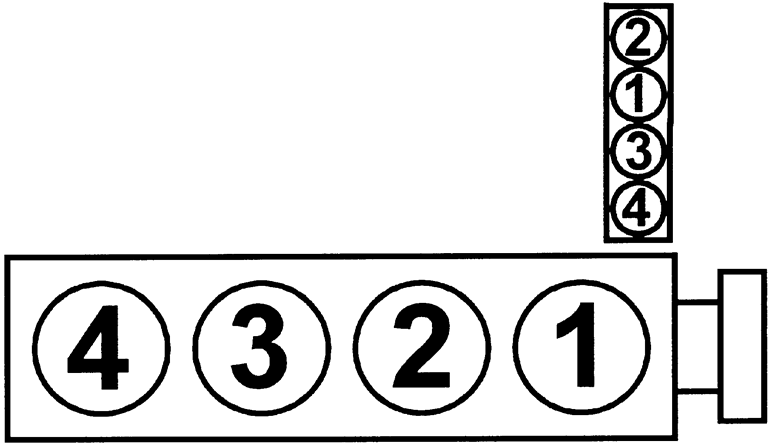

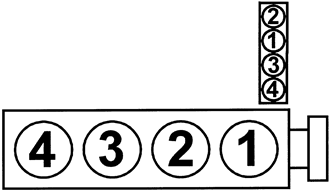

| Fig. 6: 2.4L (4G64) engine with distributor ignition
Firing order: 1–3–4–2 Distributorles ignition system
|

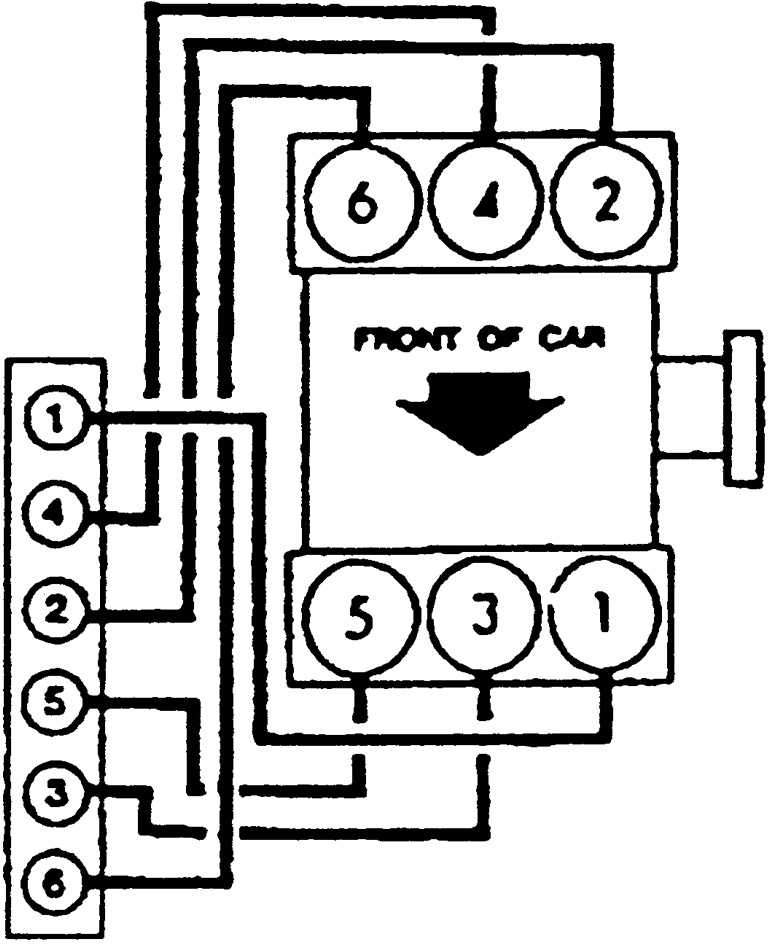

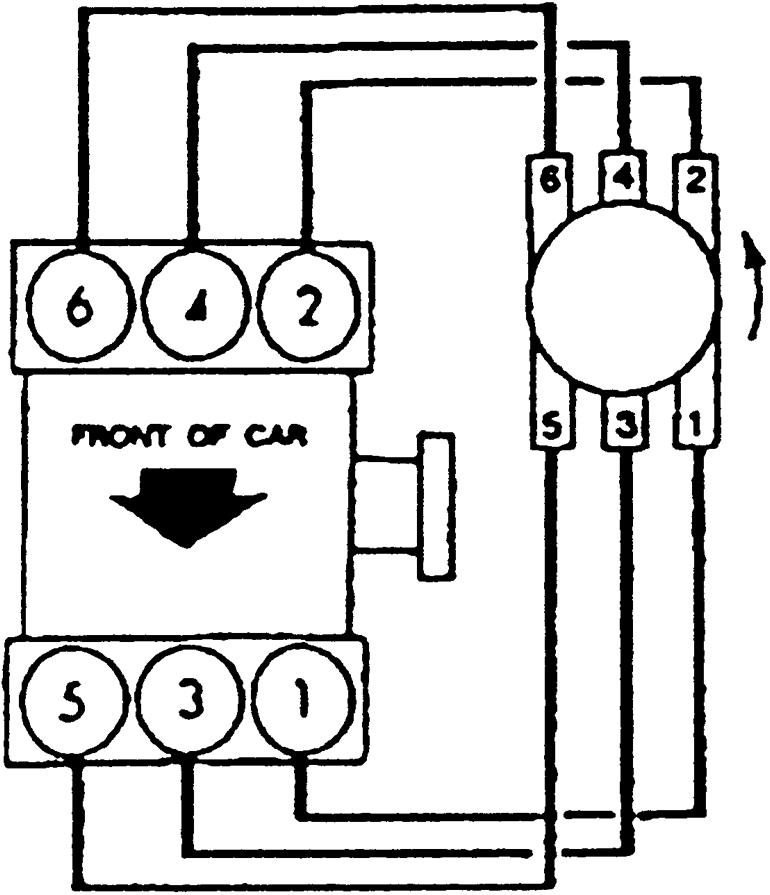

| Fig. 7: 3.0L (6G72) SOHC and 3.5L (6G74)engines Firing
order: 1–2–3–4–5–6 Distributor rotation:
Counterclockwise
|
| Fig. 8: 3.0L (6G72) DOHC engine Firing order: 1–2–3–4–5–6
Distributorless ignition system
|
