INSTALLATION

Timing Not Disturbed

1. Install a new distributor housing O-ring and lubricate with clean oil.
2. Install the distributor in the engine so the rotor is aligned with the matchmark on the housing and the housing is aligned with the matchmark on the engine. Be sure the distributor is fully seated and the distributor shaft is fully engaged.
3. Install the hold-down nut.
4. Attach the distributor harness connectors.
5. Install the distributor cap.
6. Connect the negative battery cable.

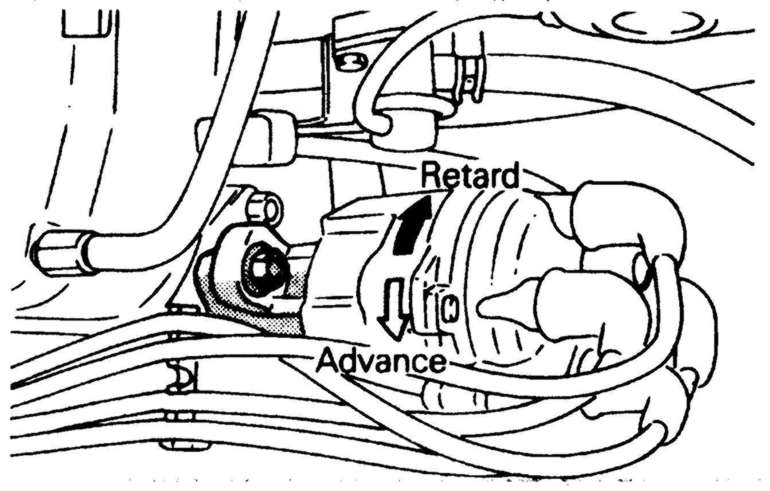

7. Adjust the ignition timing and tighten the hold-down nut to 8 ft. lbs. (11 Nm).

Timing Disturbed

1. Install a new distributor housing O-ring and lubricate with clean oil.

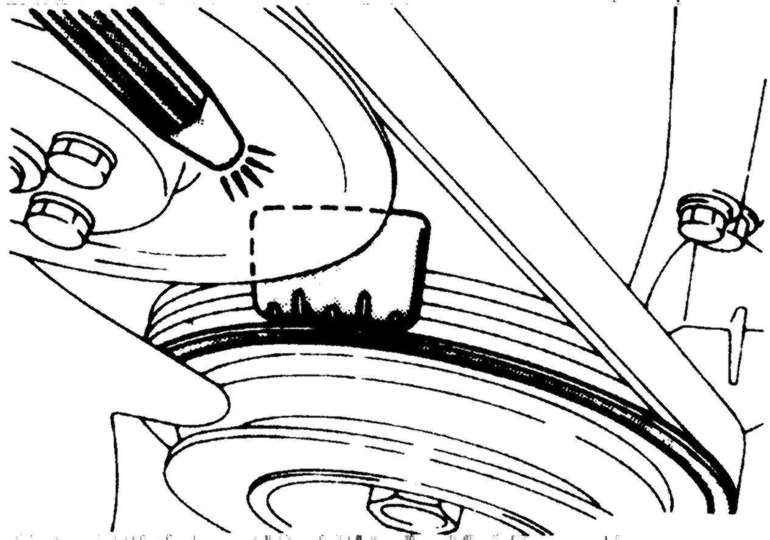

2. Position the engine so the No. 1 piston is at Top Dead Center (TDC) of its compression stroke and the mark on the vibration damper is aligned with 0 on the timing indicator.
3. Align the distributor housing and gear mating marks. Install the distributor in the engine so the slot or groove of the distributor's installation flange aligns with the distributor installation stud in the engine block. Be sure the distributor is fully seated. Inspect alignment of the distributor rotor making sure the rotor is aligned with the position of the No. 1 ignition wire in the distributor cap.
4. Install the hold-down nut.
5. Attach the distributor harness connectors.
6. Install the distributor cap.
7. Connect the negative battery cable.
8. Adjust the ignition timing and tighten the hold-down nut to 8 ft. lbs. (11 Nm).
