REMOVAL & INSTALLATION

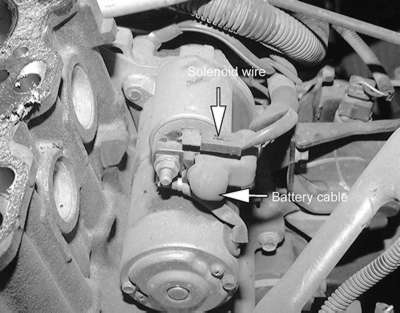

Fig. 1: Remove the starter electrical connections, noting their locations

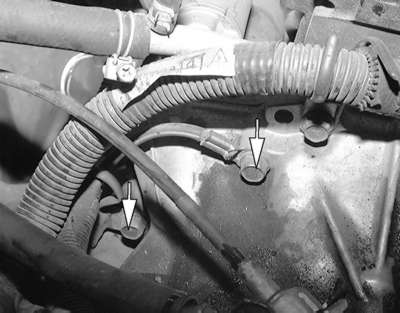

Fig. 2: Location of the two starter retaining bolts

  1. Disconnect the negative battery cable.
  2. Detach the air-flow sensor assembly connector and remove the breather hose.
  3. Remove the resonator retaining nuts and remove the air intake hose and resonator assembly as required.

    NOTE: Use care when removing the air cleaner cover because the air-flow sensor is attached and is a sensitive component.

  4. If equipped with Active-ECS suspension, remove the air compressor as follows:
    1. Detach the two electrical connectors, from the compressor.
    2. Disconnect the air line at the compressor.
    3. Remove the three mounting bolts, securing the compressor to the chassis.
  5. Raise the vehicle and support safely.
  6. Remove the engine undercover.
  7. Remove the heat shield from beneath the intake manifold on the 1.5L engine.
  8. If necessary, detach the speedometer cable connector at the transaxle end.
  9. Detach the starter motor electrical connections.
  10. Remove the starter motor mounting bolts and remove the starter.
  11. The installation is the reverse of the removal procedure. Tighten the starter mounting bolts to 22 ft. lbs. (31 Nm).
  12. Connect the negative battery cable and check the starter for proper operation.
