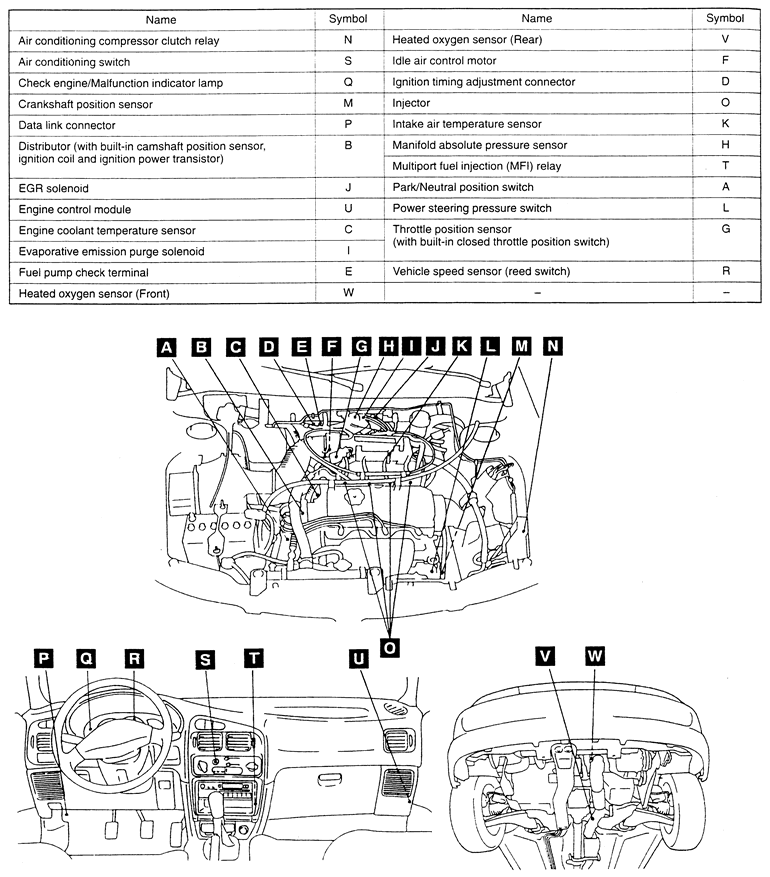

| Electronic engine control component locations — 1.5L
engine
|

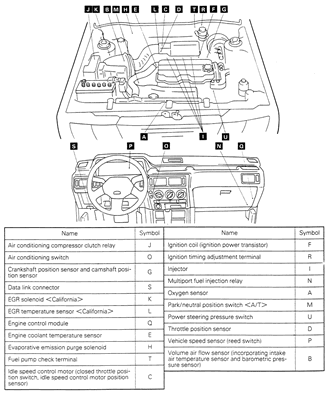

| Electronic engine control component locations — 1.6L
engine
|

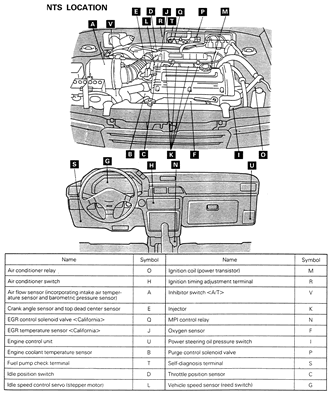

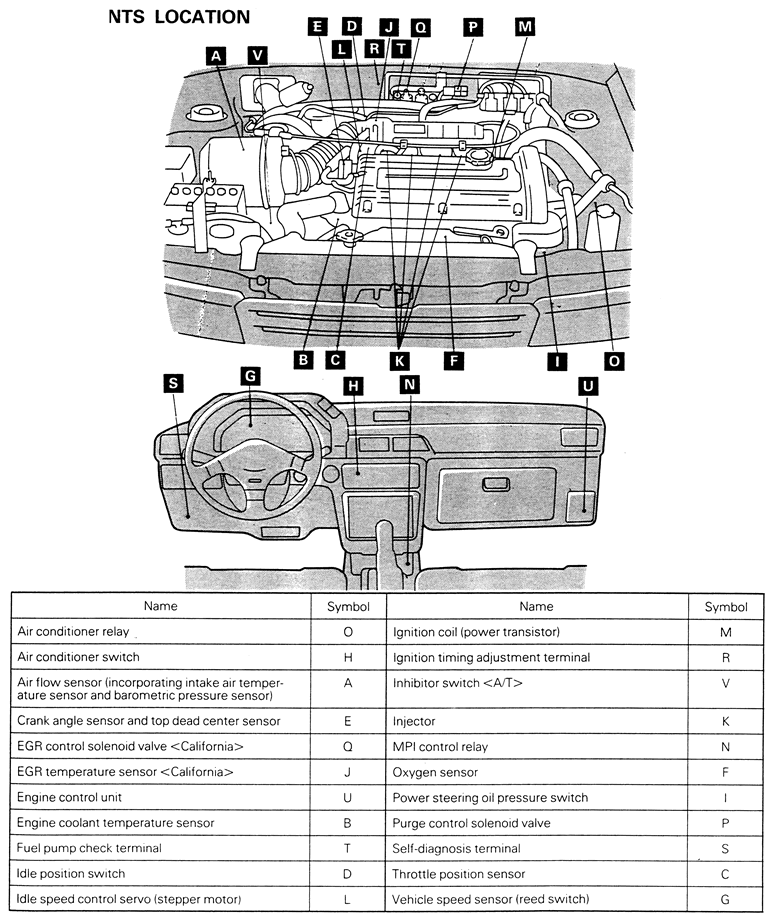

| Electronic engine control component locations — 2.0L
SOHC engine
|

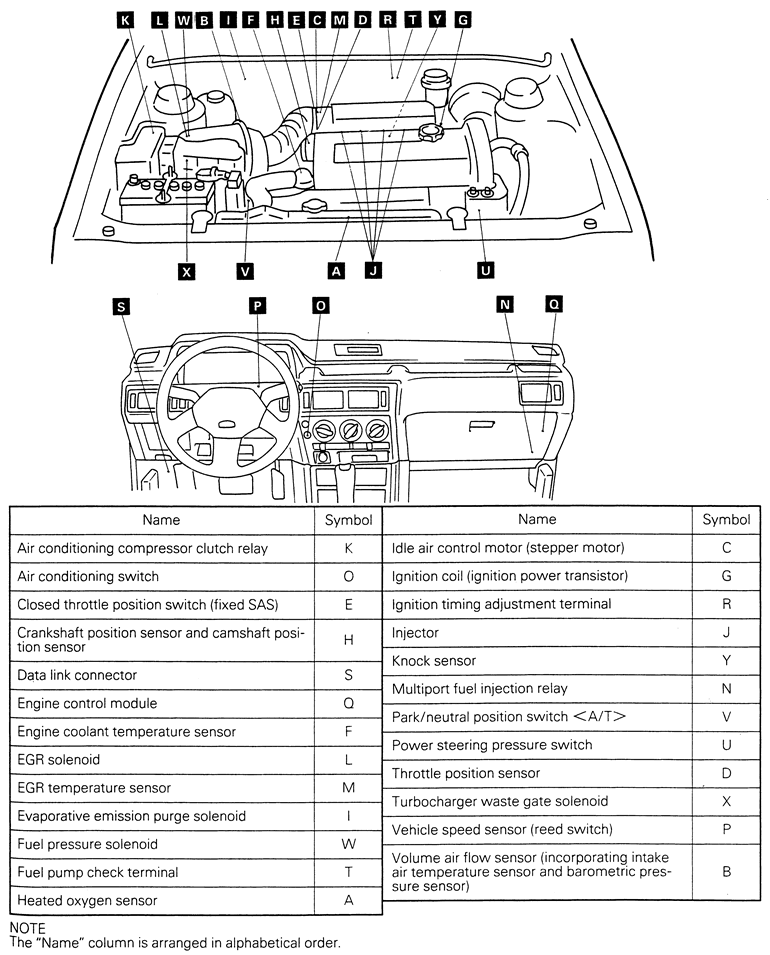

| Electronic engine control component locations — 2.0L
DOHC engine
|

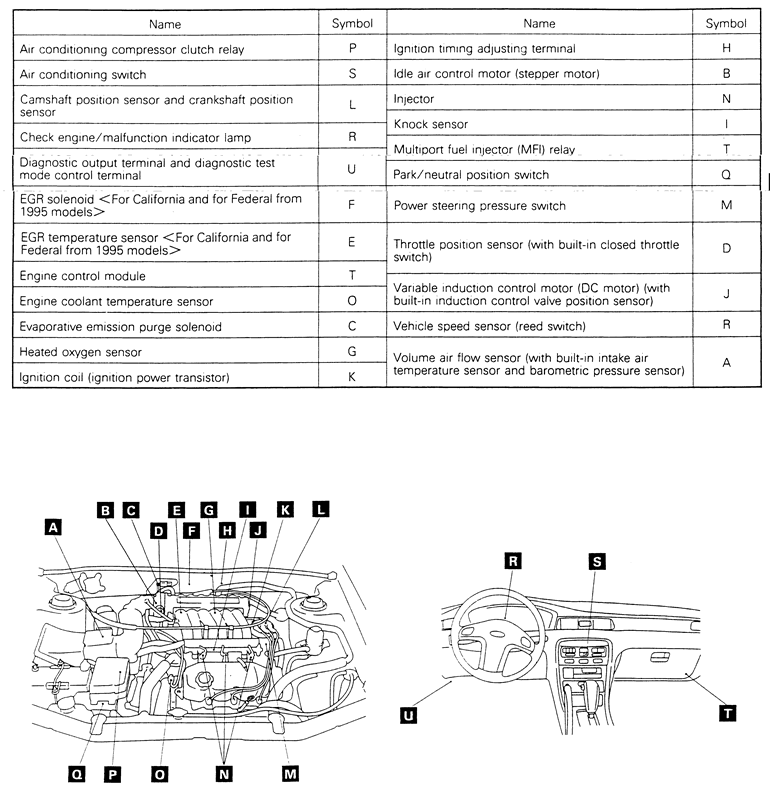

| Electronic engine control component locations — 3.0L
SOHC engine
|

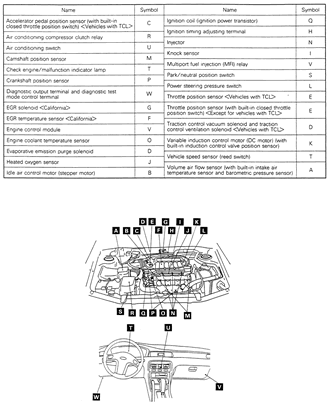

| Electronic engine control component locations — 3.0L
DOHC engine
|
| Electronic engine control component locations — 3.5L
engine
|

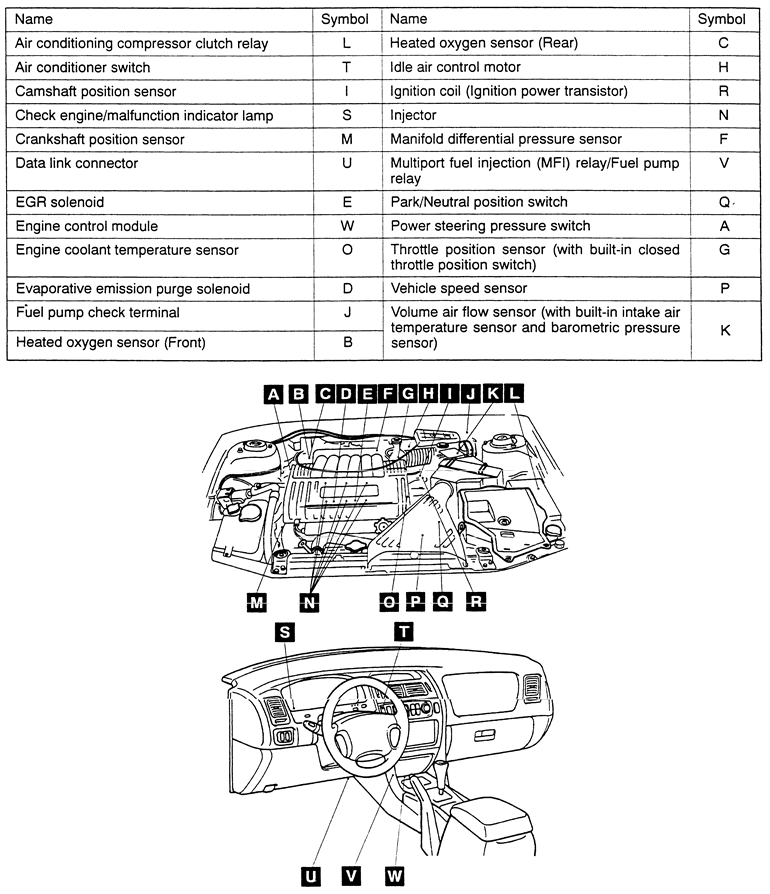

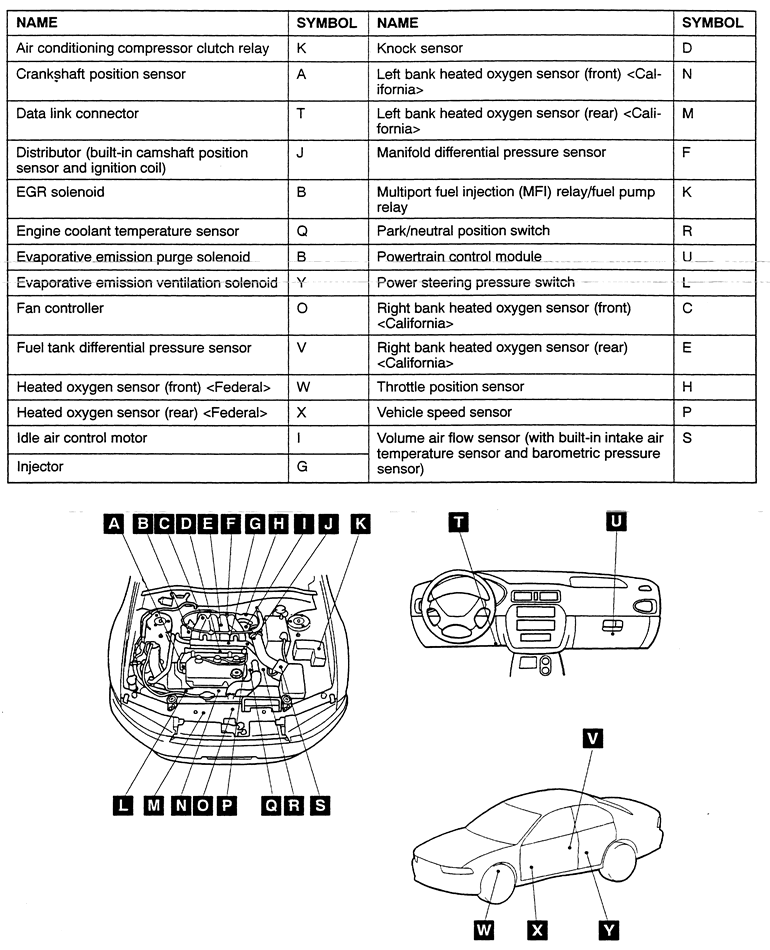

| Electronic engine control component locations — 1999–00
Galant with the 3.0L SOHC engine
|
