REMOVAL & INSTALLATION

EVAP Canister

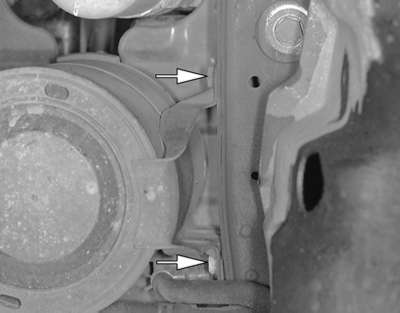

Fig. 1: Remove the canister retaining bolts and remove the canister

  1. Disconnect the negative battery cable.
  2. If necessary, raise and safely support the vehicle, remove the front passenger side wheel, then remove the splash shield.
  3. Tag and disconnect all necessary vacuum lines.
  4. Unfasten and retaining bolts and/or straps, then remove the canister from the vehicle
  5. Installation is the reverse of the removal procedure.
Solenoid Valves

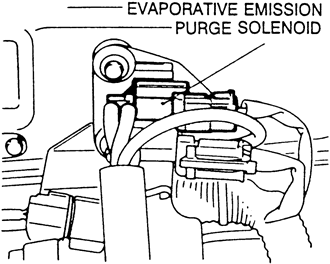

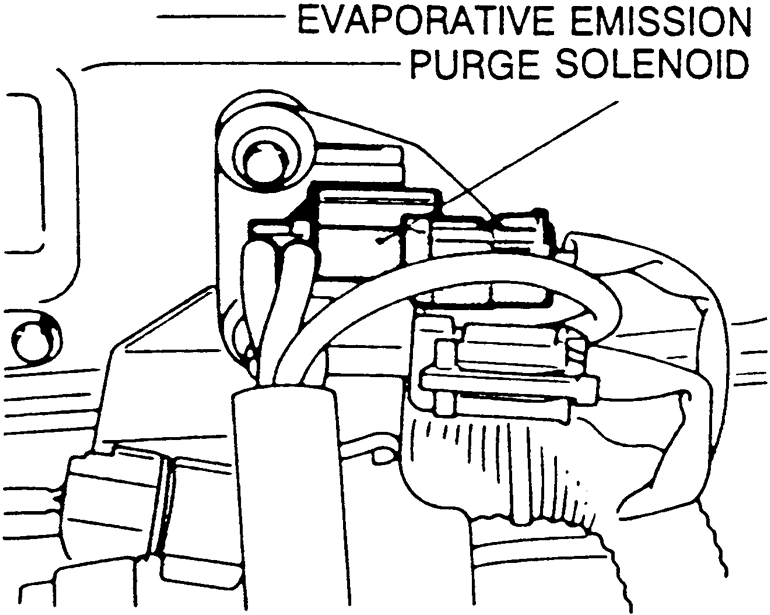

Fig. 2: Evaporative emission purge solenoid location–2.0L DOHC engine

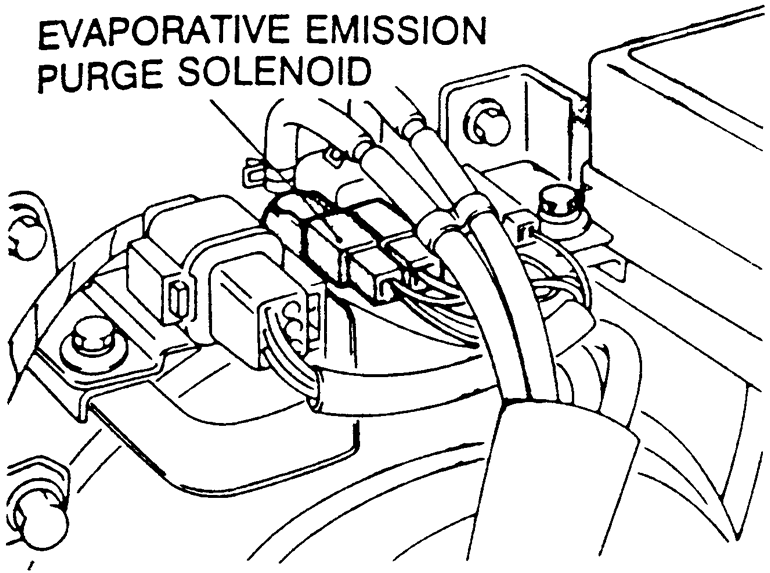

Fig. 3: Location of the evaporative emission purge solenoid — 1990–93 2.0L DOHC turbo engine

  1. Disconnect the negative battery cable.
  2. Label and remove the vacuum and electrical harness connections from the purge control solenoid.
  3. Remove the solenoid and mounting bracket from the engine compartment.
  4. Installation is the reverse of the removal procedure.
