REMOVAL & INSTALLATION

Fig. 1: Release the retaining clips from the air cleaner housing

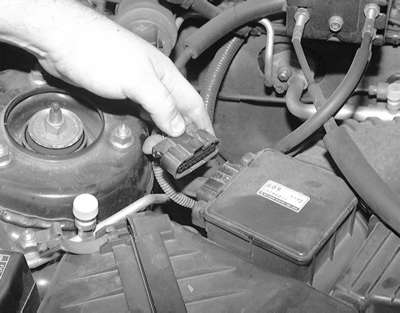

Fig. 2: Unplug the MAF sensor connector

Fig. 3: Detach the breather hose from the air inlet tube

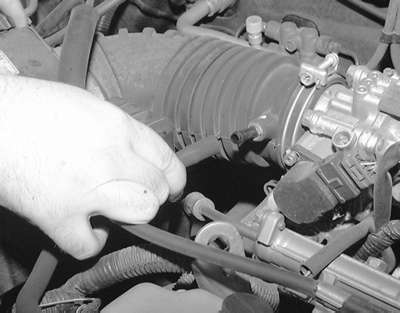

Fig. 4: Loosen the clamp on the air outlet tube at the throttle body . . .

Fig. 5: . . . then remove the air outlet tube and upper housing from the lower housing

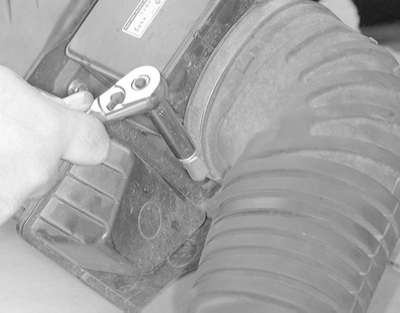

Fig. 6: Loosen the hose clamp retaining screw . . .

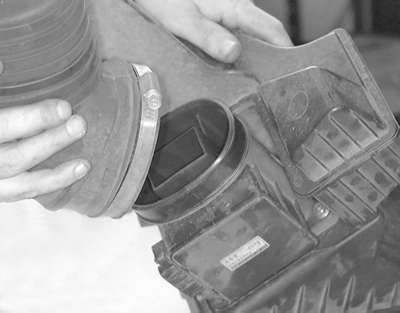

Fig. 7: . . . then slide the outlet hose off of the MAF sensor

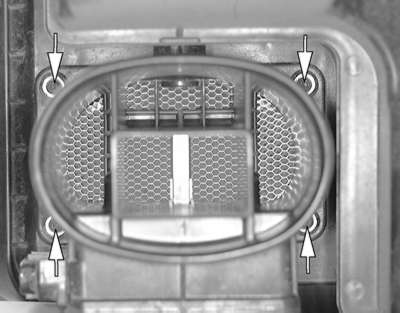

Fig. 8: Remove the four sensor-to-air cleaner housing retaining nuts . . .

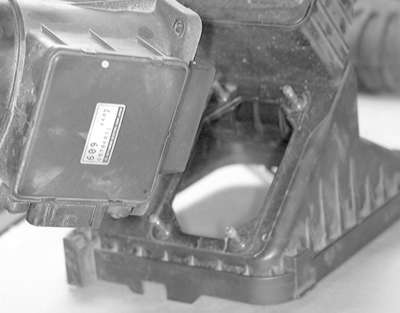

Fig. 9: . . . then remove the MAF sensor from the air cleaner cover

  1. Disconnect the negative battery cable.
  2. Release the retaining clips from the air cleaner housing.
  3. Loosen the clamp on the air outlet tube at the throttle body.
  4. Remove the breather hose and detach the connector from the MAF sensor.
  5. Remove the air outlet tube and upper housing from the lower housing.
  6. Loosen the hose clamp and slide the outlet hose off of the MAF sensor.
  7. Remove the four sensor-to-air cleaner housing retaining nuts.
  8. Remove the sensor from the air cleaner upper housing.

    NOTE: Handle the sensor assembly carefully, protecting it from impact, extremes of temperature and/or exposure to shop chemicals.

  9. Installation is the reverse of the removal procedure.
