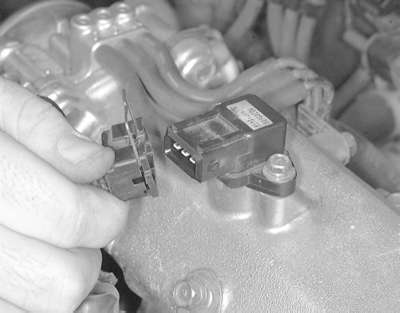

| Fig. 1: Detach the electrical connector from the MAP
sensor
|

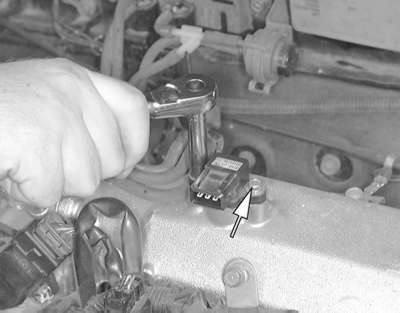

| Fig. 2: Remove the two MAP sensor retaining bolts . .
.
|

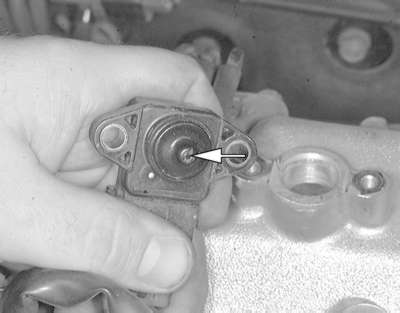

| Fig. 3: . . . then remove the sensor from the intake
manifold. Inspect the tip of the sensor and replace if damaged or plugged
|
