AIR BAG (SUPPLEMENTAL RESTRAINT SYSTEM)

AIR BAG (SUPPLEMENTAL RESTRAINT SYSTEM)

CAUTION
Some vehicles are equipped with an air bag system, also known as the Supplemental Inflatable Restraint (SIR) or Supplemental Restraint System (SRS). The system must be disabled before performing service on or around system components, steering column, instrument panel components, wiring and sensors. Failure to follow safety and disabling procedures could result in accidental air bag deployment, possible personal injury and unnecessary system repairs.

Fig. 1: To prevent personal injury, ALWAYS carry a live air bag facing away from you in case of accidental deployment

Fig. 2: To prevent personal injury, ALWAYS place a live airbag with the cover facing up in case of accidental deployment

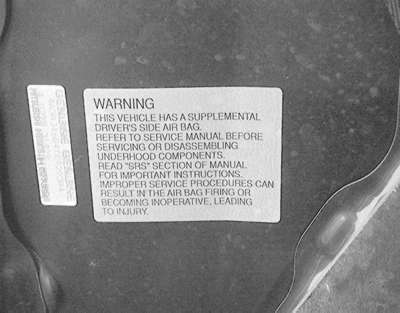

Fig. 3: Be sure to observe any precaution labels on the vehicle regarding the air bag system

Several precautions must be observed when handling the inflator module to avoid accidental deployment and possible personal injury.

Never carry the inflator module by the wires or connector on the underside of the module.
When carrying a live inflator module, hold securely with both hands, and ensure that the bag and trim cover are pointed away.
Place the inflator module on a bench or other surface with the bag and trim cover facing up.
With the inflator module on the bench, never place anything on or close to the module which may be thrown in the event of an accidental deployment.

AIR BAG (SUPPLEMENTAL RESTRAINT SYSTEM)

General Information

SERVICE PRECAUTIONS
