Gauges

REMOVAL & INSTALLATION

Fig. 1: Release the cluster lens retaining tabs . . .

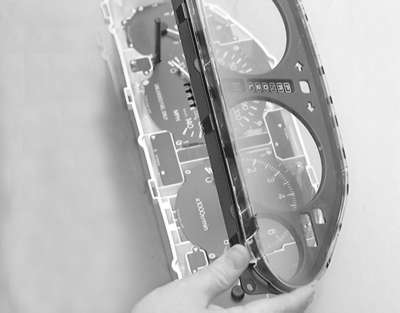

Fig. 2: . . . then remove the instrument cluster lens and cover assembly

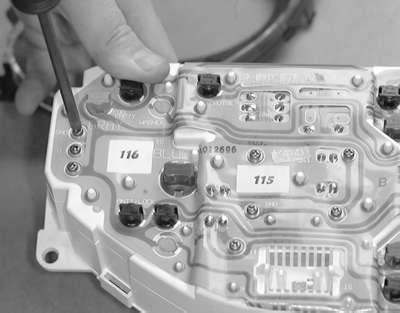

Fig. 3: Remove the gauge retaining screws . . .

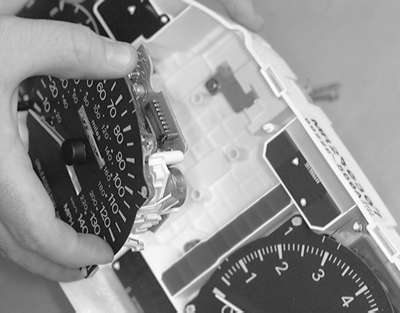

Fig. 4: . . . then carefully lift the gauges from the instrument cluster to remove them

  1. Disconnect the negative battery cable.
  2. Remove the instrument cluster, as outlined earlier in this section.
  3. Remove the retaining screws for the instrument cluster lens and cover assembly. Remove the cover and lens.
  4. Remove the retaining screws for the gauge or warning lamp to be replaced, then remove the gauge or warning lamp.

    To install:

  5. Place the gauge or warning lamp into place and tighten the retaining screws.
  6. Install the instrument cluster lens and cover assembly.
  7. Install the instrument cluster.
  8. Connect the negative battery cable.
