REMOVAL & INSTALLATION

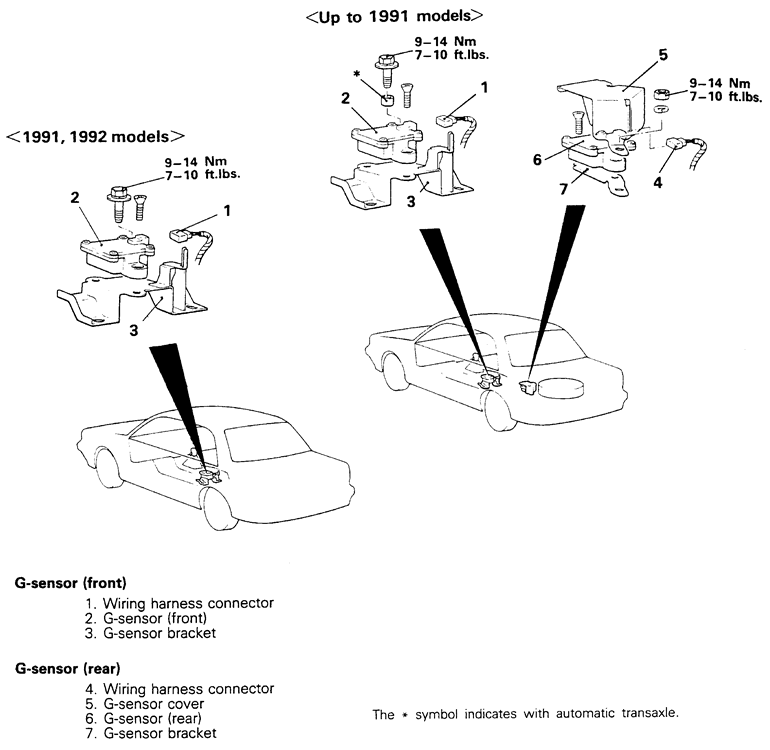

Fig. 1: Front and rear G-sensor mounting — 1990–93 AWD Galant

  1. For the front sensor, remove the console assembly.
  2. For the rear sensor, remove the trunk floor mat.
  3. Disconnect the G-sensor wiring harness.
  4. Remove the cover from the rear sensor. Remove the sensor from the bracket. Remove the bracket if desired.

    To install:

  5. Reinstall the bracket if it was removed.
  6. Install the G-sensor and connect the wiring harness. Tighten the retaining bolts to 8 ft. lbs. (11 Nm).
  7. Install the cover on the rear G-sensor.
  8. Install the console and/or the trunk floor mat or carpet.
