Door Handle/Latch Assembly

REMOVAL & INSTALLATION

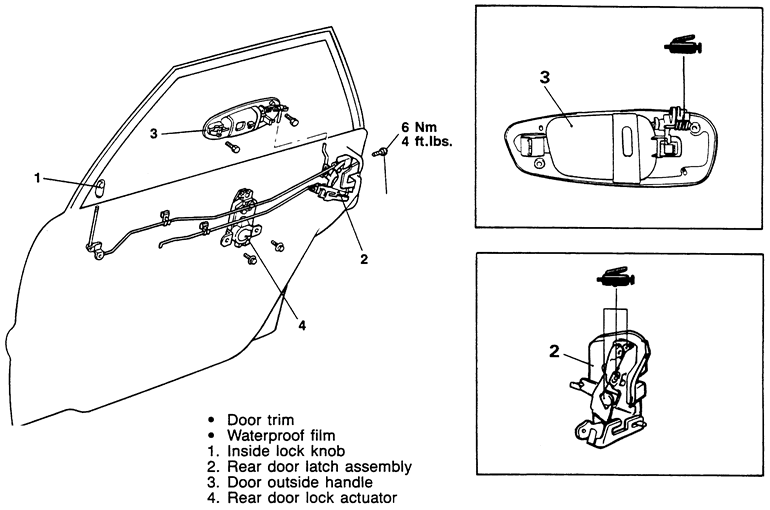

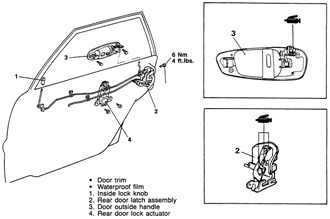

Fig. 1: Common door handle/latch mounting

  1. Disconnect the negative battery cable.
  2. Remove the door panel.
  3. Peel back the weathproofing film from the door.
  4. Remove the retaining clip and the lock rod from the handle assembly.
  5. Remove the retaining hardware and remove the handle from the door.
  6. The installation is the reverse of removal.
