Piston and Ring

POSITIONING

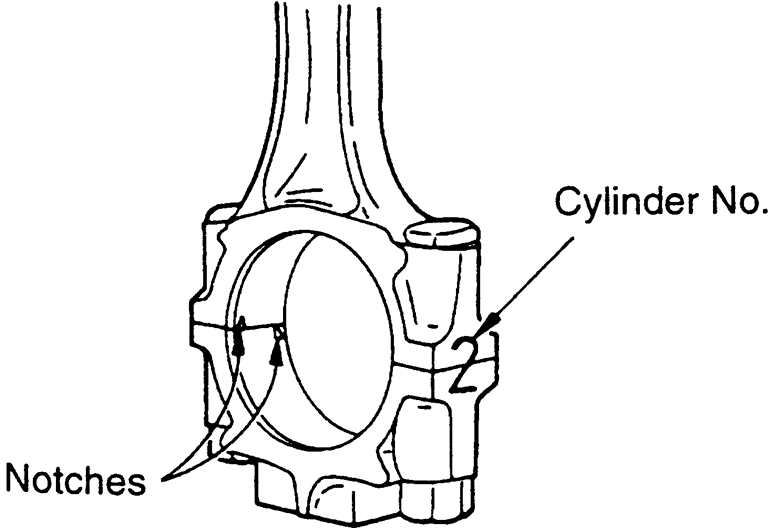

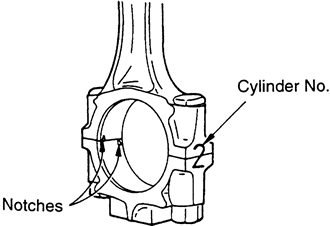

Fig. 1: Before removing the caps from the connecting rods, be sure to matchmark them as shown

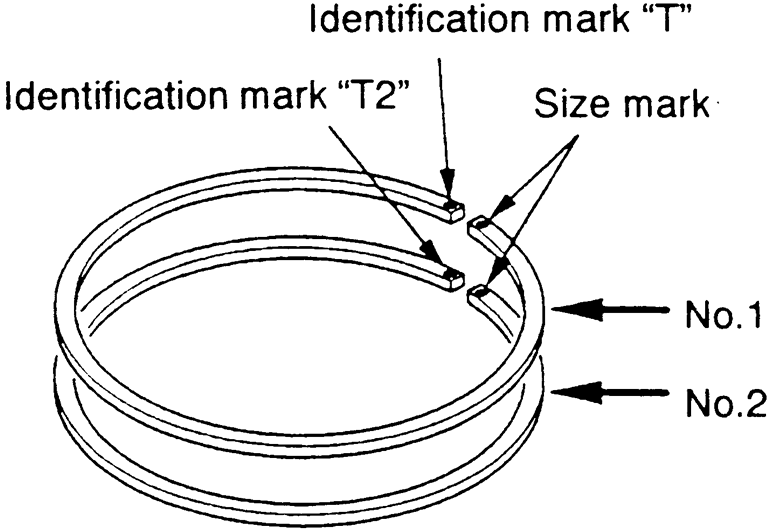

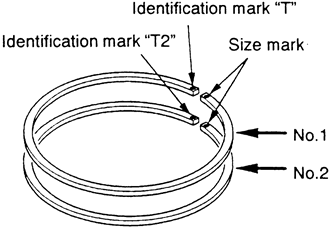

Fig. 2: 1.5L and 2.4L engines — compression ring identification mark locations

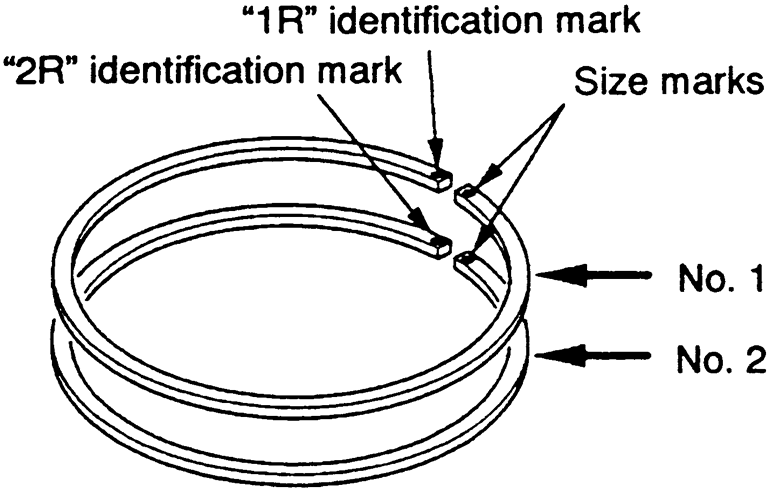

Fig. 3: 1.8L engine — compression ring identification mark locations

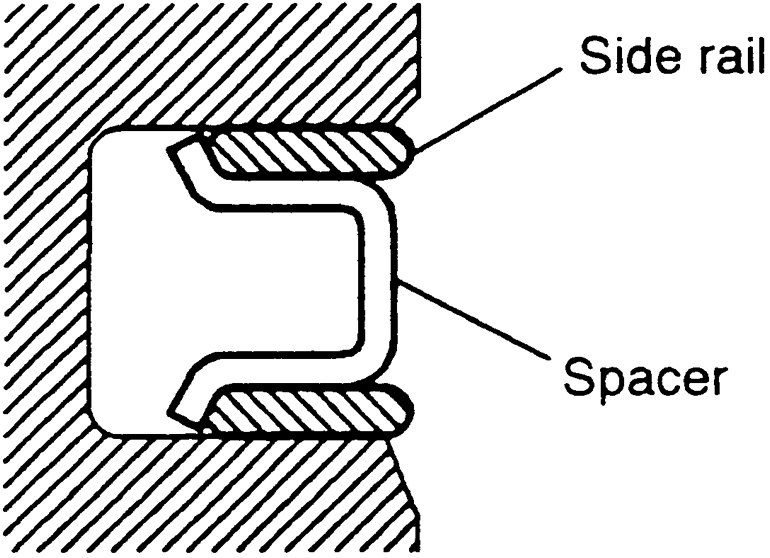

Fig. 4: 1.8L engine — oil side and spacer ring positioning

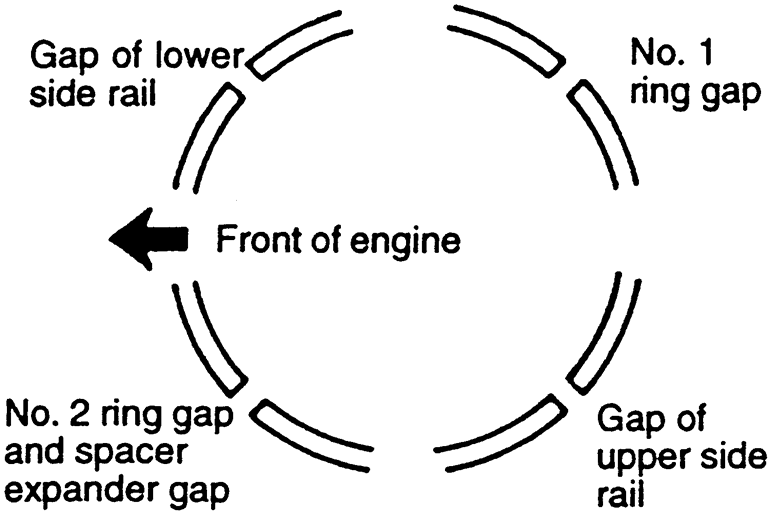

Fig. 5: Except 2.0L (420A) engines — piston ring end-gap spacing

Fig. 6: 2.0L (420A) engines — piston ring end-gap spacing

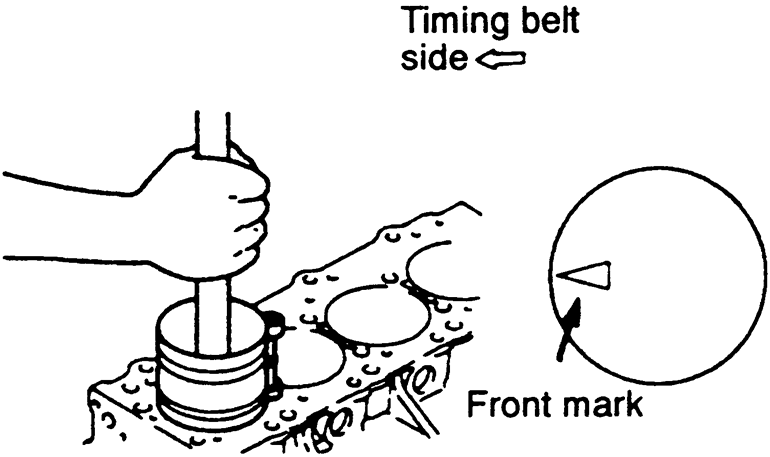

Fig. 7: 1.5L, 1.8L. 2.0L and 2.4L engines — piston-to-engine block mark location on the piston face

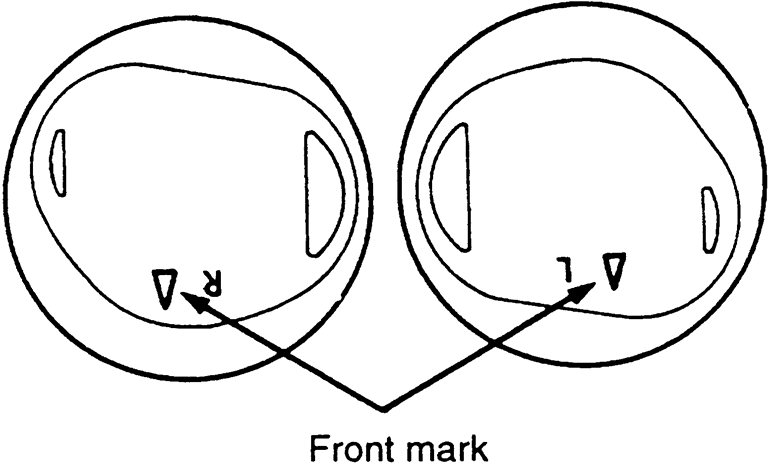

Fig. 8: 3.0L engine — piston-to-engine block mark locations

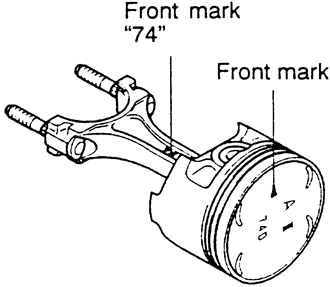

Fig. 9: 3.5L engine — piston and connecting rod assembly positioning
