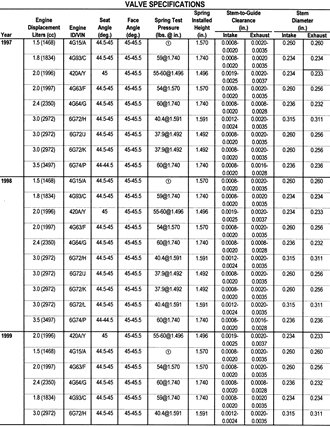

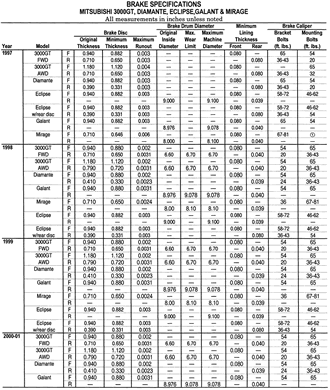

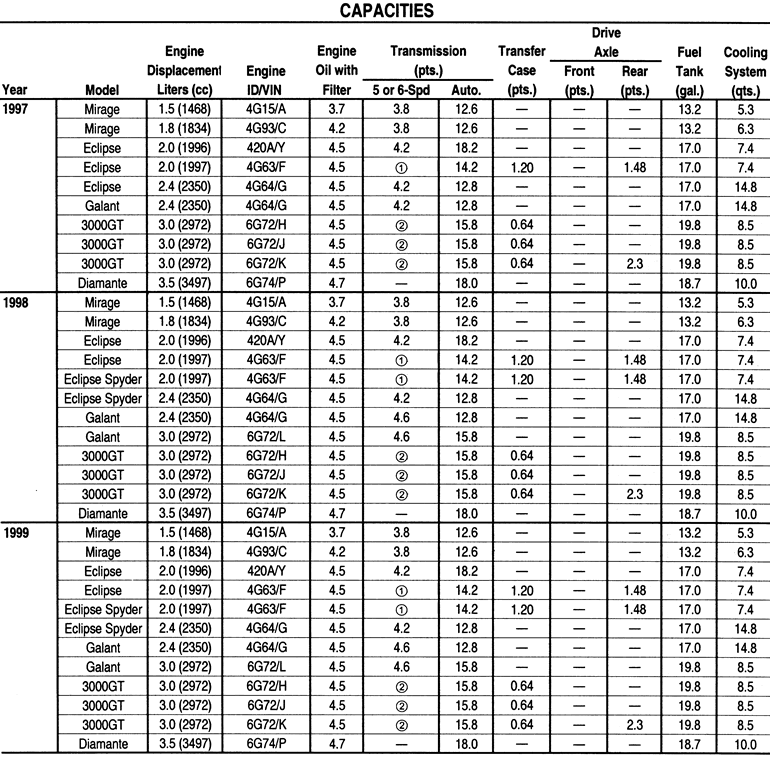

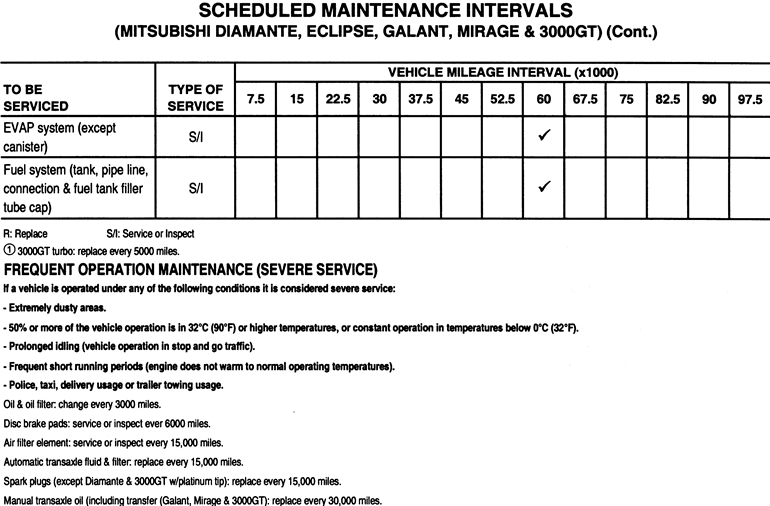

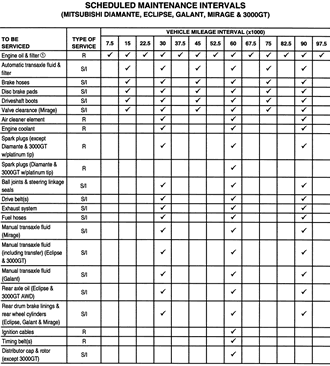

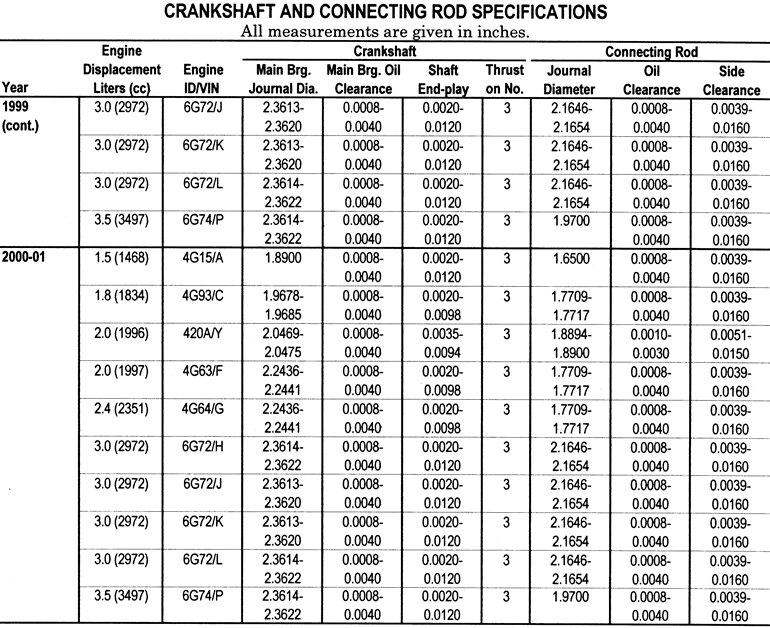

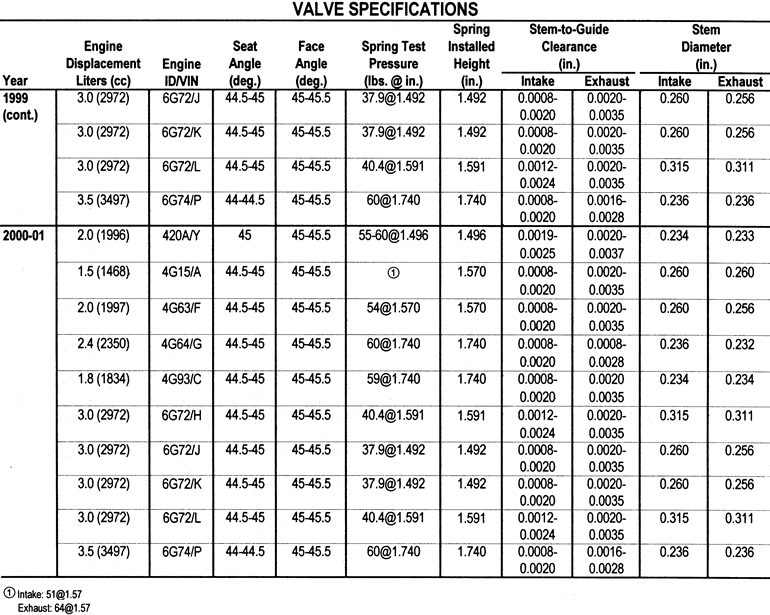

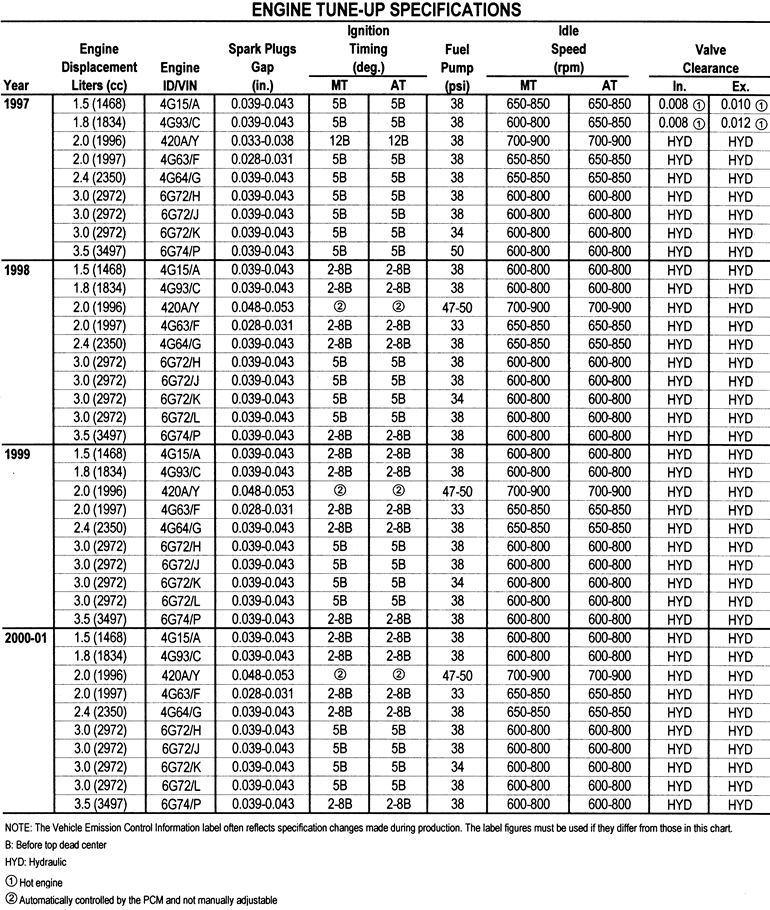

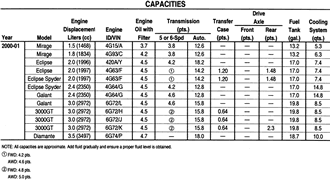

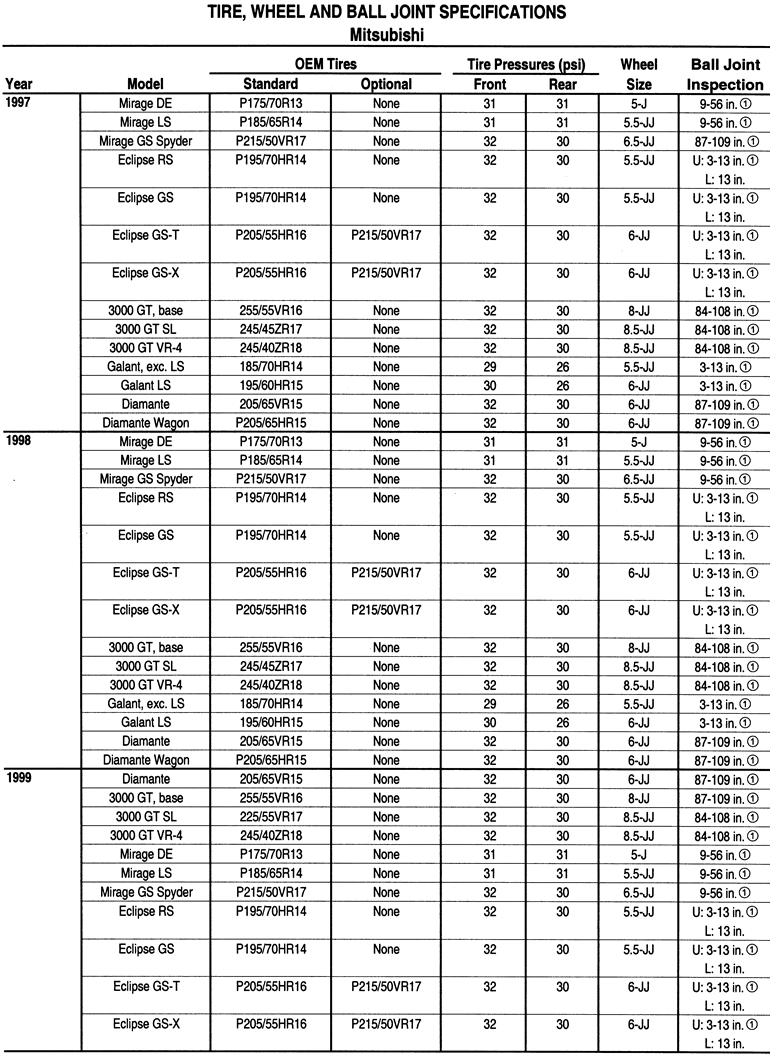

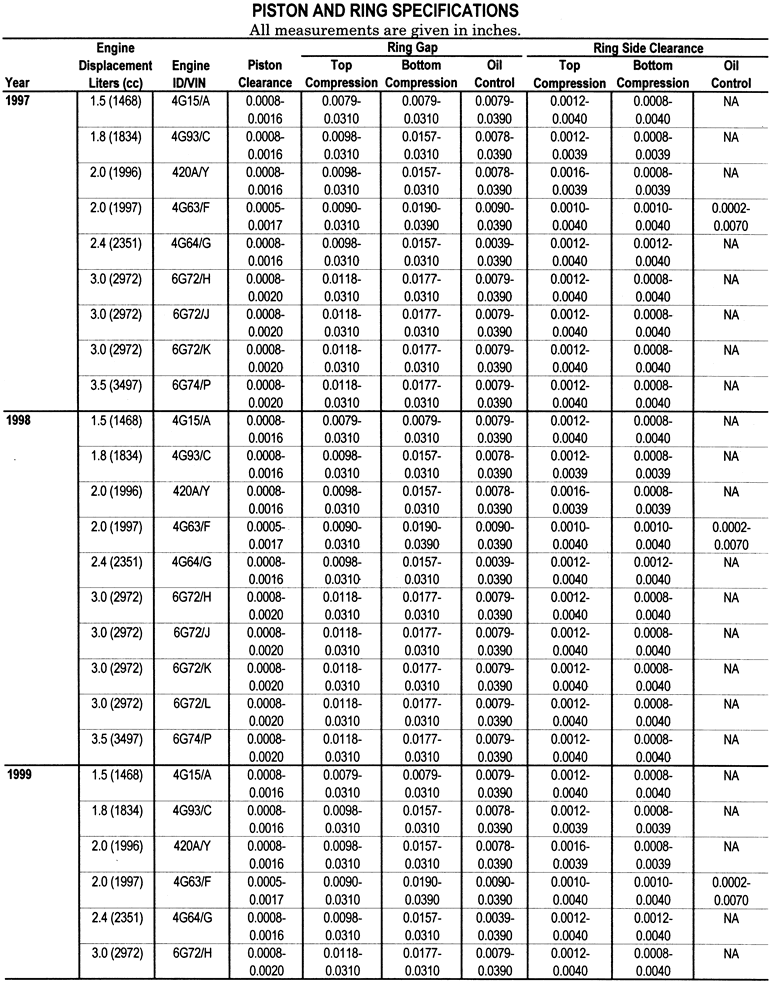

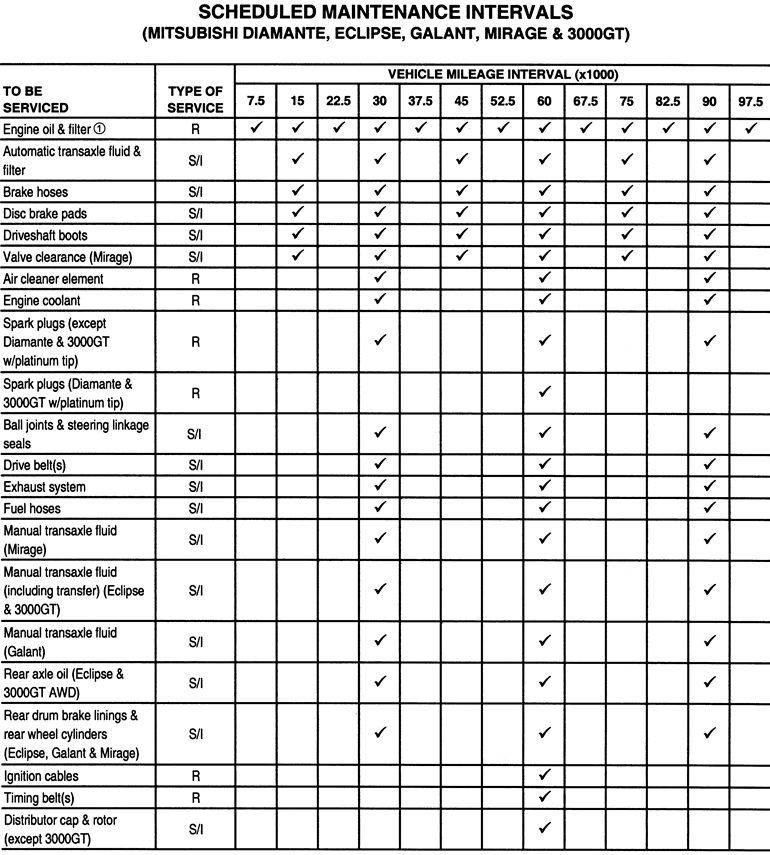

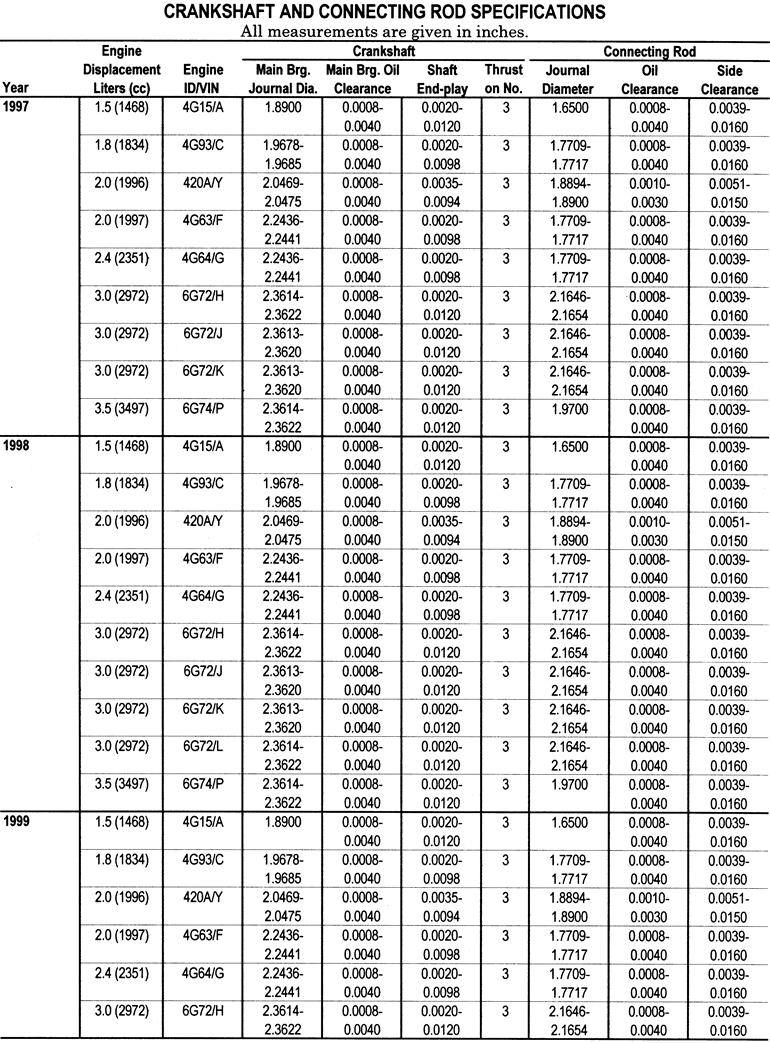

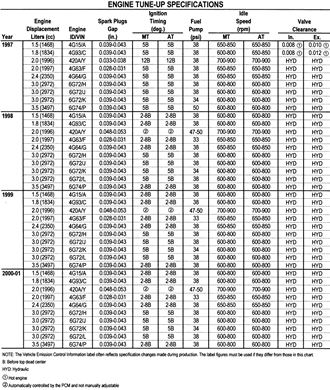

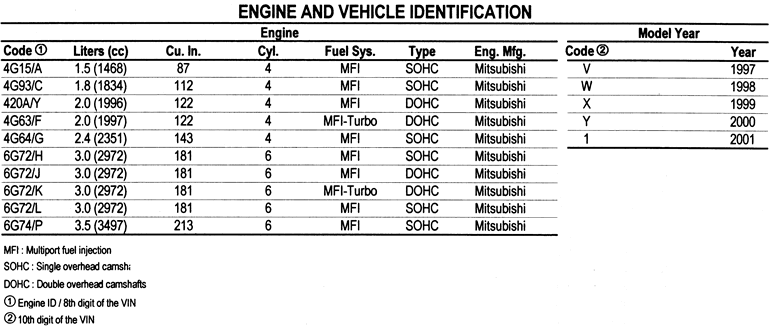

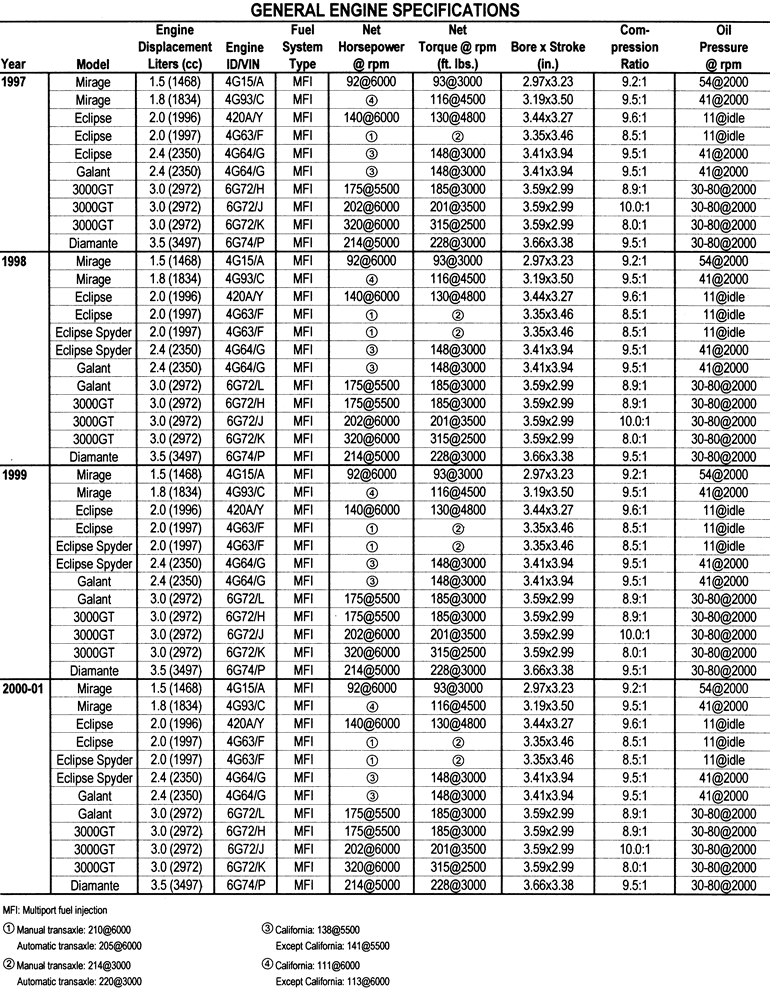

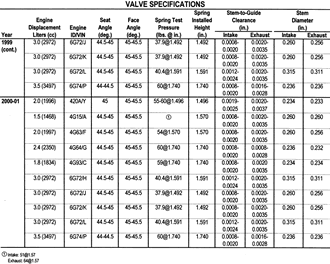

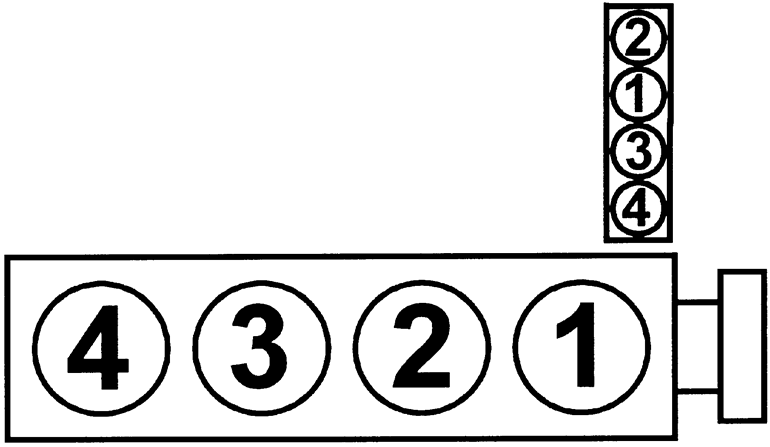

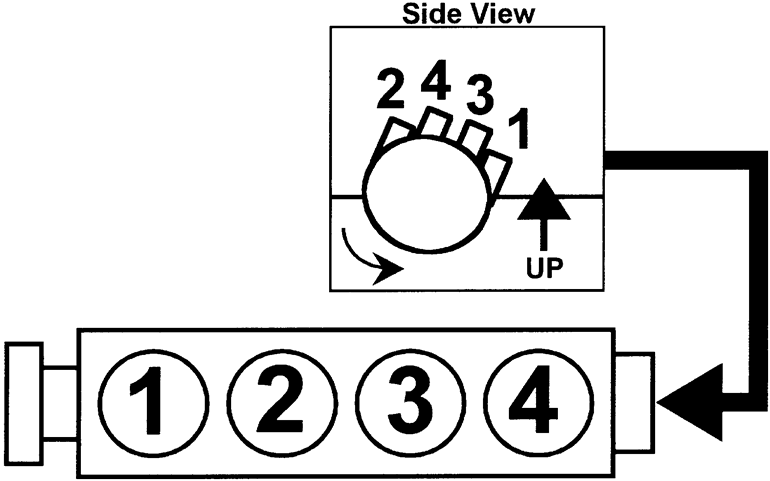

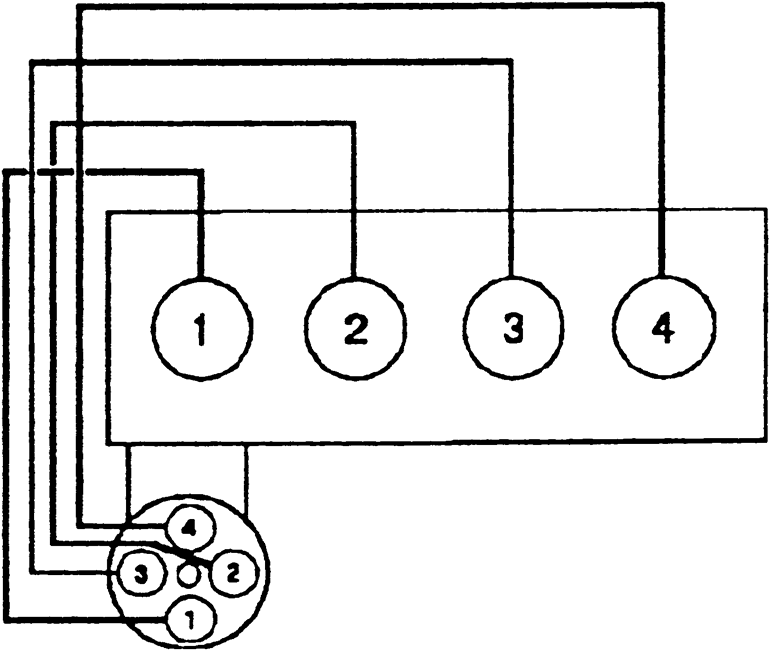

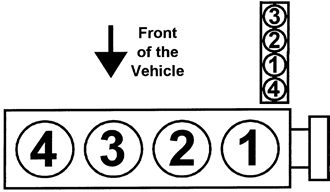

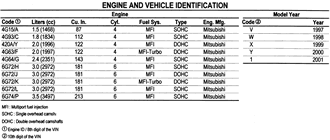

| Fig. 1: 1.5L (4G15) and 1.8L (4G93) Engines Firing order:
1–3–4–2 Distributor rotation: Counterclockwise
|

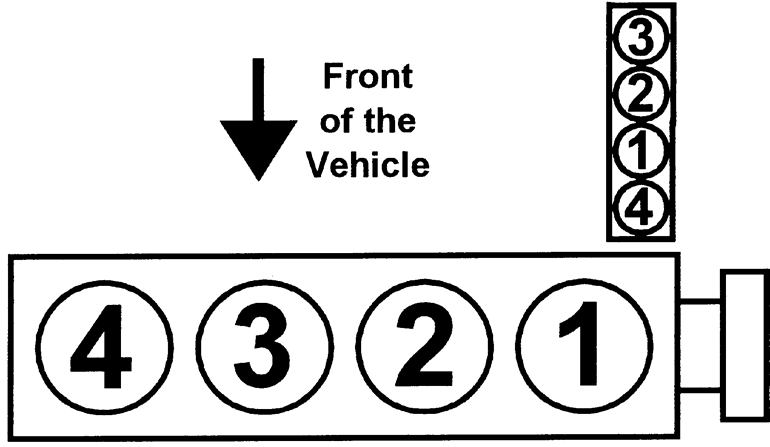

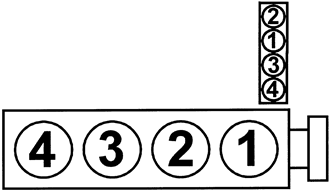

| Fig. 2: 2.0L (420A) Engine Firing order: 1–3–4–2
Distributorless ignition system
|
| Fig. 3: 2.0L (4G63) Engine without DIS Firing order:
1–3–4–2 Distributor rotation: Clockwise
|

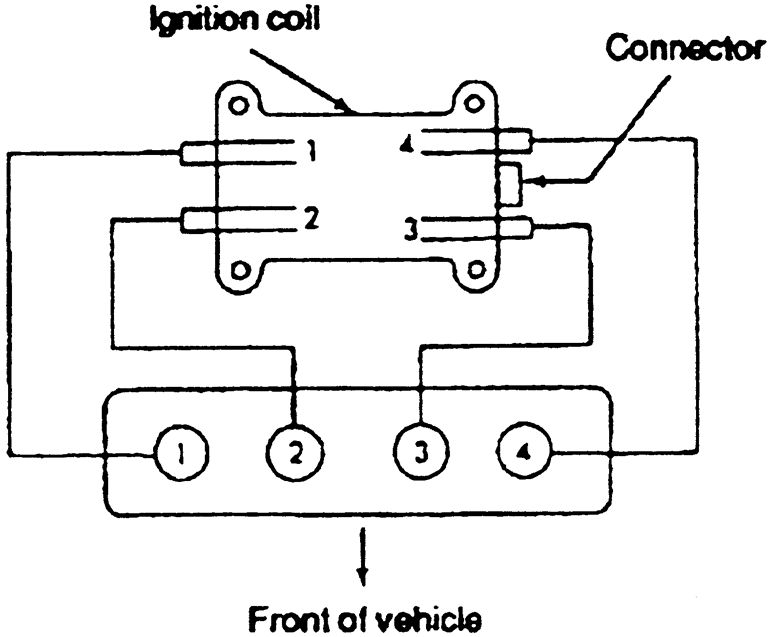

| Fig. 4: 2.0L (4G63) Engine with DIS Firing order: 1–3–4–2
Distributorless ignition system
|

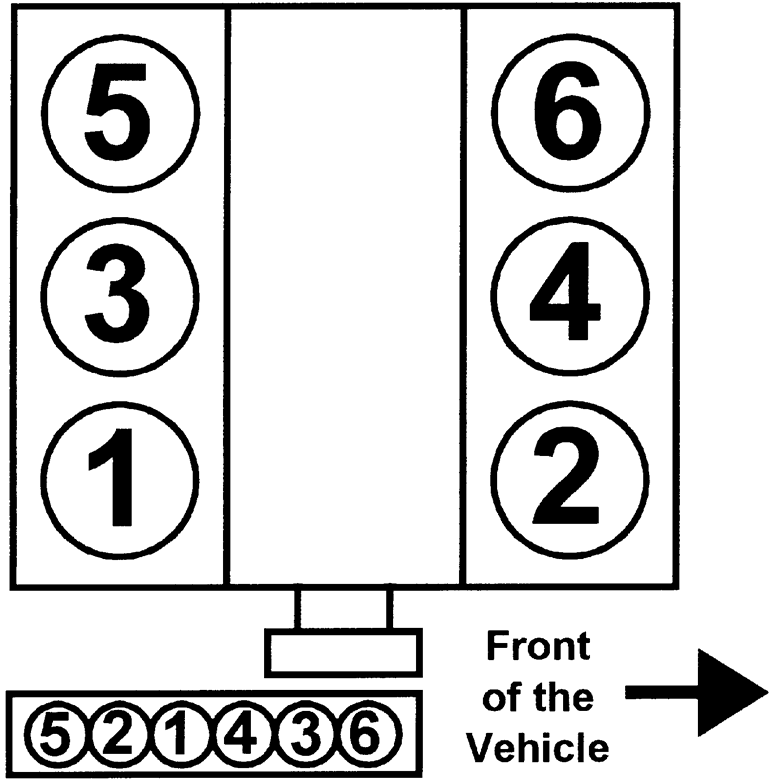

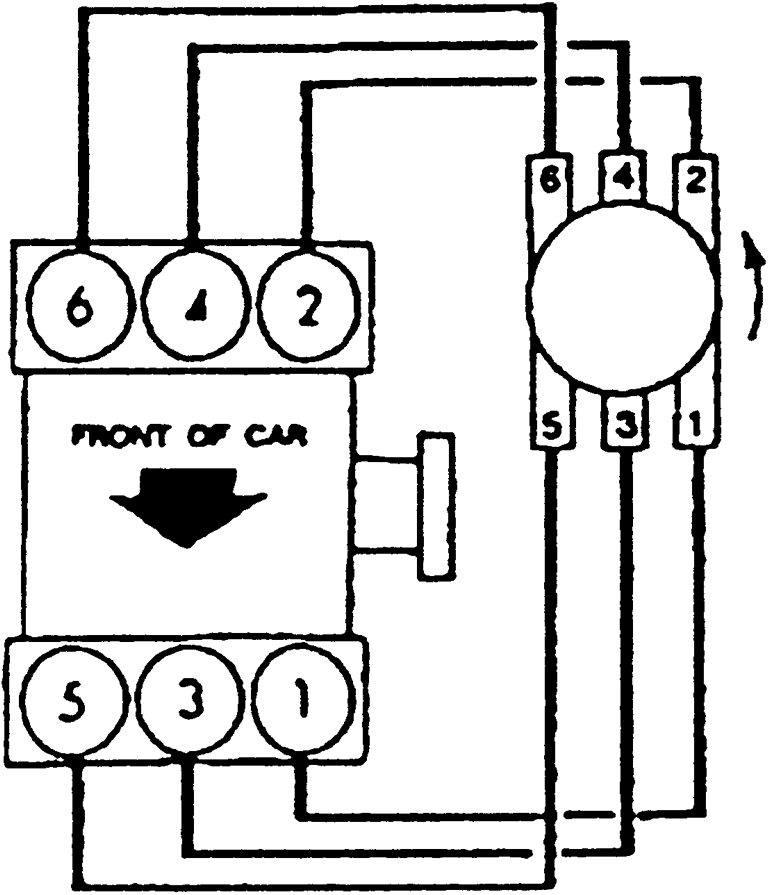

| Fig. 5: 2.4L (4G64) Engine without DIS Firing order:

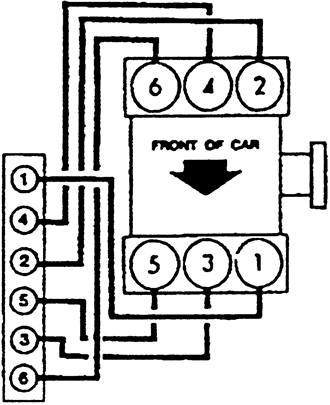

1–3–4–2 Distributor rotation: Counterclockwise
|
| Fig. 6: 2.4L (4G64) Engine with DIS Firing order: 1–3–4–2
Distributorless ignition system
|
| Fig. 7: 1997 3.0L (6G72) SOHC Engines Firing order: 1–2–3–4–5–6
Distributor rotation: Counterclockwise
|
| Fig. 8: 1997 3.0L (6G72) DOHC Engines Firing order: 1–2–3–4–5–6
Distributorless ignition system
|

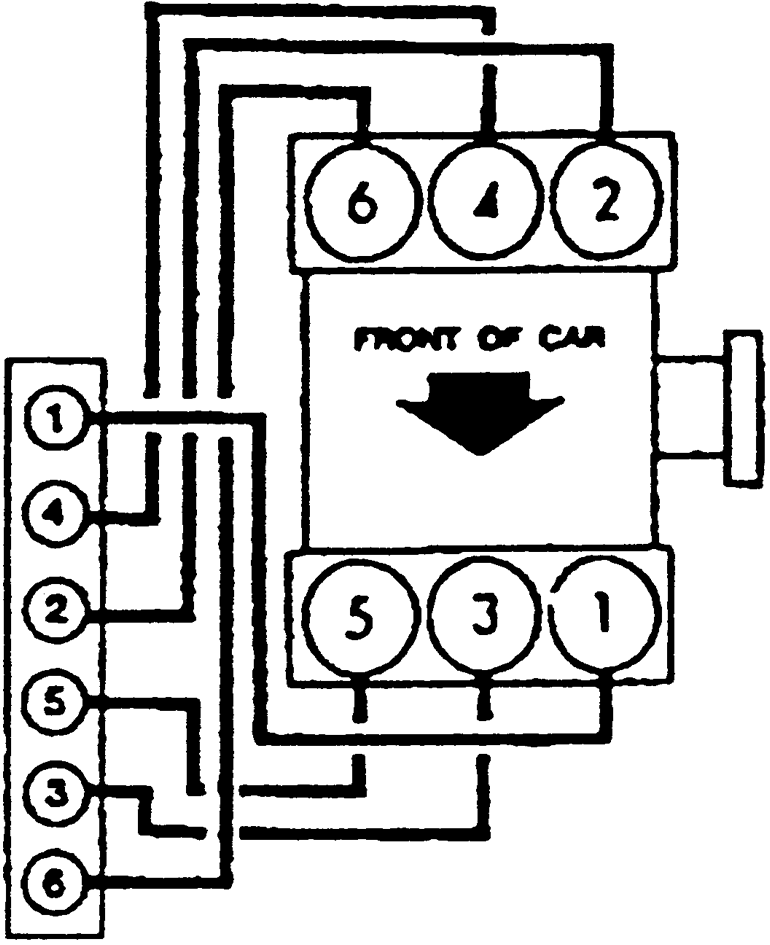

| Fig. 9: 1998–01 3.0L (6G72) and all 3.5L (6G74)
Engines without DIS Firing order: 1–2–3–4–5–6
Distributor rotation: Counterclockwise
|
| Fig. 10: 1998–01 3.0L (6G72) and all 3.5L (6G74)
Engines with DIS Firing order: 1–2–3–4–5–6
Distributorless ignition system
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|

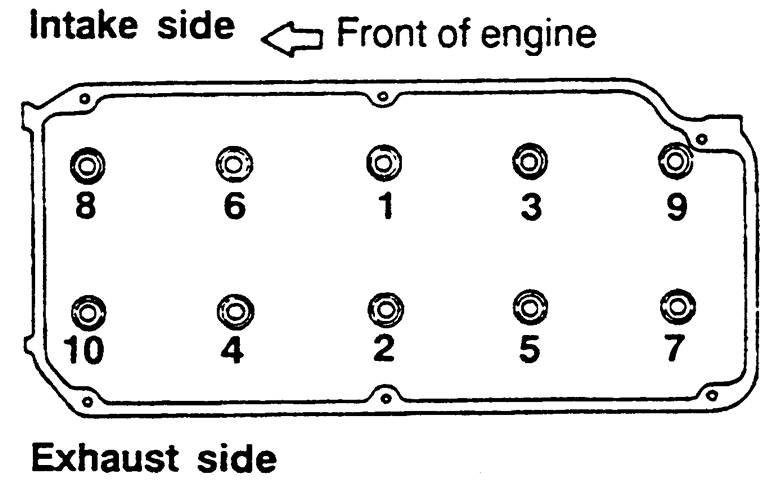

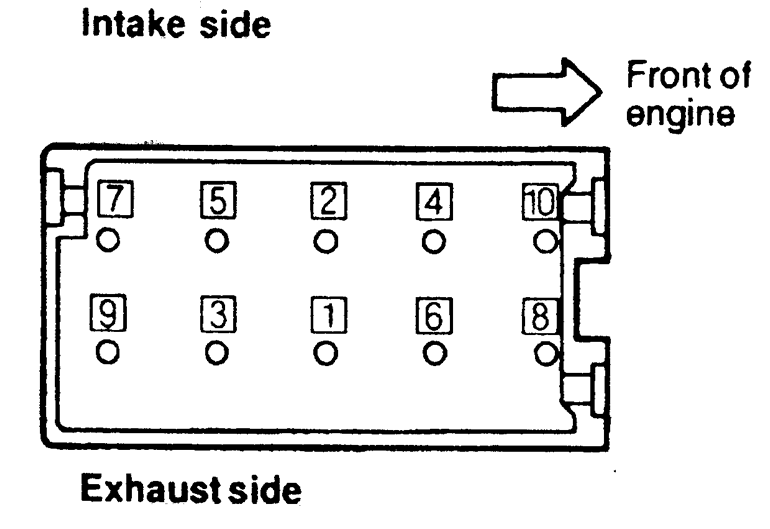

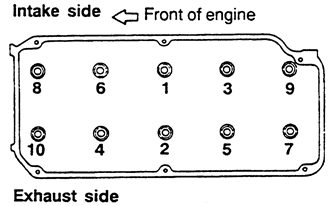

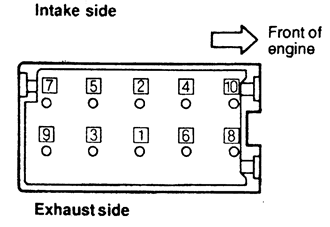

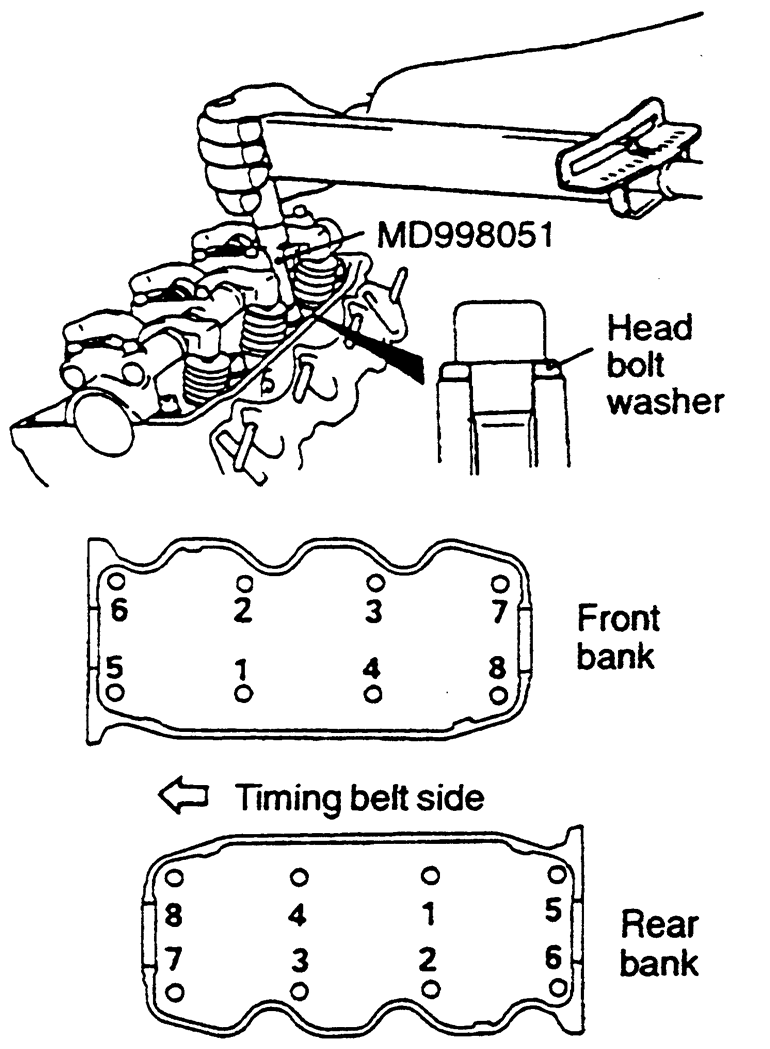

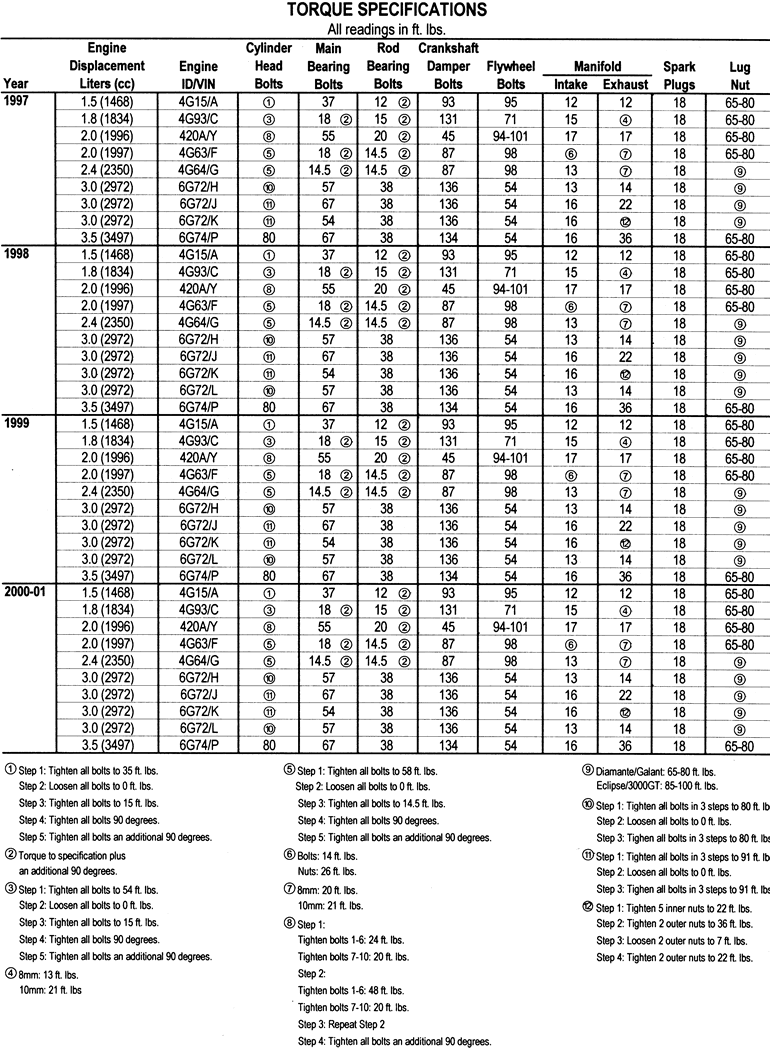

| Fig. 11: Cylinder head bolt torque sequence — Diamante
and 3000GT
|

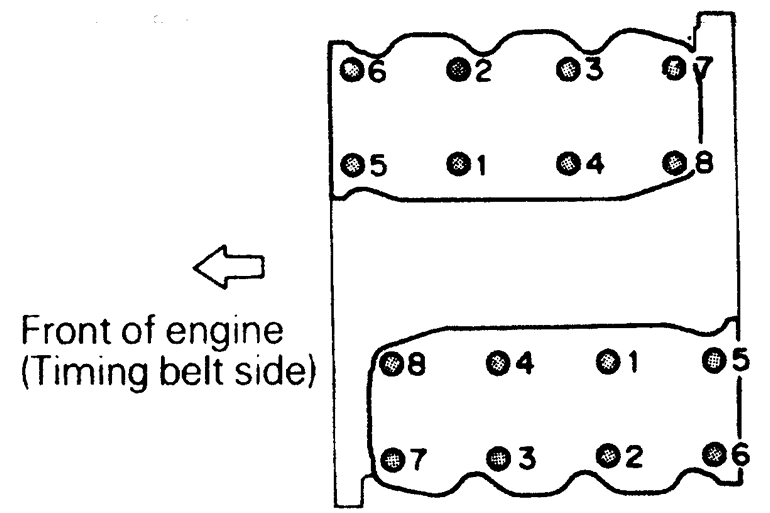

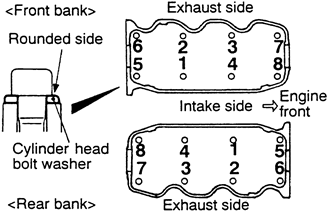

| Fig. 12: Tighten the cylinder head bolts according to
the sequence shown — 3.0L (SOHC and DOHC) engines
|
| Fig. 13: Cylinder head bolt tightening sequence — 3.5L
engine
|

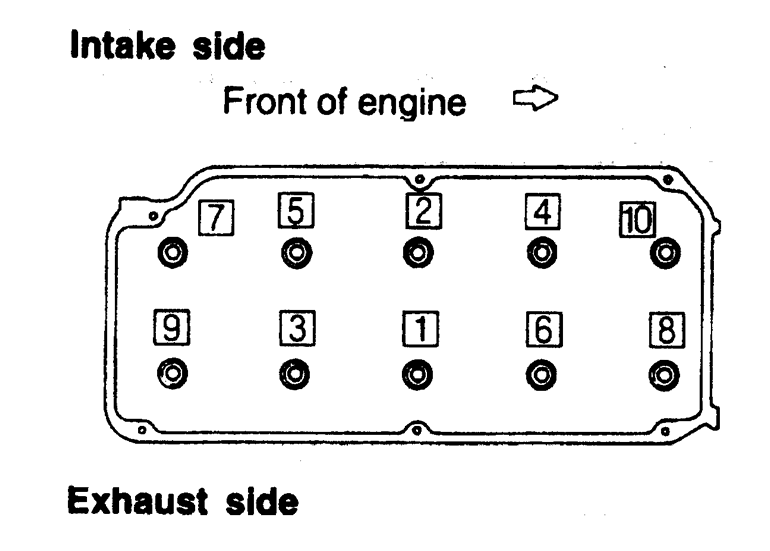

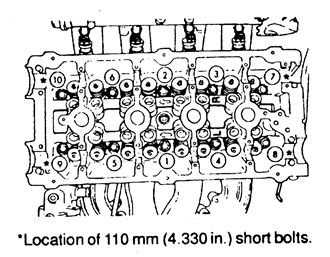

| Fig. 14: Cylinder head bolt torque sequence — 2.0L
(4G63) engine
|
| Fig. 15: Cylinder head bolt torque sequence — 2.0L
(420A) engine
|
| Fig. 16: Cylinder head bolt installation sequence — 2.4L
(4G64) engine
|

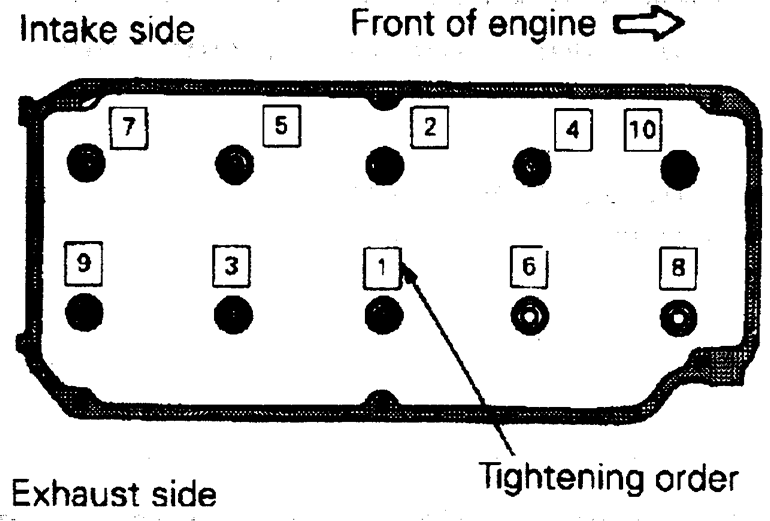

| Fig. 17: Cylinder head bolt tightening sequence — Mirage
with 1.5L (4G15) engine
|
| Fig. 18: Cylinder head bolt torque sequence — 1.8L
engine
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
