CAUTION
The fuel injection system remains under pressure after the engine has been
OFF. Properly relieve fuel pressure before disconnecting any fuel lines.
Failure to do so may result in fire or personal injury.
CAUTION
Do not allow fuel spray or fuel vapors to come in contact with a spark or open
flame. Keep a dry chemical fire extinguisher nearby. Never store fuel in an
open container due to risk of fire or explosion.
- Relieve the fuel system pressure.
- Before servicing the vehicle, refer to the precautions in the beginning
of this section.

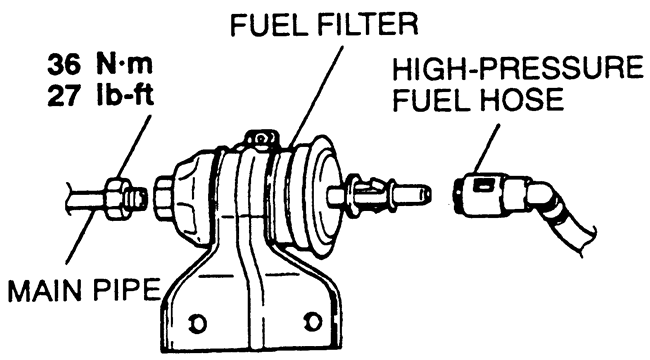

| Fig. 1: Fuel filter removal — Montero
Sport shown
|
- Disconnet the negative battery cable.
- Remove the fuel filter protector if equipped.
- Using a back-up wrench disconnect the fuel line(s) from the filter. If the
filter uses a push-on type connector, press the retainer to release the connection.
- Remove the filter from the mounting bracket.

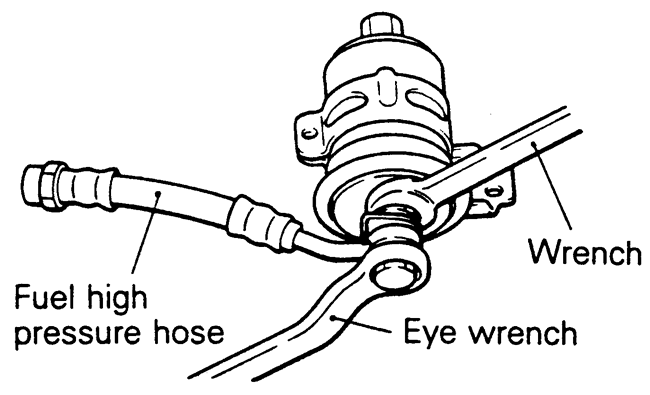

| Fig. 2: Always use a back-up wrench when removing
or installing fuel lines to the filter
|
To install:
- Position the filter to the mounting bracket in the proper direction.
- Connect the fuel lines to the filter. Use a back-up wrench to hold the fuel
filter. Torque the banjo bolt(s) to 18–25 ft. lbs. (25–35 Nm)
or the line fitting to 27 ft. lbs. (36 Nm).
- Install the fuel filter protector if equipped.
- Connect the negative battery cable.
- Start the engine and check for leaks.
