| Fig. 1: 2.4L Engine Firing order: 1–3–4–2 Distributor
rotation: Counterclockwise
|

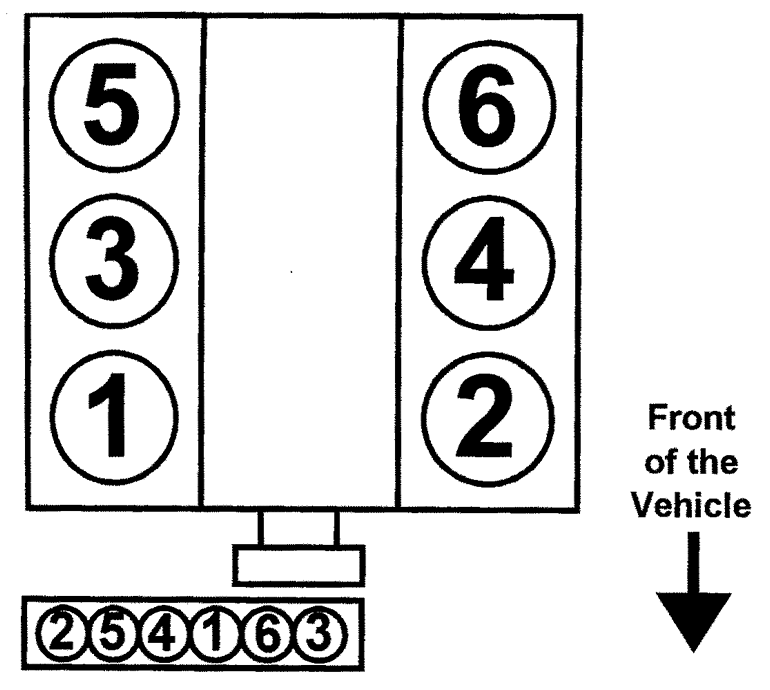

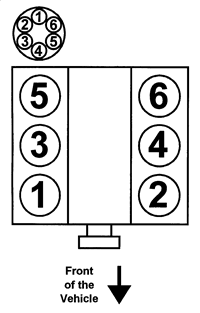

| Fig. 2: 3.0L Engines without DIS Firing order: 1–2–3–4–5–6
Distributor rotation: Counterclockwise
|

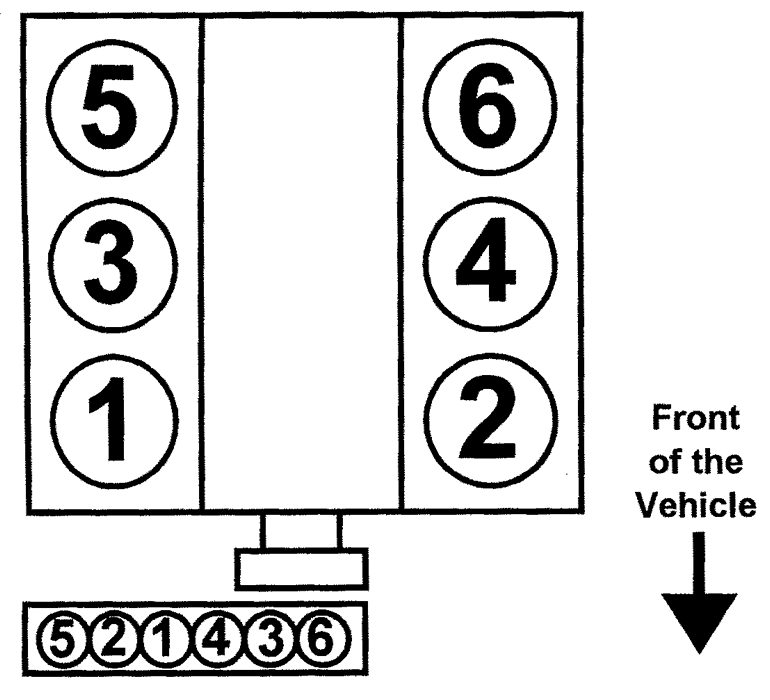

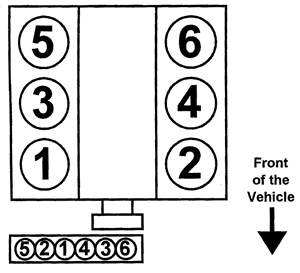

| Fig. 3: 3.0L Engines with DIS Firing order: 1–2–3–4–5–6
Distributorless ignition system
|
| Fig. 4: 3.5L Engine Firing order: 1–2–3–4–5–6 Distributorless
ignition system
|
|
|
|
|
|
|
|
|
|
|

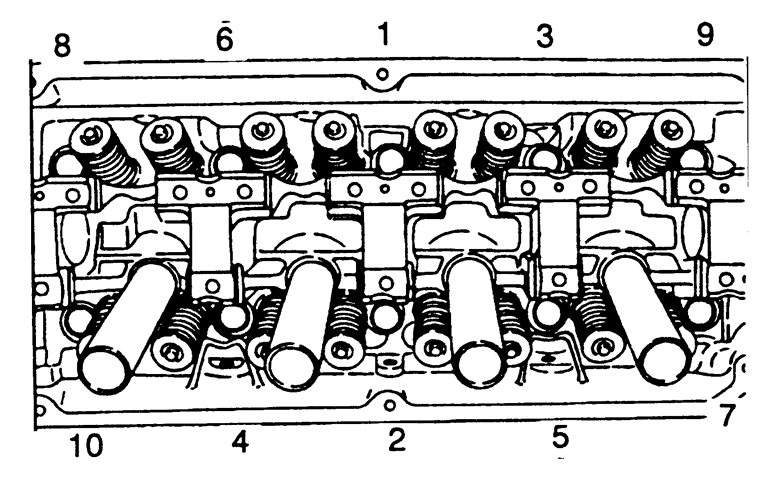

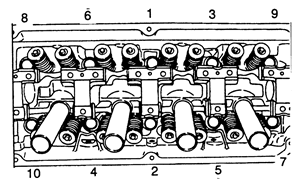

| Fig. 5: Cylinder head bolt tightening sequence —
2.4L engines
|

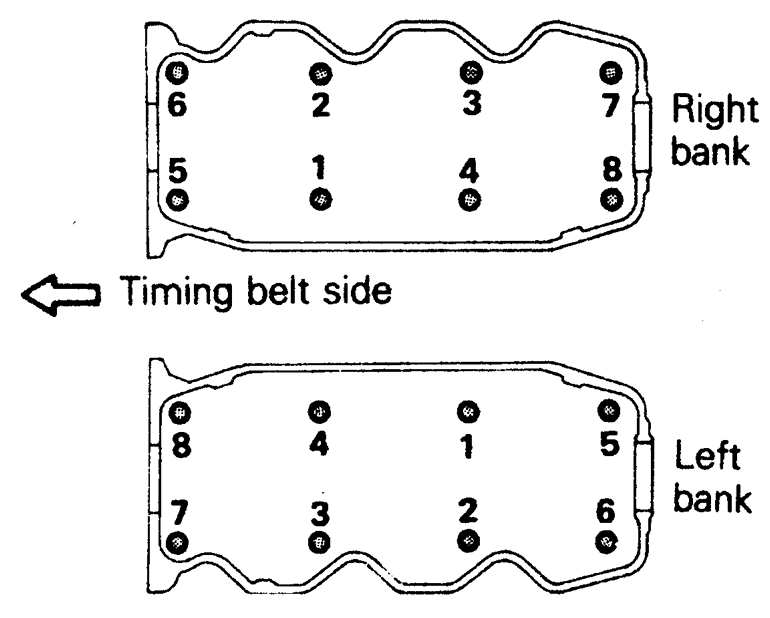

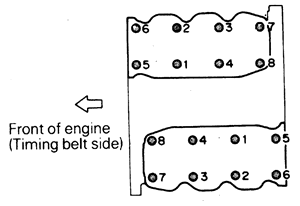

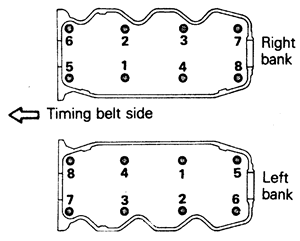

| Fig. 6: Cylinder head bolt tightening sequence —
3.0L engines
|
| Fig. 7: Cylinder head bolt tightening sequence —
3.5L engines
|
|
|
|
|
|
|
|
|
|
|
