Air Conditioning Control Unit Assembly

Removal & Installation

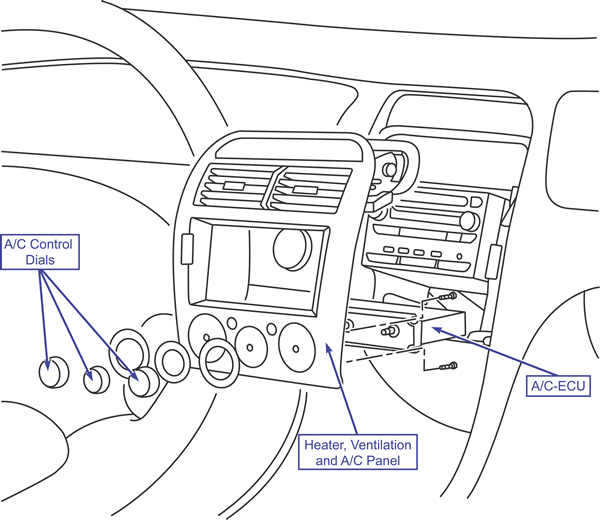

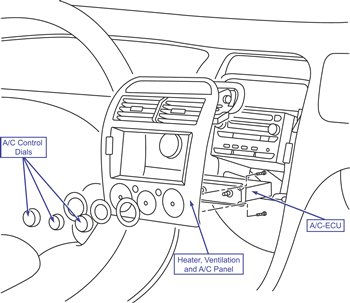

To Remove:

1. Remove the floor console panel and the center air outlet and ashtray.
2. Remove the heater, ventilation, and A/C panel.
3. Remove the A/C control dials.
4. Remove the A/C-ECU.

To Install:

1. Install the A/C-ECU.
2. Install the A/C control dials.
3. Install the heater, ventilation, and A/C panel.
4. Install the floor console panel and the center air outlet and ashtray.
