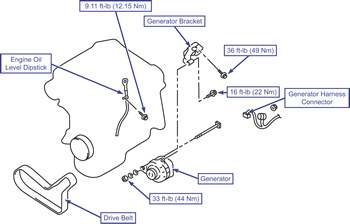

Removal & Installation

To Remove:

1. Disconnect the negative battery cable.
2. Remove the Drive Belt.

3. Disconnect the generator harness connector connection.
4. Remove the dipstick.
5. Remove the generator.
6. Remove the generator bracket.

To Install:

1. Install the generator bracket and the generator.

2. Install the dipstick.
3. Connect the generator harness connector connection.
4. Install the Drive Belt.
5. Connect the negative battery cable.
6. Adjust the drive belt tension.
